Part Number: CM-MSS.11S
Manufacturer Code: 1SVR730720R1400
Multiples of: 1 | Minimum Order: 1

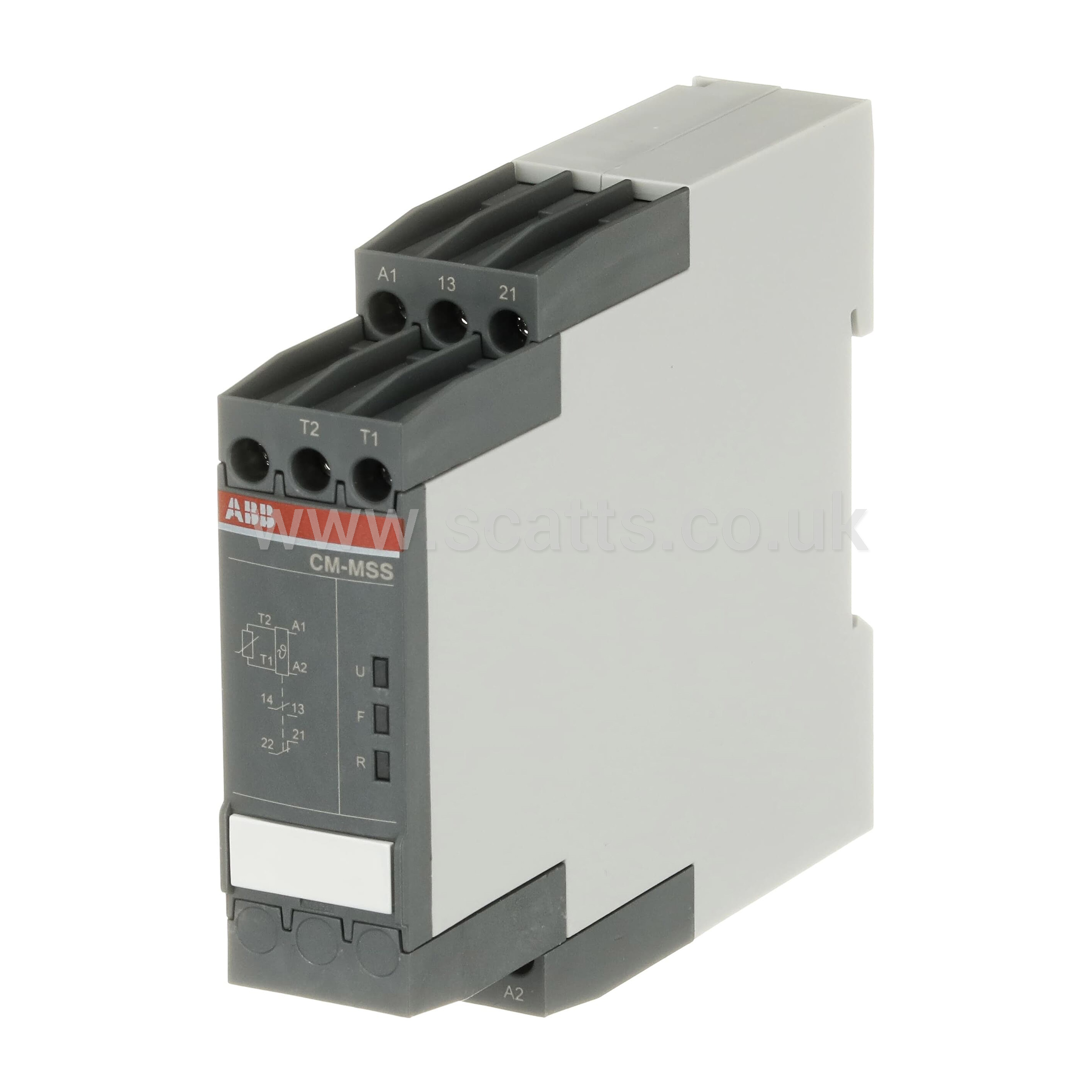

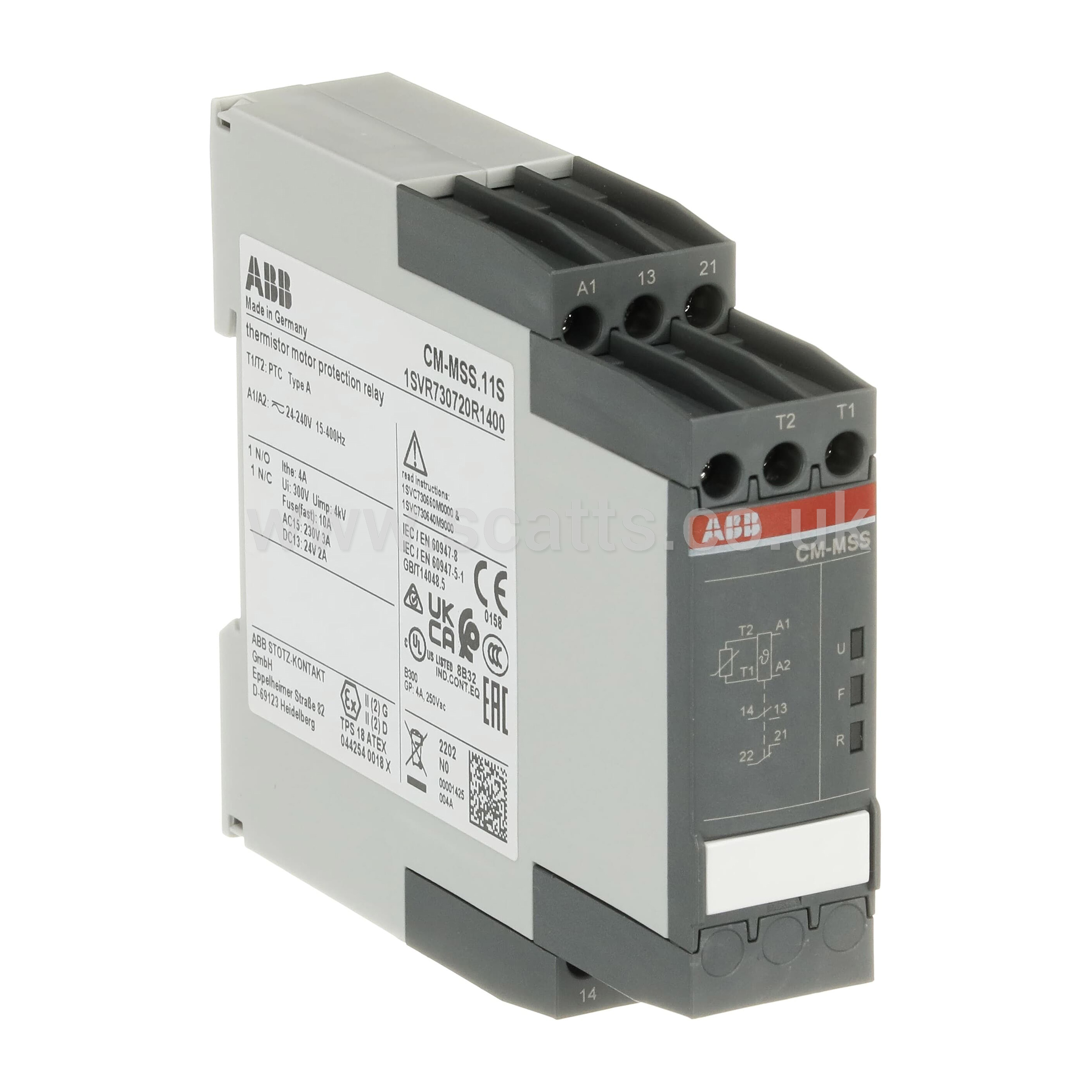

The CM-MSS.11S belongs to the CM-MSS thermistor motor protection relay range. It operates with a rated control supply voltage of 24 - 240 V AC / DC and has a 1 n/c + 1 n/o (SPDT) output with contacts rated at 250 V / 4 A. It features one sensor circuit to monitor PTC temperature sensors and works according to the closed-circuit principle. The sensor circuit of the CM-MSS.11S is interrupted-wire monitored and the relay will be reset automatically after the failure has been removed. This protection relay is certified according to the ATEX directive 94/9/EC. The device offers screw connection technology with double-chamber cage connection terminals.
Technical
Function: 1 sensor circuit, Non-volatile fault storage, Dynamic interrupted wire detection, Auto reset, ATEX approved
Rated Control Supply Voltage (Us): 24 ... 240 V AC/DC
Rated Operational Voltage: Auxiliary Circuit 250 V AC
Rated Frequency (f): Supply Circuit 15 ... 400 Hz
Output: 1 N/O, 1 N/C Contact
Terminal Type: Screw Terminals
Rated Operational Current AC-12 (Ie): (230 V) 4 A
Rated Operational Current AC-15 (Ie): (230 V) 3 A
Rated Operational Current DC-12 (Ie): (24 V) 4 A
Rated Operational Current DC-13 (Ie): (24 V) 2 A
Minimum Switching Capacity: 24 V, 10 mA
Rated Impulse Withstand Voltage (Uimp): Output Circuit 1 / Output Circuit 2 4 kV, Output Circuit 4 kV
Rated Insulation Voltage (Ui): Measuring Circuit / Output Circuit 300 V, Output Circuit 1 / Output Circuit 2 300 V, Supply Circuit / Measuring Circuit 300 V, Supply Circuit / Output Circuit 300 V
Degree of Protection: Housing IP50, Terminals IP20
Overvoltage Category: III
Pollution Degree: 3
Short-Circuit Protective Devices: Output Circuit NC - F Type Fuses 10 A, Output Circuit NO - F Type Fuses 10 A
Electrical Durability: AC-12 100000 cycle
Mechanical Durability: Nr. Operations 30000000 cycle
Connecting Capacity: Flexible 1x 0.5 ... 2.5 mm², Flexible 2x 0.5 ... 1.5 mm², Rigid 1x 0.5 ... 4 mm², Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque: 0.6 ... 0.8 N·m
Wire Stripping Length: 8 mm
Recommended Screw Driver: 0.8 x 4, 4.5, Pozidriv 1
Mounting Position: 1 ... 6
Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards: CAN/CSA C22.2 No.14, EN 50495, IEC/EN 63000, IEC/EN 60079-7, IEC/EN 60947-5-1, IEC/EN 60947-8, UL 508
