Part Number: BWU2766
Multiples of: 1 | Minimum Order: 1

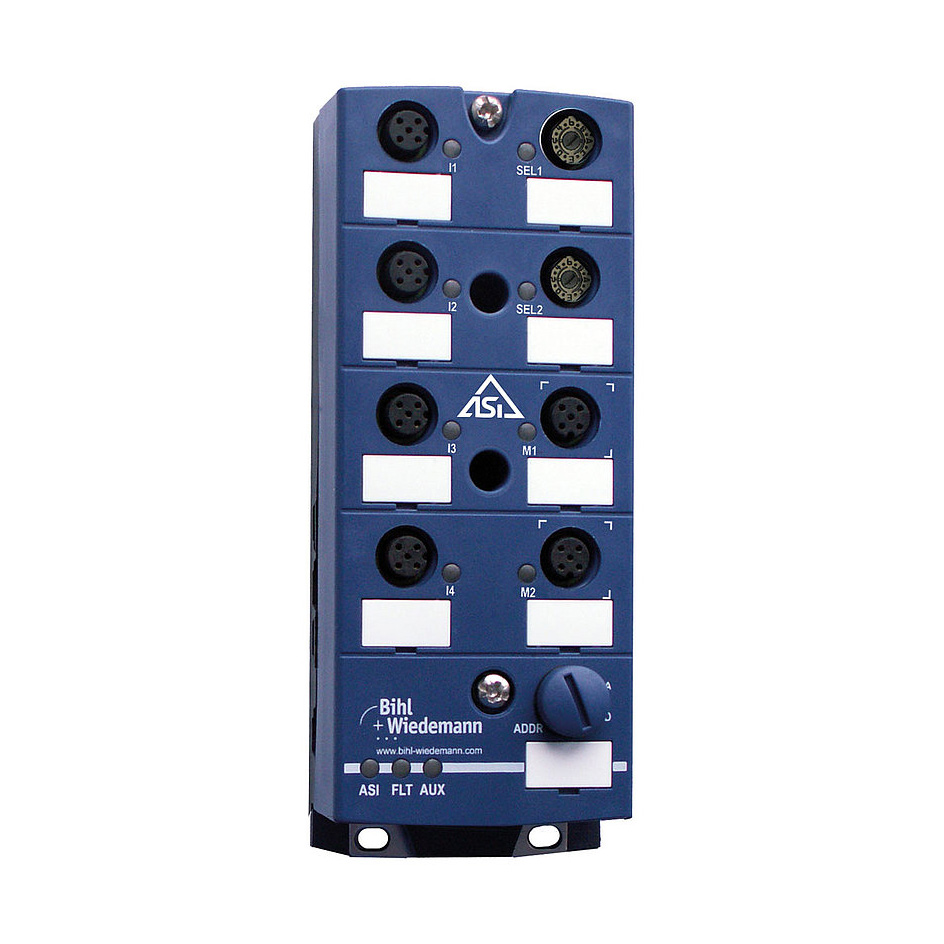

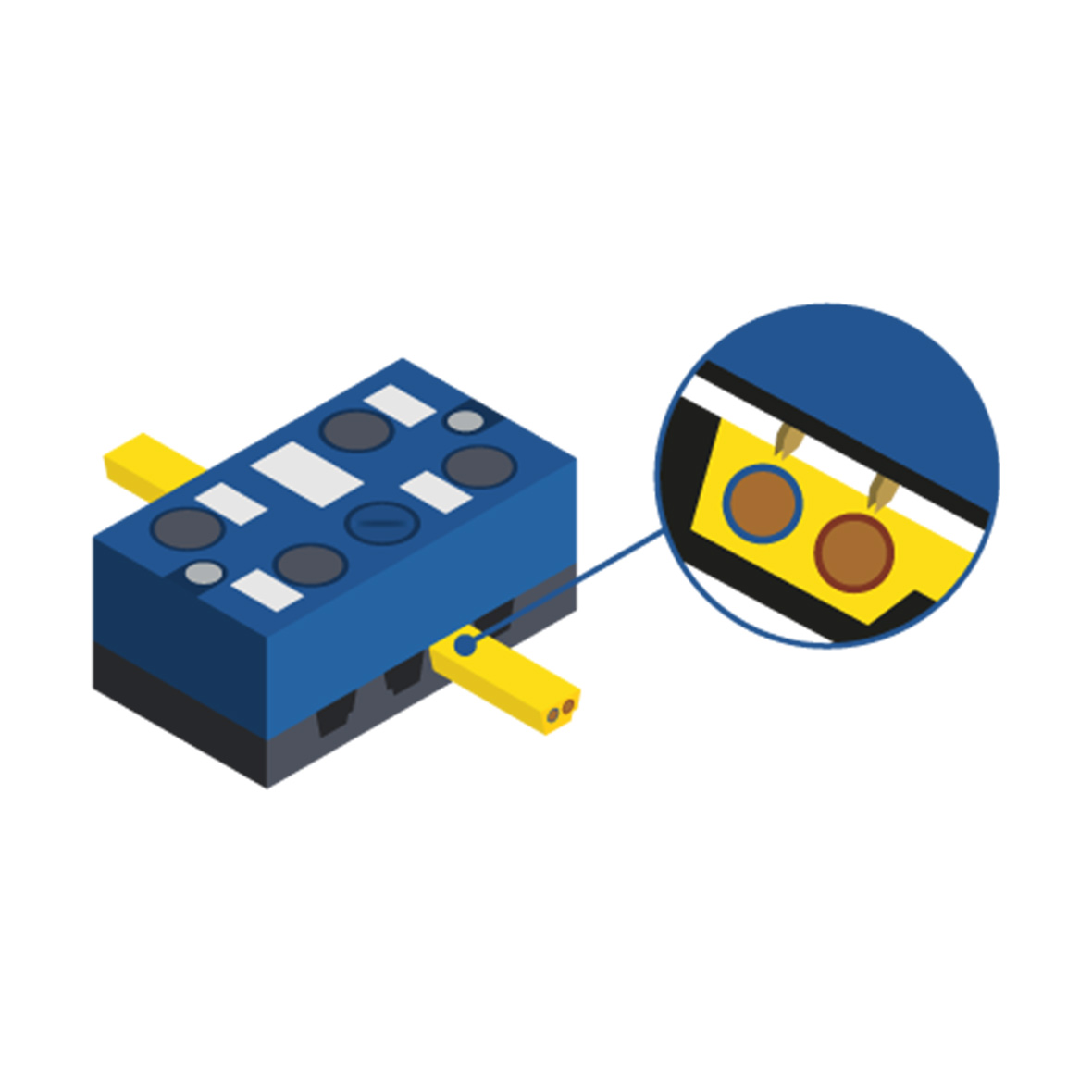

ASi Motor Module in IP67, with 6 x M12 sockets for 2 x 24 V motorized rollers Interroll (EC310, EC5000 AI) or RULMECA (RDR BL-2) or Itoh Denki (PM500XC/XK, PM500XE/XP, PM605XE/XP), 4 digital inputs, motor control supply via AUX, input voltage/sensor supply out of ASi, internal line protection, separately for each motor 4,5 A (slow-blow fuse), periphery connection via 6 x M12 sockets, 5 poles, ASi connection via profile cable and piercing technology, 1 single address + 1 AB address.
In the motor module UL approved fuses are placed before each of the motor supply connections. A short circuit in the motor causes this fuse to blow, protecting the connection cable between the module and motor.
After blowing the fuse the module is no longer functional and needs to be replaced. The characteristics of the fuse must be checked against the motor data before using the module.
The protection circuit in the module allows a very simple protection of the motor cables. The fuse for the cable protection is a slow-blow one; without short circuit the robust behavior of the module remains
Brand |
BIHL & WIEDEMANN |
|
£144.55
per 1 (ex. VAT)£173.46
per 1 (inc. VAT)
