My Part Number:
Part Number: BWU3632
Multiples of: 1 | Minimum Order: 1
Active Distributor ASi, IP67, 4I
Active Distributor ASi, IP67, housing depth 35 mm, 4 digital inputs, input voltage/sensor supply out of ASi, periphery connection via 4 x M12 cable sockets, straight, 5 poles, single wiring, cable length 0,3 m, flat design, installation in cable duct possible (installation depth ≥ 35 mm), LED, connection for 1 x ASi profile cable, ASi connection via profile cable and piercing technology, 1 AB address
Inputs digital: 4
Outputs digital: no digital outputs
Input voltage (sensor supply): out of ASi
Output voltage (actuator supply): no output voltage

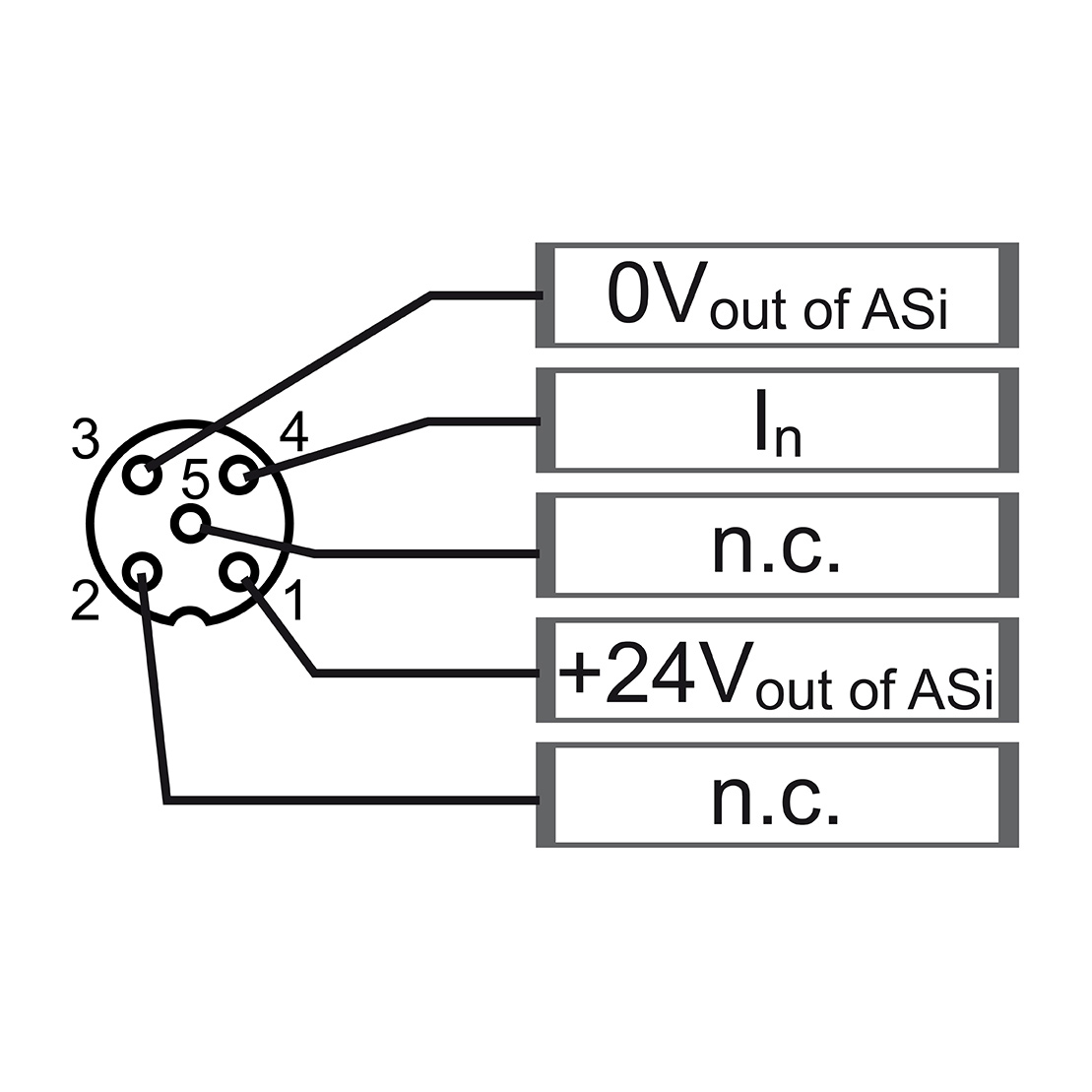

Connection: 4 x M12 cable sockets, straight, 5 poles
Round cable: 0,30 m

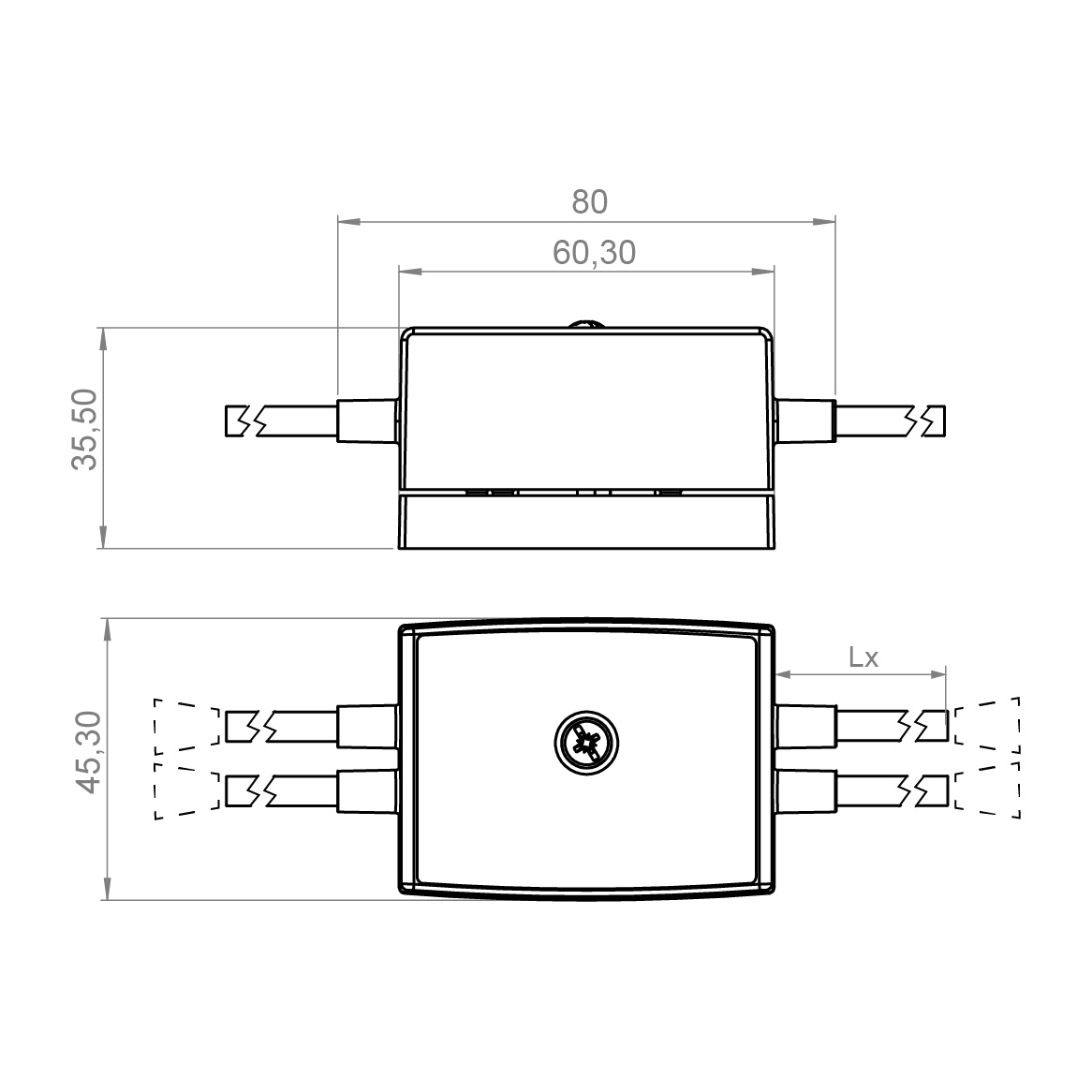

Flat design, installation in cable duct possible: yes, depth: 35 mm
ASi address: 1 AB address
Brand |
BIHL & WIEDEMANN |
|
