My Part Number:
Part Number: BWU3642
Multiples of: 1 | Minimum Order: 1
Active Distributor ASi, IP67, 2I

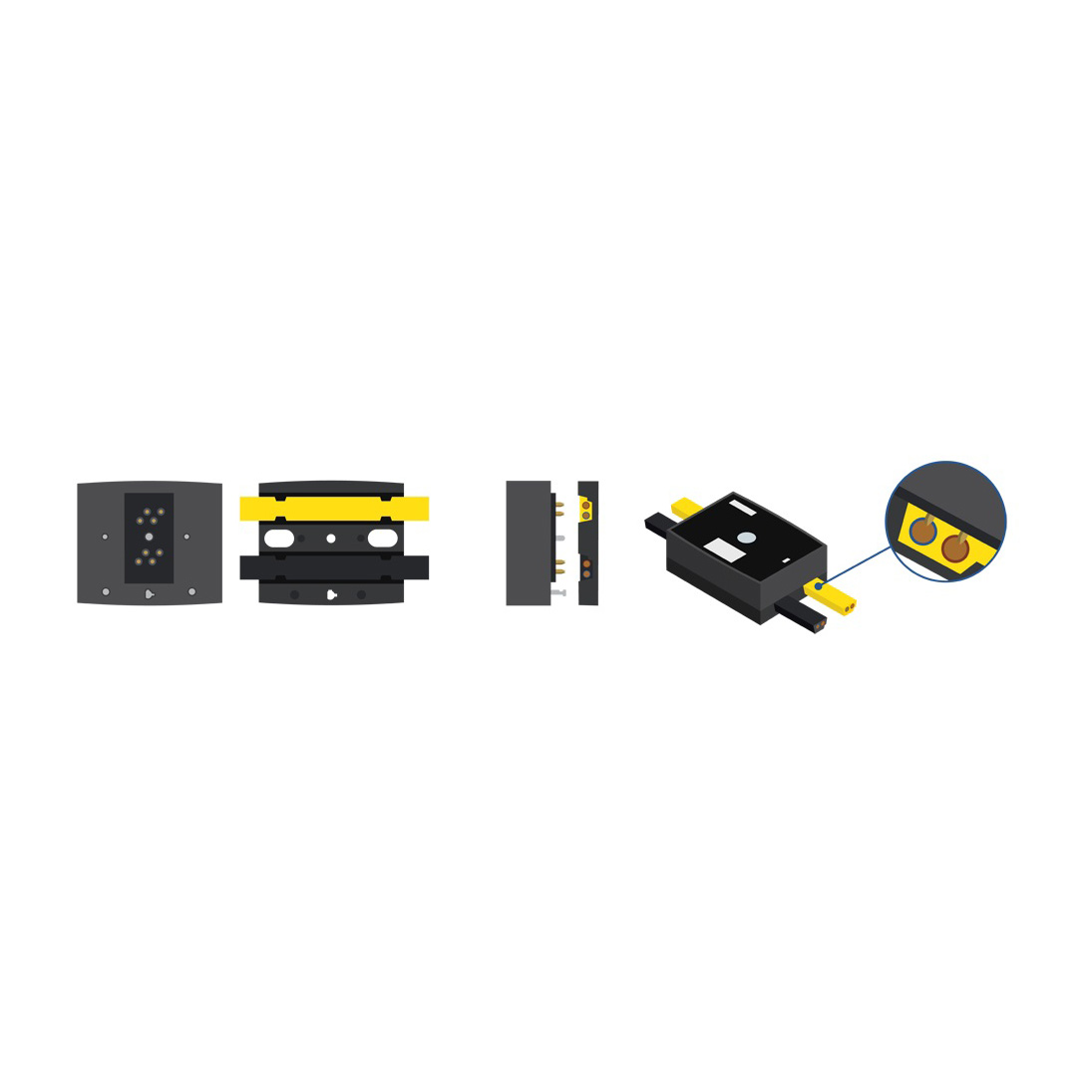

Active Distributor ASi, IP67, housing depth 19 mm, 2 digital inputs, input voltage/sensor supply out of ASi, periphery connection via 1 x M12 cable socket, angled, 5 poles, Y wiring, cable length 1 m, flat design, installation in cable duct possible (installation depth >19 mm), LED, connections for 1 x ASi profile cable, ASi connection via profile cable and piercing technology, 1 AB address
Inputs digital: 2
Outputs digital: no digital outputs
Input voltage (sensor supply): out of ASi
Output voltage (actuator supply): no output voltage

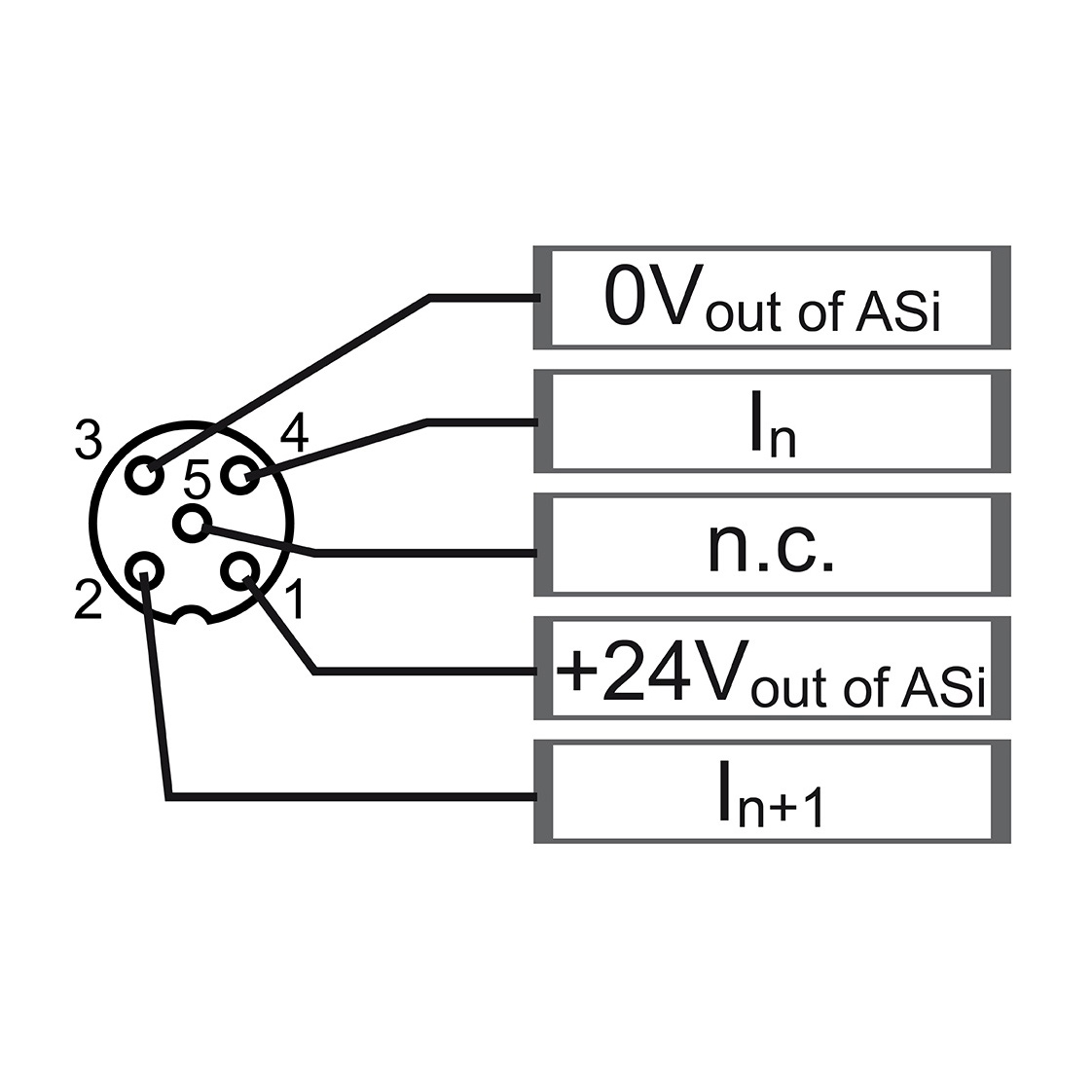

Connection: 1 x M12 cable socket, angled, 5 poles
Round cable: 1 m

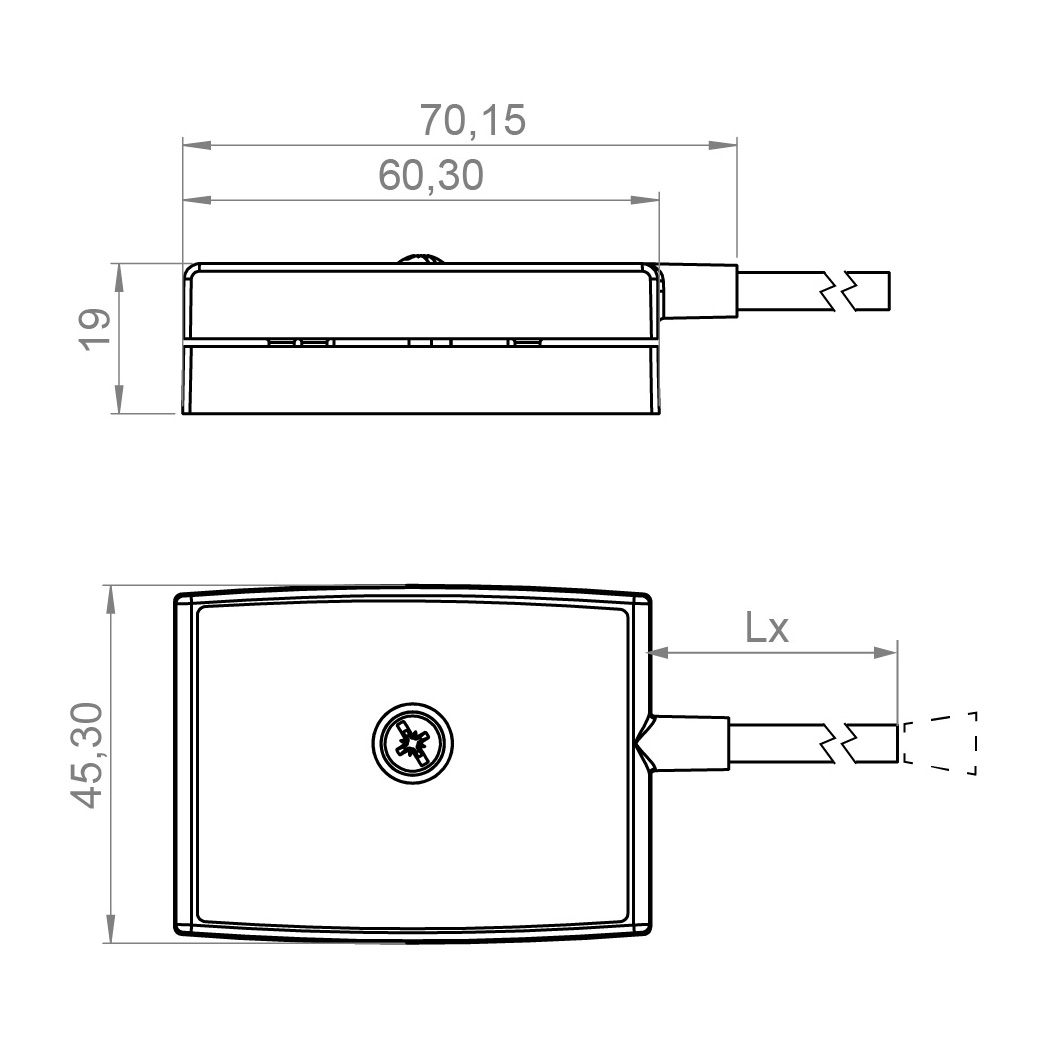

Flat design, installation in cable duct possible: yes, depth: 19 mm
ASi address: 1 AB address
Special function: no special function
Brand |
BIHL & WIEDEMANN |
|
£57.27
per 1 (ex. VAT)£68.72
per 1 (inc. VAT)
