Part Number: BWU3862
Multiples of: 1 | Minimum Order: 1
ASi-5/ASi-3 PROFIsafe via PROFINET Gateway with integrated Safety Monitor, 1 ASi-5/ASi-3 master
• ASi-5 – Great data bandwidth, short cycle times
• PLC Independent Safety Technology
• Safe Link
• OPC UA interface and integrated web server for simple diagnostics and maintenance
ASi-5/ASi-3 PROFIsafe via PROFINET Gateway with integrated Safety Monitor, 1 ASi-5/ASi-3 master, OPC UA server, integrated decoupling, max. 4 A per ASi circuit, ASi current measurement in the gateway, 6 digital inputs or 3 x 2 channels safe inputs (SIL 3, cat. 4), expandable to max. 31 x 2 channels safe inputs, 1891 x 2 channels safe inputs in max. configuration, 6 release circuits (6 x electronic safe outputs), expandable to max. 64 safe outputs, 1984 safe outputs in max. configuration, PROFIsafe (F-CPU) and Safe Link, diagnostic and configuration via PROFINET or Ethernet diagnostic interface, duplicate address recognition, ASi fault detector, programming in C optional, IP20.
Technical data
Fieldbus interface: PROFINET, OPC UA
Safety communication: PROFIsafe (F-CPU) + Safe Link
Inputs Safety, SIL 3, Cat. 4: 3 x 2 channels

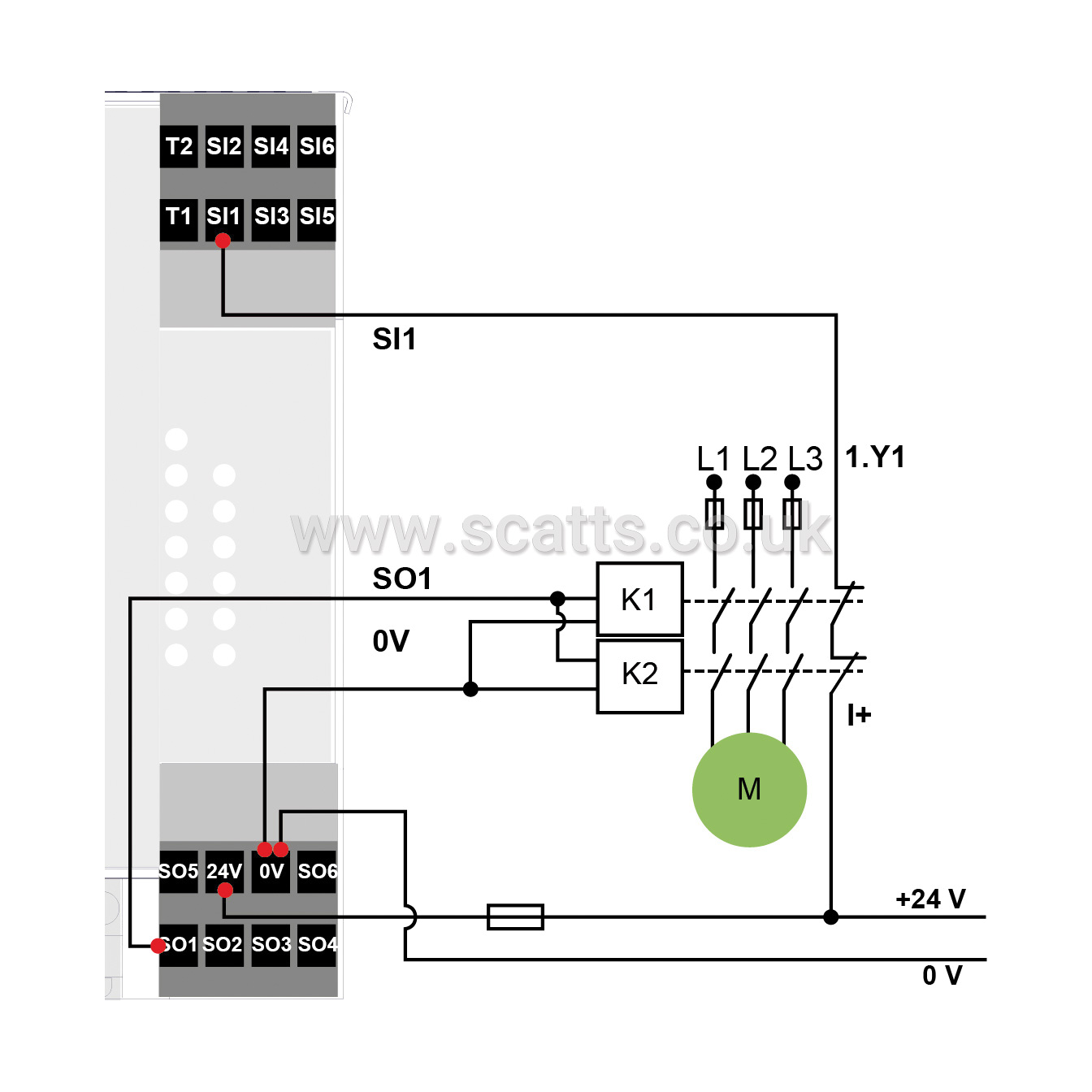

Outputs Safety, SIL 3, cat. 4: 6 release circuits, 6 x electronic safe outputs
ASi-5/ASi-3: ASi-5 + ASi-3 compatible
Number of ASi networks, number of ASi Master: 1 ASi network, 1 ASi-5/ASi-3 Master
Integrated decoupling, ASi current measurement in the gateway: yes, max. 4 A/ASi network
Brand |
BIHL & WIEDEMANN |
|
£1,170.00
per 1 (ex. VAT)£1,404.00
per 1 (inc. VAT)
