ASI5/3 CIPE SAFETY EIP

ASi-5/ASi-3 CIP Safety™ over EtherNet/IP™ + ModbusTCP Gateway with integrated ASi-5/ASi-3 Safety Monitor, 1 ASi-5/ASi-3 master


• ASi-5 – Great data bandwidth, short cycle times
• PLC Independent Safety Technology

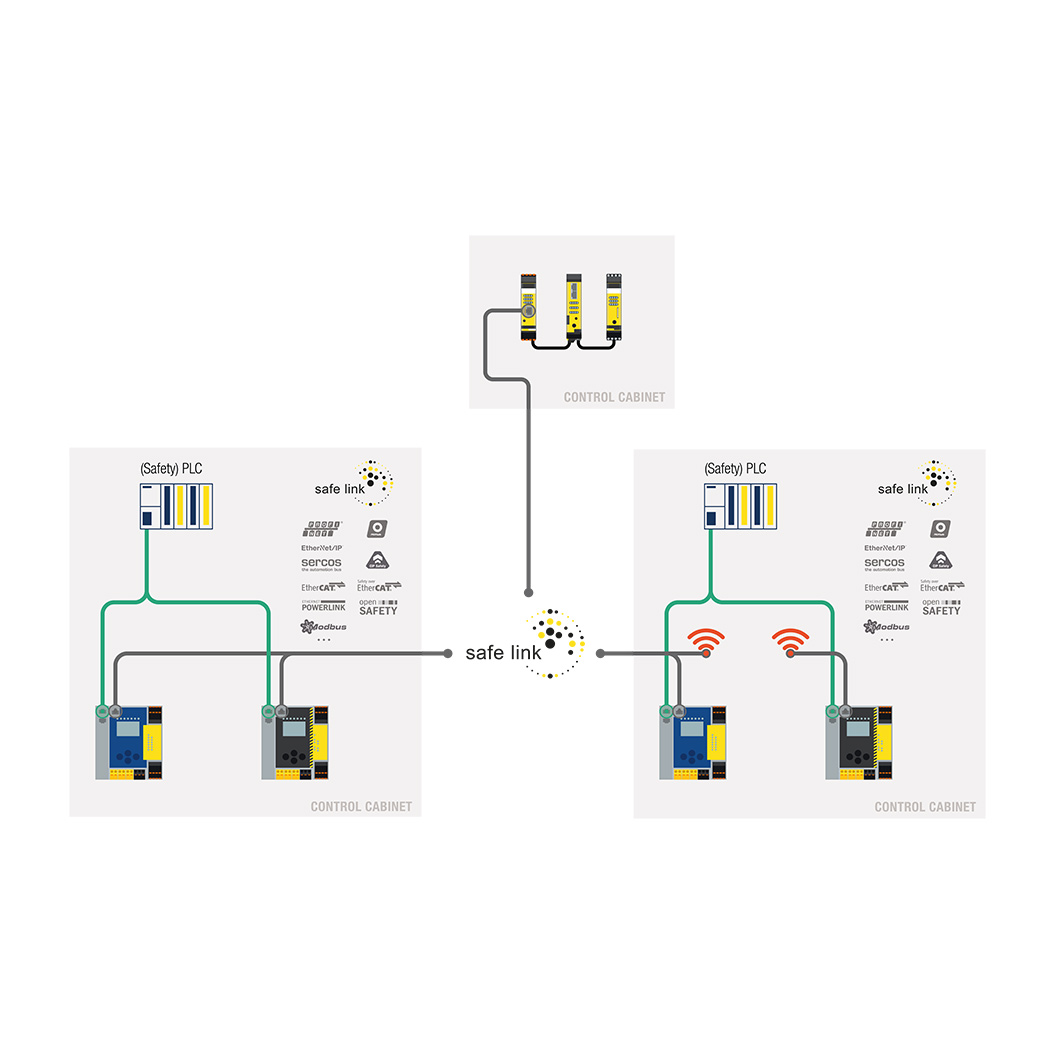

• Safe Link

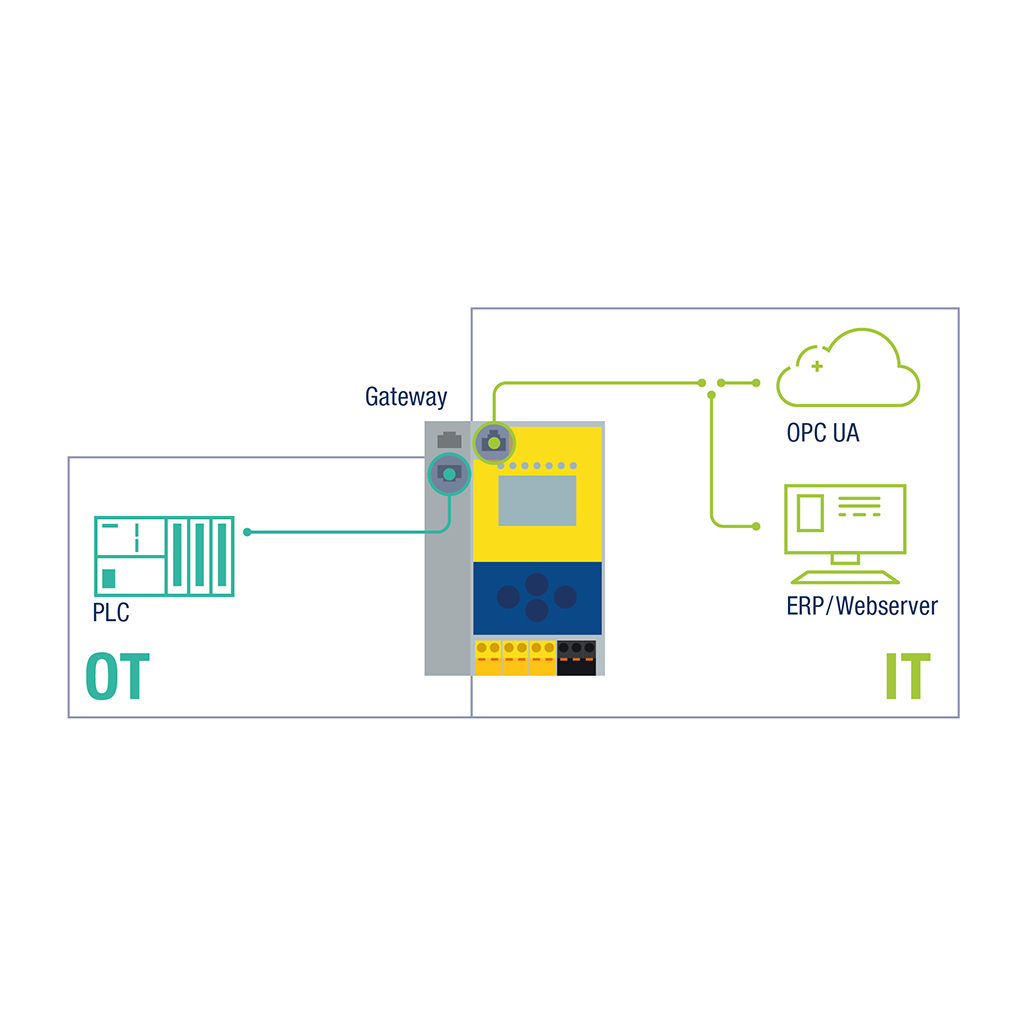

• OPC UA interface and REST API for IIoT applications
• Integrated web server for simple diagnostics and maintenance


ASi-5/ASi-3 CIP Safety™ over EtherNet/IP™ + ModbusTCP Gateway with integrated ASi-5/ASi-3 Safety Monitor, 1 ASi-5/ASi-3 master, OPC UA server, REST API, integrated decoupling, max. 4 A per ASi circuit, ASi current measurement in the gateway, expandable to max. 62 x 2 channels safe inputs, 1922 x 2 channels safe inputs in max. configuration, expandable to max. 64 safe outputs, 1984 safe outputs in max. configuration, CIP Safety via EtherNet/IP and Safe Link, diagnostic and configuration via Ethernet/IP + Modbus TCP or Ethernet diagnostic interface, duplicate address recognition, ASi fault detector, programming in C optional, IP20
