ACTIVE DIST SAFETY 1SI/1I/1O

Active Distributor ASi Safety, IP67, 1SI/1I/1O

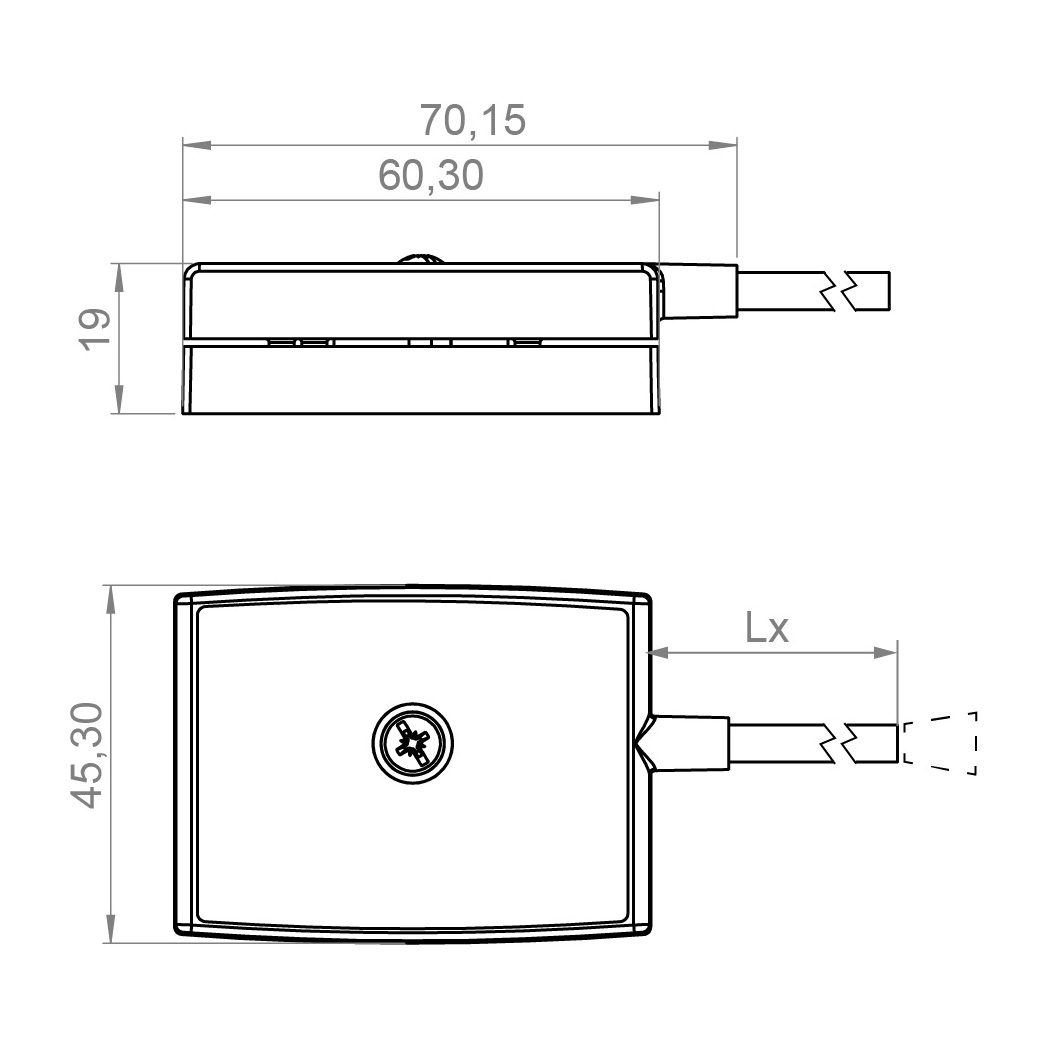

Active Distributor ASi Safety, IP67, housing depth 19 mm, 1 x 2 channels safe input (SIL 3, cat. 4) for OSSDs, 1 digital input, 1 digital output, input voltage/sensor supply out of AUX, output voltage/actuator supply out of AUX, periphery connection via 1 x M12 cable socket, straight, 8 poles, cable length 1 m, flat design, installation in cable duct possible (installation depth ≥ 19 mm), connections for 1 x ASi and 1 x AUX profile cables, ASi connection via profile cable and piercing technology, 1 single address
To connect Keyence GS-71PC / GS-11PC / GS-M51P / GS-ML51P / GS-M91P or Sick MLP1-SMMF0AC to ASi.


Technical data

Inputs Safety: 1 x 2 channels
Safety signal inputs: OSSDs
Outputs digital: 1 x electronic
Input voltage (sensor supply): out of AUX
Output voltage (actuator supply): out of AUX

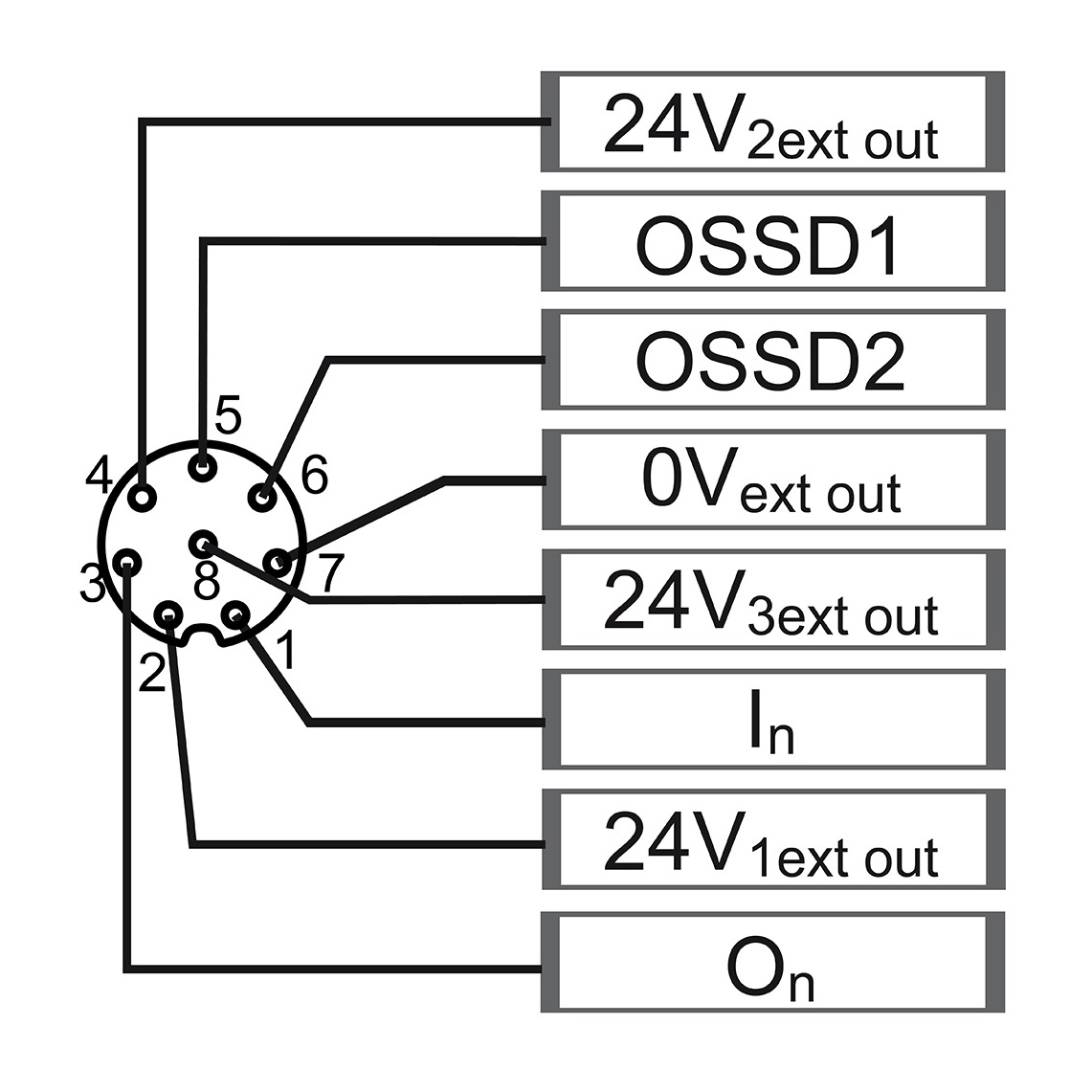

Connection: 1 x M12 cable socket, straight, 8 poles
Round cable: 1 m
Special function: to connect Keyence GS-71PC / GS-11PC / GS-M51P / GS-ML51P / GS-M91P to ASi, to connect Sick MLP1-SMMF0AC to ASi
