My Part Number:
Part Number: 2000A/178676
Manufacturer Code: 00178676
Multiples of: 1 | Minimum Order: 1

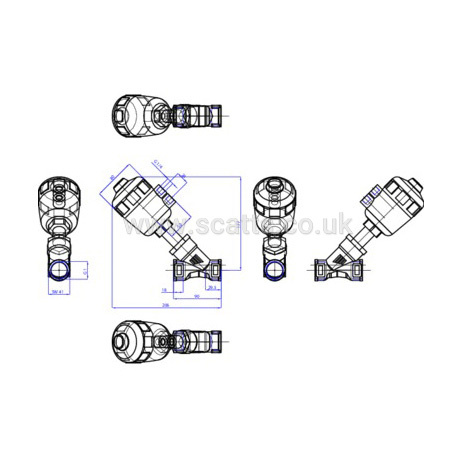

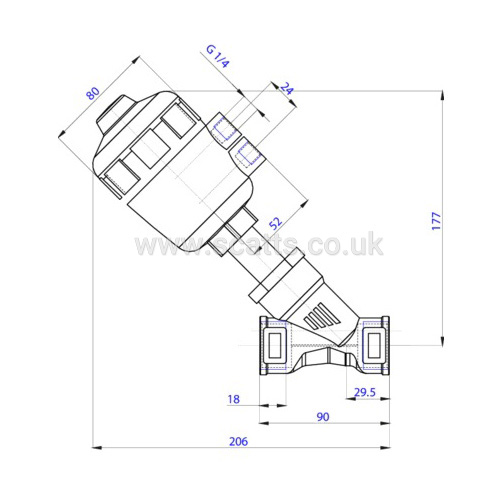

2/2-way angle seat valve, pneu. operated
• Stainless steel or gunmetal housing with sleeve, clamped or welded connection
• Long service life
• High flow rate
• Robust actuators with modular accessory program
The externally piloted angle seat valve is operated with a single or double–acting piston actuator. The actuator is available in two different materials, depending on the ambient temperature. High flow rates are attained with the virtually straight flow path. The reliable self–adjusting packing gland provides high sealing integrity. These maintenance-free and robust valves can be retrofitted with a comprehensive range of accessories for position indication, stroke limitation or manual override.
Brand |
BURKERT FLUID CONTROLS |
|
Height |
90 mm |
|
Width |
63 mm |
Body Material |
Gunmetal, PA |
|
Acceptable Media |
Gas, Liquid |
|
Wetted Parts |
Gunmetal, Stainless Steel |
|
Seal Material |
PTFE |
|
Orifice Size |
25 mm |
|
Process Connection |
G1" Female |
|
Min OperatingPressure |
0 bar |
|
Max Operating Pressure |
11 bar |
|
Maximum Ambient Temperature |
60 °C |
|
Maximum Media Temperature |
180 °C |
|
£205.00
per 1 (ex. VAT)£246.00
per 1 (inc. VAT)
