My Part Number:
Part Number: GHG41182/SJ20
Manufacturer Code: GHG4118201R1308 / EX412/SJ20
Multiples of: 1 | Minimum Order: 1

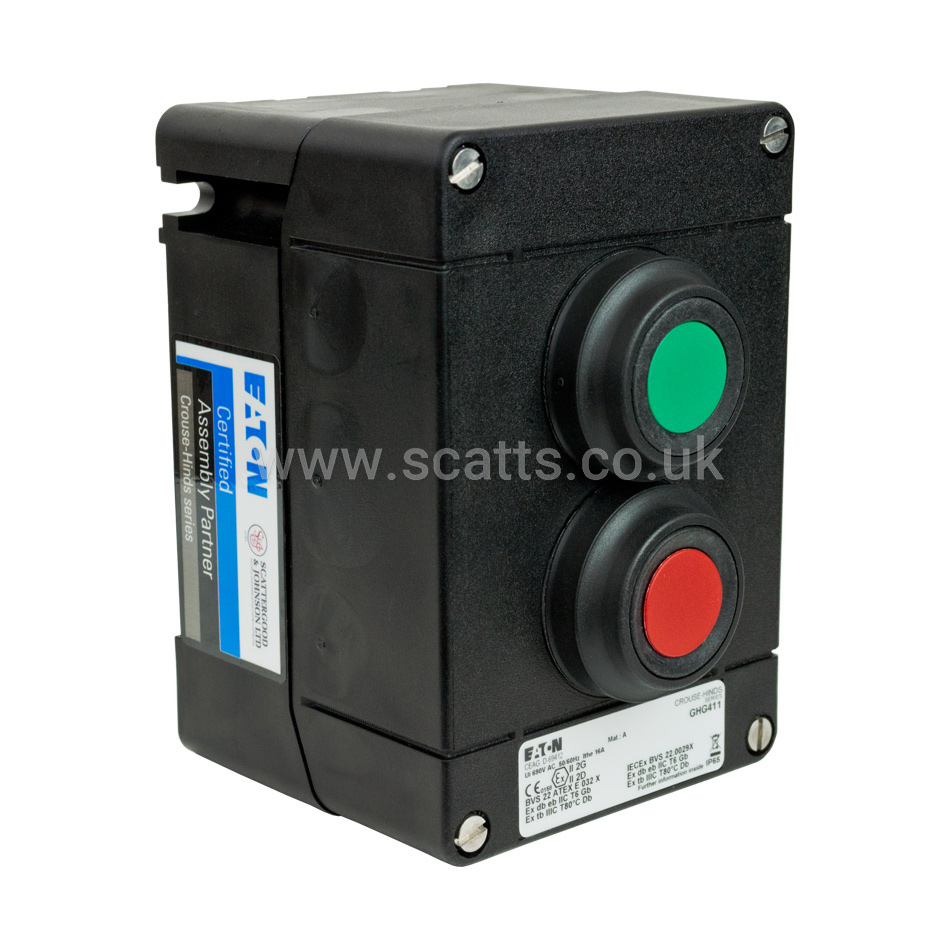

SERIES EX41, GHG41, EX CONTROL STATION - MOMENTARY PUSH BUTTONS, START/STOP, 1NO, 1NC FOR ZONES 1 & 2
Brand |
CEAG CROUSE HINDS |
|
Height |
125 mm |
|
Width |
85 mm |
|
Depth |
92 mm |
|
Weight |
0.54 kg |
|
IP Rating |
IP66 |
|
Body Material |
Polyamide |
|
Minimum Operating Temperature |
-20 °C |
|
Maximum Operating Temperature |
40 °C |
ATEX Approval - Gas |
Ex ed IIC T6 |
|
Hazadrous Area Certification |
1, 2 |
|
Approvals |
ATEX, IECEx |
ATEX Certificate Number |
IECEx BKI 04.0003, PTB00ATEX3117 |
|
Cable Entry Method |
Direct |
|
Control Contacts |
1 x NC, 1 x NO |
|
Control Contacts B |
1 x NC, 1 x NO |
|
Control Function |
Start |
|
Control Function B |
Stop |
|
Control Operation |
Momentary |
|
Control Operation B |
Momentary |
|
Switch Rating |
AC15, DC13 |
|
Switching Current |
6 A |
|
Colour |
Black |
|
Cable Entries |
1 x M20 |
|
Maximum Conductor Size |
2 x 2.5 mm² |
|
£330.89
per 1 (ex. VAT)£397.07
per 1 (inc. VAT)SERIES EX41, GHG41, EX CONTROL STATION - MOMENTARY PUSH BUTTONS, START/STOP, 1NO, 1NC FOR ZONES 1 & 2
