Part Number: 9000.24/10
Manufacturer Code: 3201004
Multiples of: 1 | Minimum Order: 1

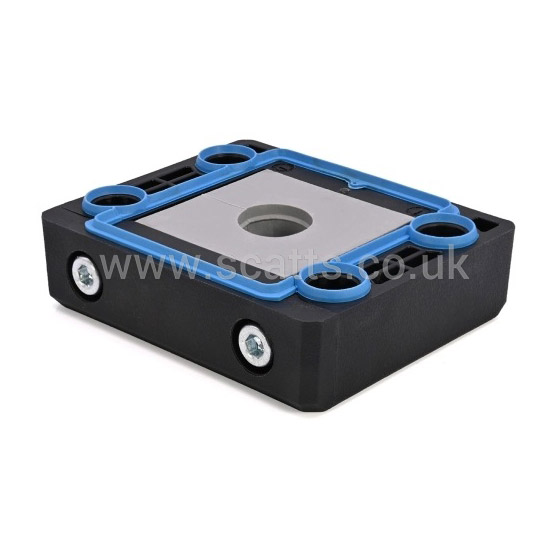

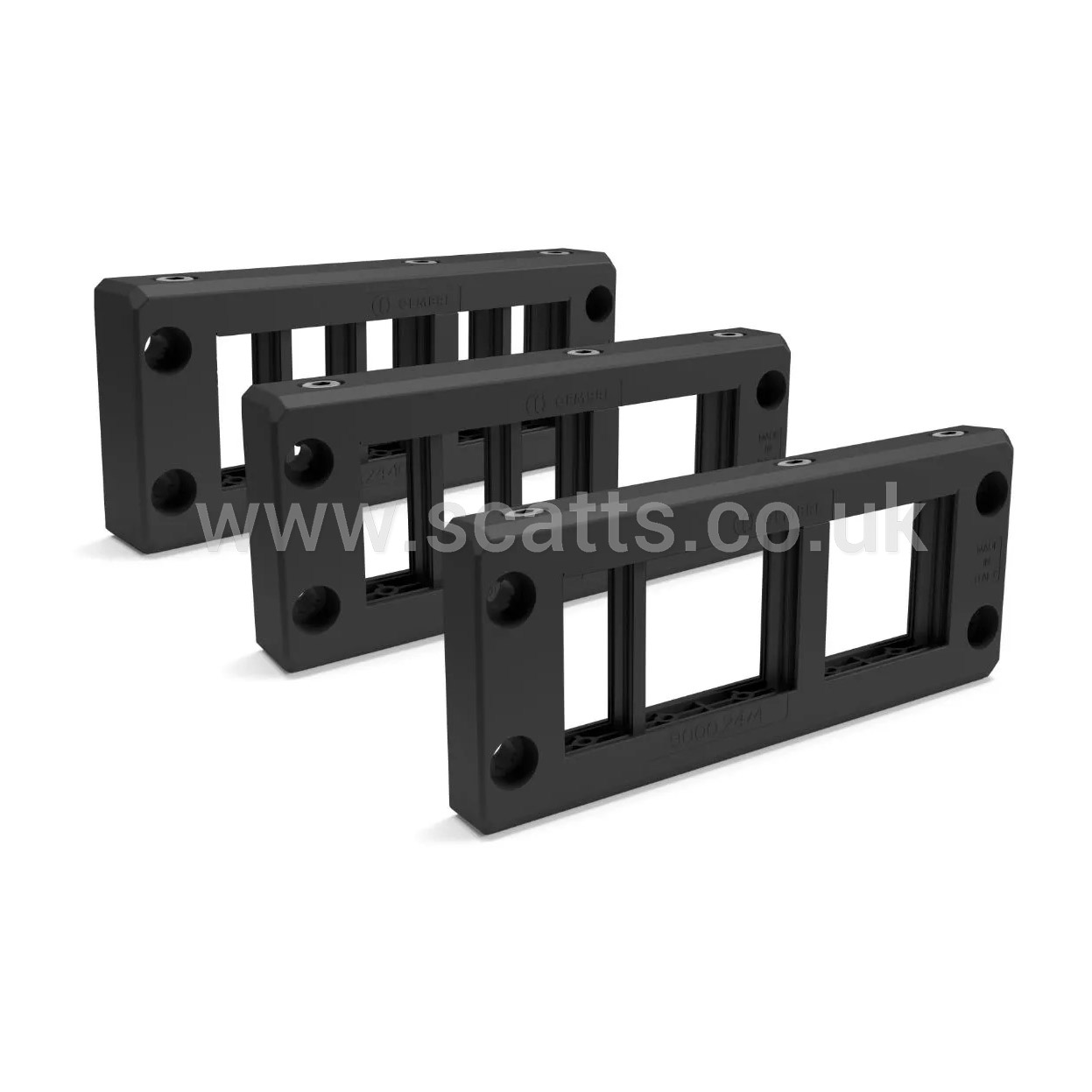

A range of rectangular, split cable entry frames from the Cembre EWO (Easy Wire Organiser) Series. These frames are designed for fast, high-density cable management, specifically allowing pre-terminated cables to be passed through electrical enclosures and panels without removing the connectors.
Key Features include:

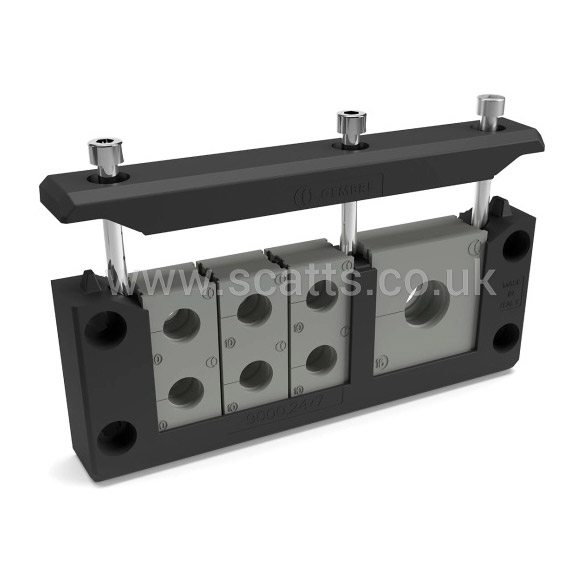

• Plug & Fix Mechanism: The frame features a quick-open/snap-lock design, allowing you to easily clamp the frame around already-laid cables during the final wiring phase

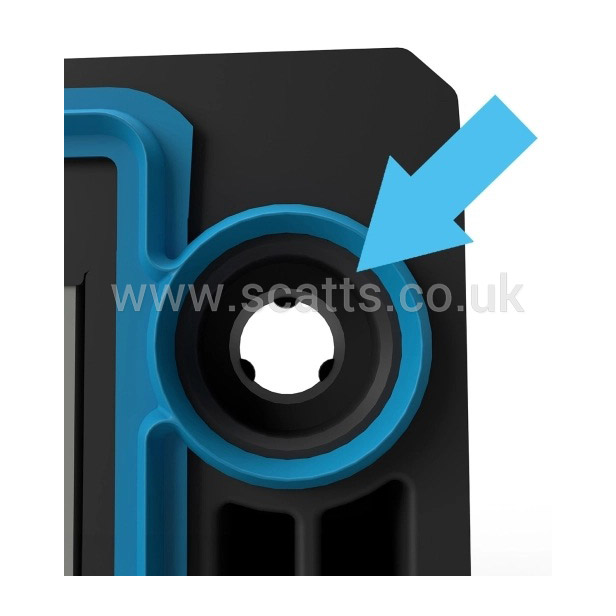

• IP66 Sealing: An innovative overmolded TPE seal eliminates the need for an external gasket, while the Stop Plinth structure protects the seal against over-compression
• Material: Constructed from glass-fiber reinforced PA6.6 polyamide, making it durable and suitable for heavy industrial automation
• Safe & Clean: Completely halogen-free, silicone-free, and rated to UL 94 V0 for self-extinguishing flame retardancy
Key Benefits include:
• Cable Retrofitting: The split frame design allows cables with connectors to be laid and installed before the frame is clamped around them
• No External Gaskets: An integrated, over-moulded TPE seal provides IP66 protection, saving space and eliminating the need for separate gaskets
• Plug & Fix Mechanism: Features a quick-open system with stainless steel, anti-fall screws for easy access and assembly
• Stop Plinth Design: Prevents seal over-compression, ensuring consistent performance and preventing damage during installation
• High Durability: Made of glass-fibre reinforced PA6.6, offering high impact resistance. It is completely silicone-free, halogen-free, and UL 94 V0 self-extinguishing

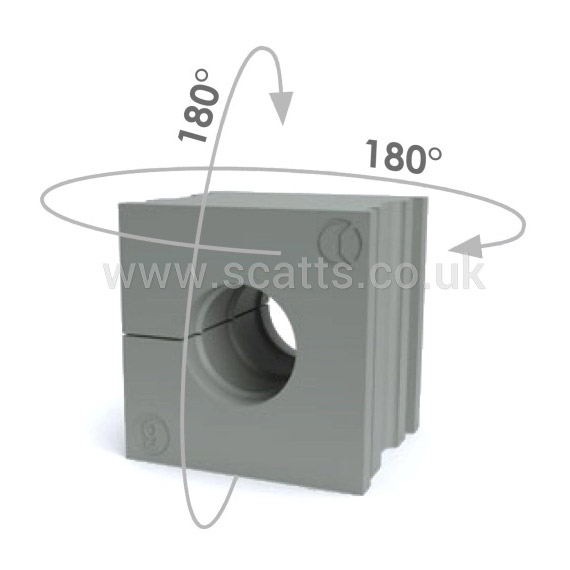

• Orientation Flexibility: Grommets can be mounted in any direction within the frame, simplifying the configuration process
Brand |
CEMBRE |
|
£3,600.00
per 100 (ex. VAT)£4,320.00
per 100 (inc. VAT)
