My Part Number:
Part Number: RKF-F405/PK100
Manufacturer Code: 2051602
Multiples of: 1 | Minimum Order: 1

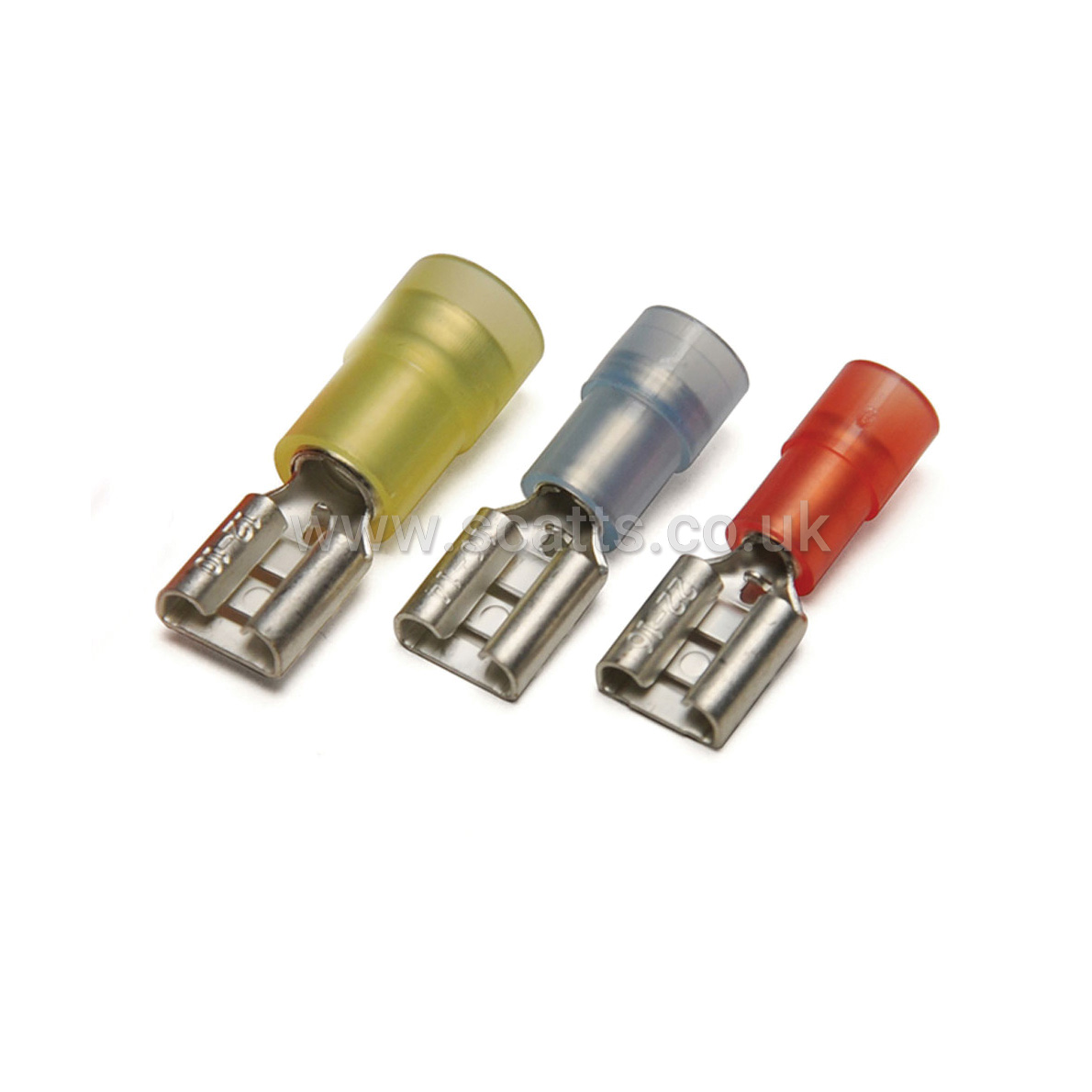

REINFORCED DISCONNECT TERMINALS
Female connectors, fully reinforced with copper sleeve. PA6.6 insulated terminals
‘KF-’ type terminals are designed to offer improved mechanical and electrical integrity under heavy-duty application.
This is achieved via a Copper sleeve located between the Brass barrel and Polyamide insulation of the terminal.
The funnel shape of this sleeve is designed to provide ‘easy entry’ of stranded conductor by smoothing the internal path.
Then, during crimping, the insulation of the conductor is integrated into the crimp due to the Copper sleeve being deformed around it to maintain the level of ‘grip’ required in applications subject to continuous mechanical vibrations (e.g: mobile plant, vehicles, moving components).
Material (Body): electrolytic tin-plated Brass
Material (Fully reinforced): ETP electrolytic tinned Copper
Halogen Free: yes
Min operating temperature range: -20 °C
Max operating temperature range: 105 °C
Max operating temperature range (surge): 110 °C
Dimensional form: Female terminal
Material (Partially reinforced): Polyamide PA6.6
Brand |
CEMBRE |
|
£26.55
per 1 (ex. VAT)£31.86
per 1 (inc. VAT)
