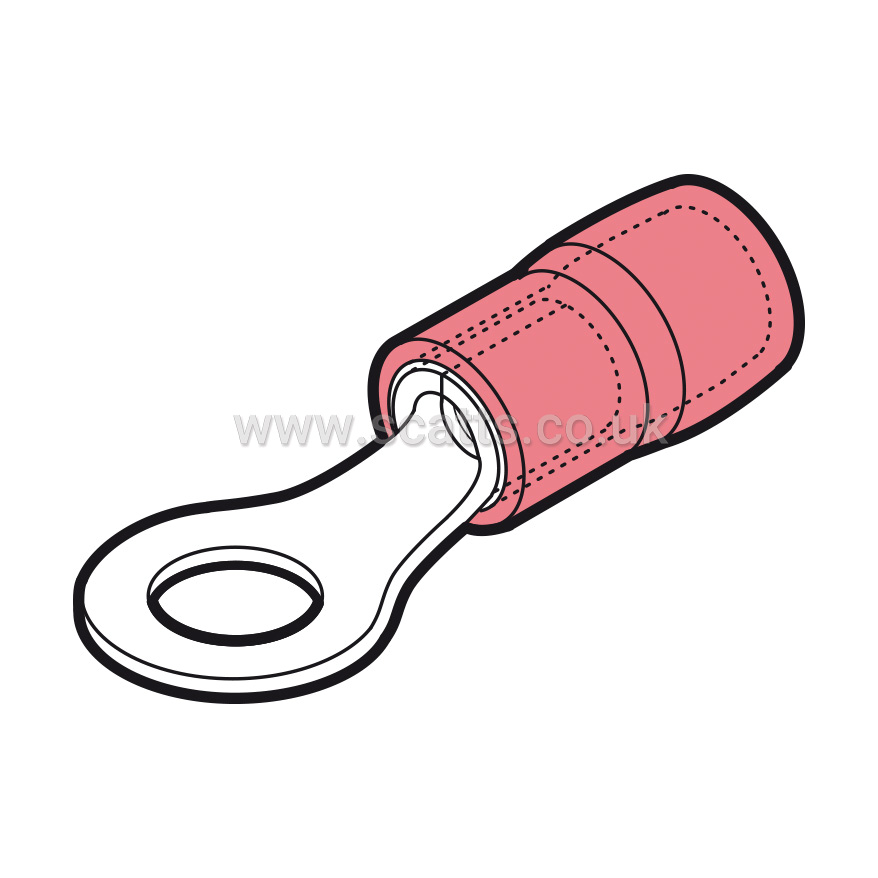

0.25MM-1.5MM RING TERM M6 STUD RED

REINFORCED PA 6.6 INSULATED TERMINALS


‘KY’ type terminals are designed to offer improved mechanical and electrical integrity under heavy-duty application. This is achieved via a Copper sleeve located between the Copper barrel and Polyamide insulation of the terminal.

Then, during crimping, the insulation of the conductor is integrated into the crimp due to the Copper sleeve being deformed around it to maintain the level of ‘grip’ required in applications subject to continuous mechanical vibrations (e.g: mobile plant, vehicles, moving components).


Colour: Red
Width: 11.6 mm
Length: 27.8 mm
Diameter: 4.5 mm
Diameter of the hole: 6.4 mm
M: 11 mm
N: 5.8 mm
Dimensional form: Ring terminal
Easy entry: yes
Halogen Free: yes
UL94 class: V2
Min operating temperature range: -20 °C
Max operating temperature range: 105 °C
Max operating temperature range (surge): 110 °C
Dimensional form: Ring terminal
Material (Body): ETP electrolytic tinned Copper
Material (Partially reinforced): Polyamide PA6.6
