My Part Number:
Part Number: RKY-PPL30/PK100
Manufacturer Code: 2145795
Multiples of: 1 | Minimum Order: 1

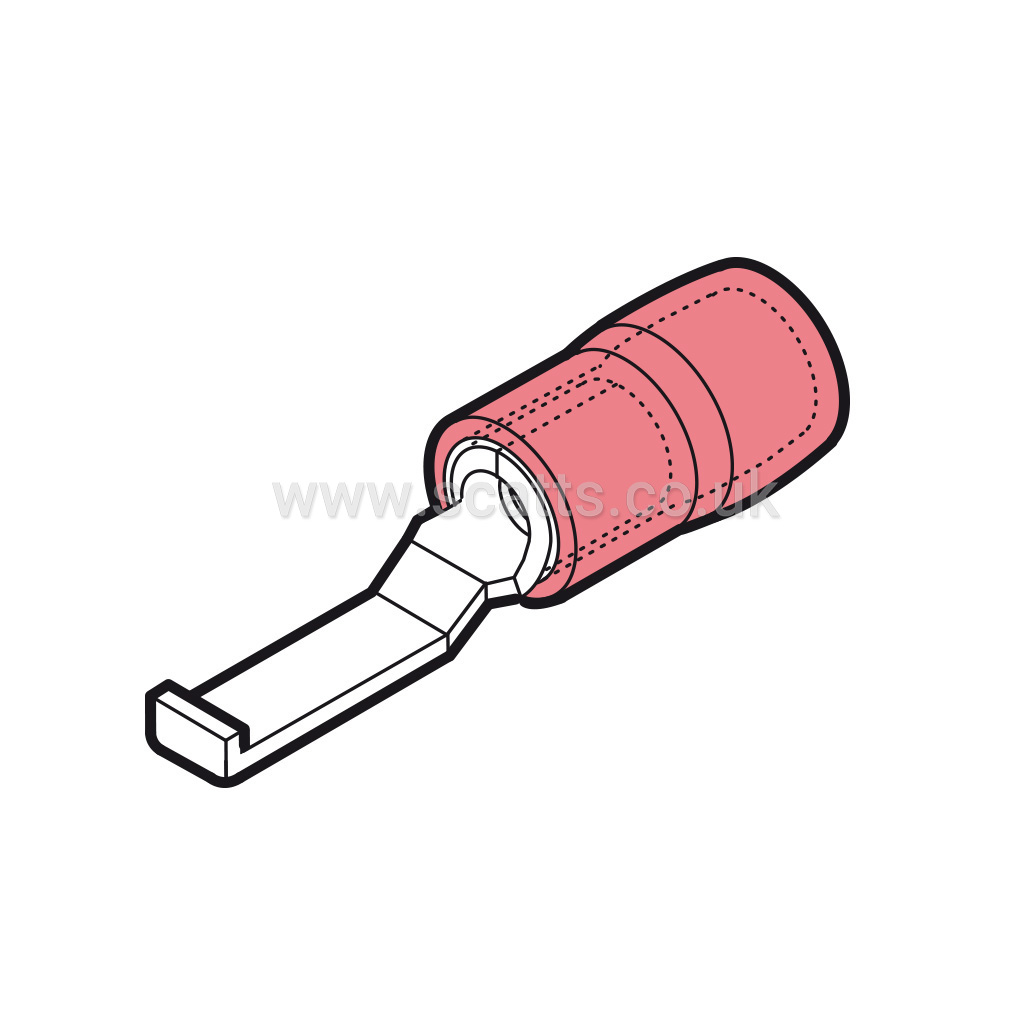

REINFORCED RED HOOKBLADE
‘KY’ type terminals are designed to offer improved mechanical and electrical integrity under heavy-duty application.
This is achieved via a Copper sleeve located between the Copper barrel and Polyamide insulation of the terminal.
Then, during crimping, the insulation of the conductor is integrated into the crimp due to the Copper sleeve being deformed around it to maintain the level of ‘grip’ required in applications subject to continuous mechanical vibrations (e.g: mobile plant, vehicles, moving components).
Technical details
“KY” type terminals are manufactured from electrolytic Copper Cu-ETP CWOO4A according to
UNI EN 13599 and are tin plated to a minimum thickness of 3 m.
Main characteristics of the PA6.6 sleeve:
DIELECTRIC STRENGTH (kV/mm) : >16,5
VOLUME RESISTIVITY (Ω/cm) : >1013
MAX OPERATING TEMPERATURE (°C) : 105
FLAMMABILITY’ (UL-94) : V-2
DENSITY (g/cm3) : 1,14
WATER ABSORPTION (%) : 1,5
BREAKING LOAD (N/mm2) : 77
“KY” type terminals can be stored at a minimum temperature not below - 40°C.
Brand |
CEMBRE |
|
Connection Type |
Hooked Blade - Reinforced |
|
Conductor Size |
0.25 mm² - 1.5 mm² |
|
Conductor Type |
Stranded Conductor - Class 2 |
|
Insulation Colour |
Red |
|
Insulation Material |
PA - Polyamide |
|
Barrel Diameter - Internal |
4.5 mm |
|
Palm Width |
3 mm |
|
Palm Length |
16.8 mm |
|
Pack Size |
100 Per Pack |
|
Overall Length |
28.2 mm |
|
£31.35
per 1 (ex. VAT)£37.62
per 1 (inc. VAT)
