My Part Number:
Part Number: ADE1M323NPNK3
Manufacturer Code: CAP806804V1K3
Multiples of: 1 | Minimum Order: 1

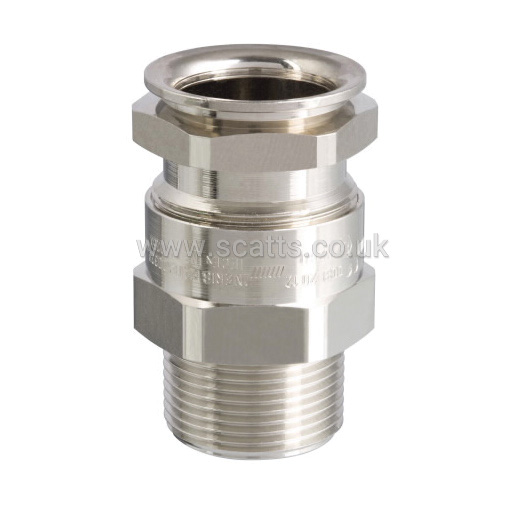

Eaton Capri ADE-1F2 Cable Gland for Hazardous Area
Sealing Type: Silicone
Special Features: K3
Connector Type: Straight
Outer Sheath (Min/Max): 18-27.5
Gland Type: Non-armoured
Cable Sealing Range: 3 (L)
Thread Size: M32
Material: Nickel plated brass
Thread Type: Metric
Gland Size: 8
Protection Type: Flameproof and increased safety
• Specifically formulated elastomer for IP sealing on outer sheath of
cable.
• Additional external cable clamping for strain relief (optional).
Brand |
CROUSE HINDS |
|
IP Rating |
IP66 |
|
Body Material |
Nickel Plated Brass |
|
Minimum Operating Temperature |
-60 °C, -60 °C |
|
Maximum Operating Temperature |
140 °C |
ATEX Approval - Dust |
Ex tb IIIC |
|
ATEX Approval - Gas |
Ex db IIC |
|
Hazadrous Area Certification |
1, 2, 21, 22 |
|
Approvals |
ATEX, IECEx |
Additional Information |
KC: Gwshr, NPBrlnt, 316LSW |
|
ATEX Certificate Number |
IECEx INE 12.0025X, INERIS12ATEX0032X |
|
CableType |
Elastomer, Plastic |
|
Maximum Cable Acceptance - Outer |
27.5 mm |
|
Minimum Cable Acceptance - Outer |
18.0 mm |
|
Size Reference |
#8 |
|
Thread Size |
M32 |
|
Thread Gender |
Male |
|
Thread Standard |
Metric |
|
Seal Material |
Single Seal |
|
£36.75
per 1 (ex. VAT)£44.10
per 1 (inc. VAT)
