My Part Number:
Part Number: ADE5M323NPNK3
Manufacturer Code: CAP856804V1K3
Multiples of: 1 | Minimum Order: 1

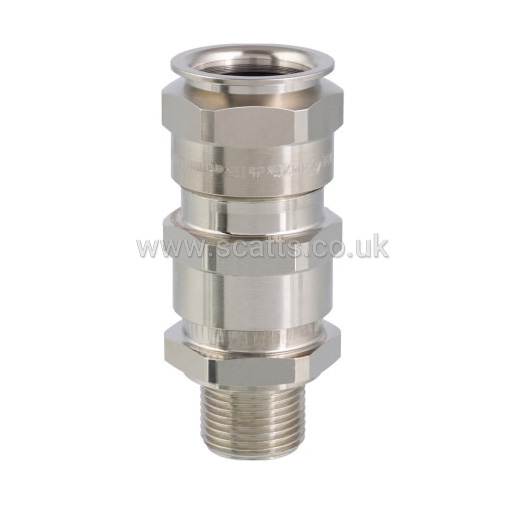

Eaton Capri ADE-5F Cable Gland for Hazardous Area
Sealing Type: Silicone
Special Features: K3
Connector Type: Straight
Outer Sheath (Min/Max): 23-34
Gland Type: Armoured
Cable Sealing Range: 3 (L)
Thread Size: M32
Material: Nickel plated brass
Thread Type: Metric
Gland Size: 9
Protection Type: Flameproof and increased safety
• Specifically formulated elastomer for flame path sealing on inner sheath of cable.
• Anti-rotation feature providing simplified inspectability of armour clamping and grounding system.
• Specifically formulated elastomer for IP sealing on outer sheath of cable.
• Additional external cable clamping for strain relief (optional).
• Additional deluge seal available for ADE-5F gland sizes No.12 to No.17.
• Suitable for lead sheath cable with installation of simple washer (optional).
Brand |
CROUSE HINDS |
|
£73.32
per 1 (ex. VAT)£87.98
per 1 (inc. VAT)
