My Part Number:
Part Number: ADE6CM252NPSCNK3
Manufacturer Code: CAP969794V1K3
Multiples of: 1 | Minimum Order: 1

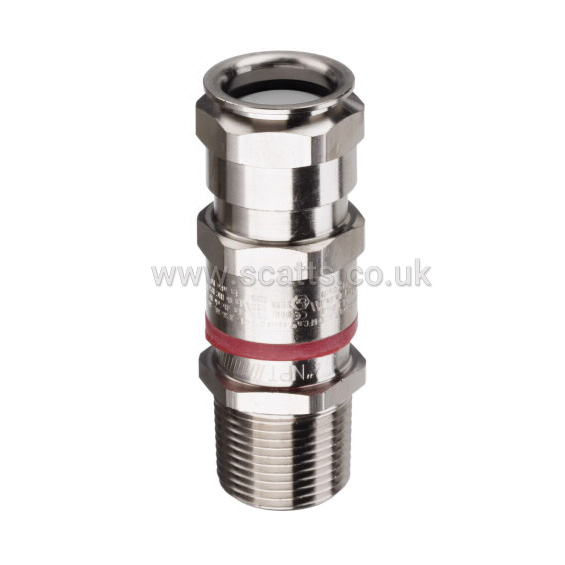

Eaton Capri ADE-6FC Cable Gland for Hazardous Area
Sealing Type: Silicone
Special Features: K3
Connector Type: Straight
Outer Sheath (Min/Max): 12-21
Gland Type: Armoured Barrier
Cable Sealing Range: 2 (M)
Thread Size: M25
Material: Nickel plated brass
Thread Type: Metric
Barrier Type: TSC Compound
Gland Size: 7
Protection Type: Flameproof and increased safety
• Sealing of cable conductors with compound barrier seal.
• Universal clamping design for earthing and bonding of armour shield. Provides mechanical strength and is suitable for all armour shield types, with no requirement to reverse components that may introduce risk of incorrect installation. Fully inspectable.
• Specifically formulated elastomer for IP sealing on outer sheath of cable.
• Deluge performance to avoid water ingress through the thread.
• Additional external cable clamping for strain relief (optional).
Brand |
CROUSE HINDS |
|
IP Rating |
IP66 |
|
Body Material |
Nickel Plated Brass |
|
Minimum Operating Temperature |
-60 °C, -60 °C |
|
Maximum Operating Temperature |
80 °C |
ATEX Approval - Dust |
Ex tb IIIC |
|
ATEX Approval - Gas |
Ex db IIC |
|
Hazadrous Area Certification |
1, 2, 21, 22 |
|
Approvals |
ATEX, IECEx |
Additional Information |
KC: Gwshr, NPBrlnt, NPetg, 316LSW |
|
ATEX Certificate Number |
IECEx INE 12.0025X, INERIS12ATEX0032X |
|
CableType |
Elastomer, Plastic |
|
Maximum Cable Acceptance - Outer |
21.0 mm |
|
Maximum Over Core Diameter |
16.0mm |
|
Minimum Cable Acceptance - Outer |
12.0 mm |
|
Size Reference |
#7 |
|
Number Of Cores |
10 |
|
Armoured |
STA, SWA, SWB |
|
Thread Size |
M25 |
|
Thread Gender |
Male |
|
Thread Standard |
Metric |
|
£82.23
per 1 (ex. VAT)£98.68
per 1 (inc. VAT)
