My Part Number:
Part Number: ECXS4030201/10P
Multiples of: 1 | Minimum Order: 1

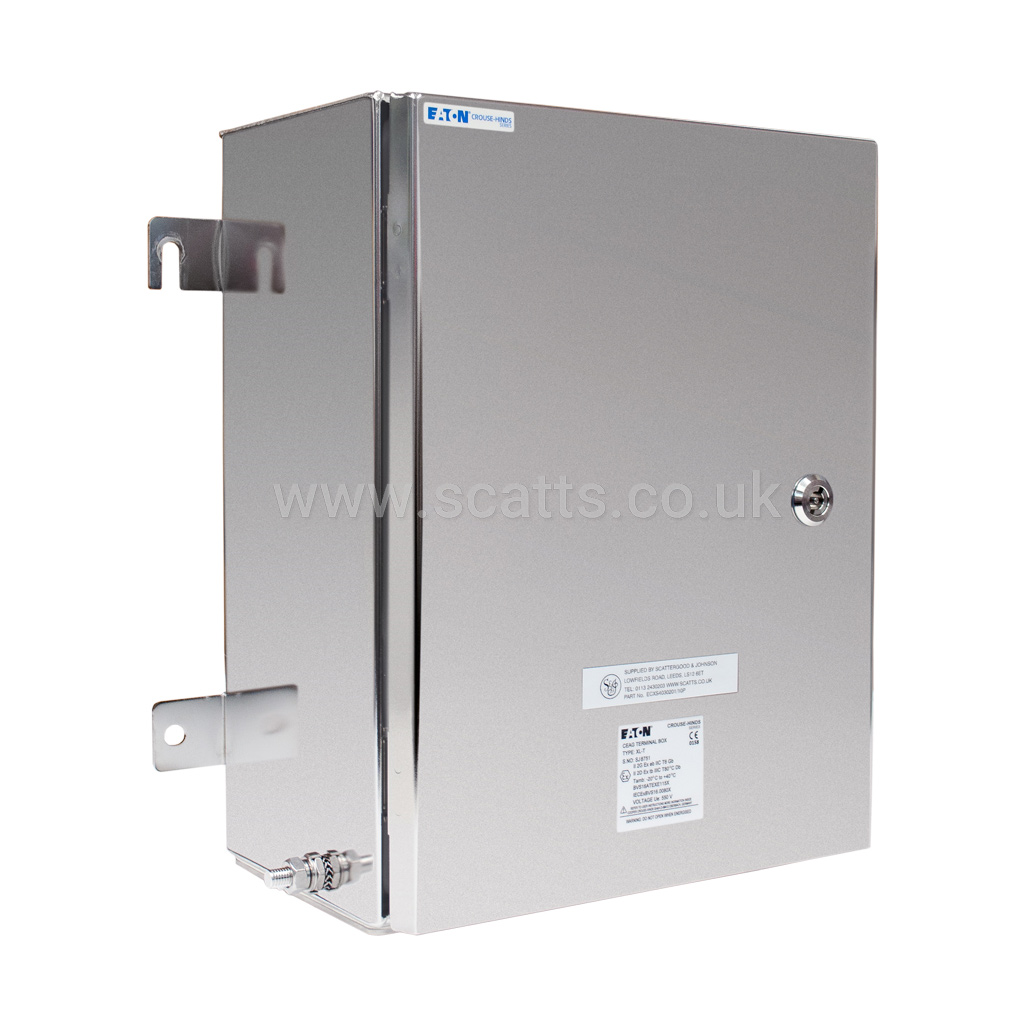

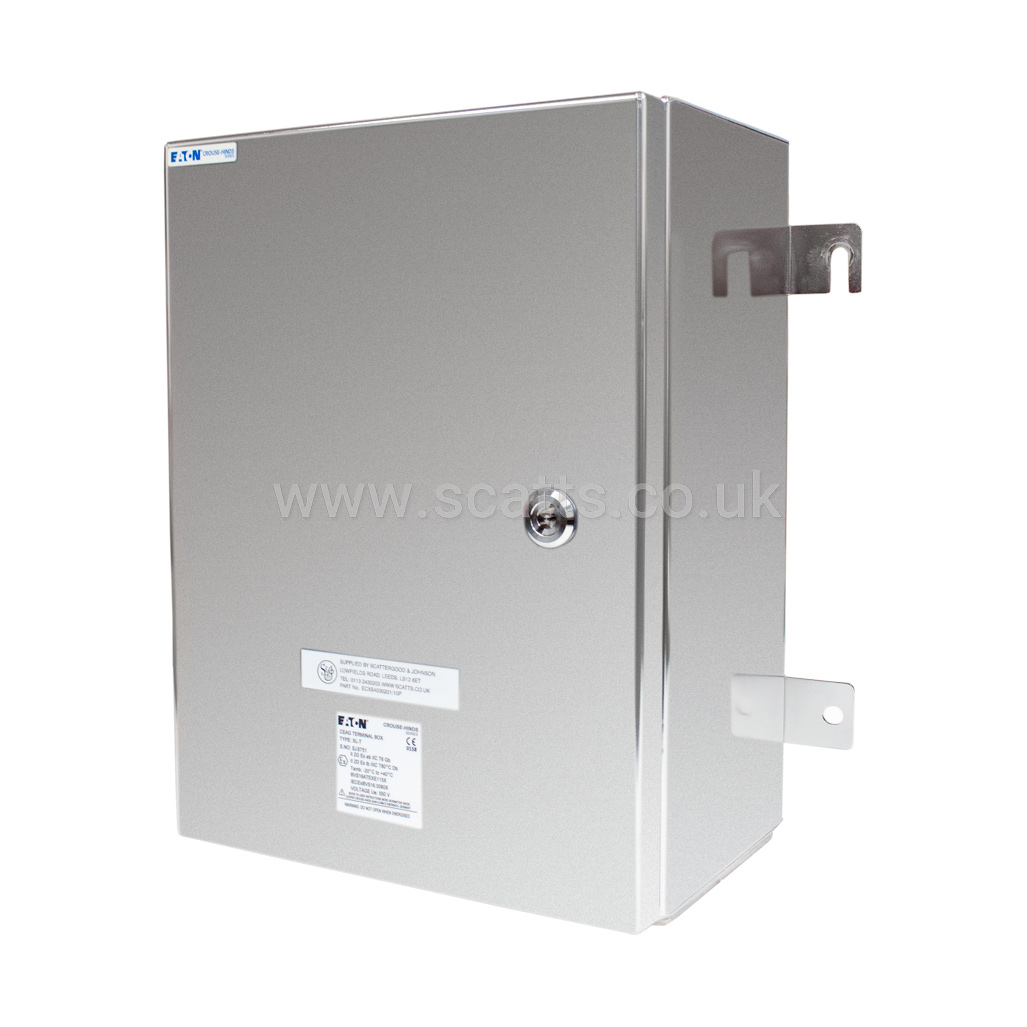

ATEX /IECEx Exe certified Instrument Junction Box, Gas & Dust certified for Zones 1/2 & 21/22, 316L stainless steel enclosure with bottom gland plate.

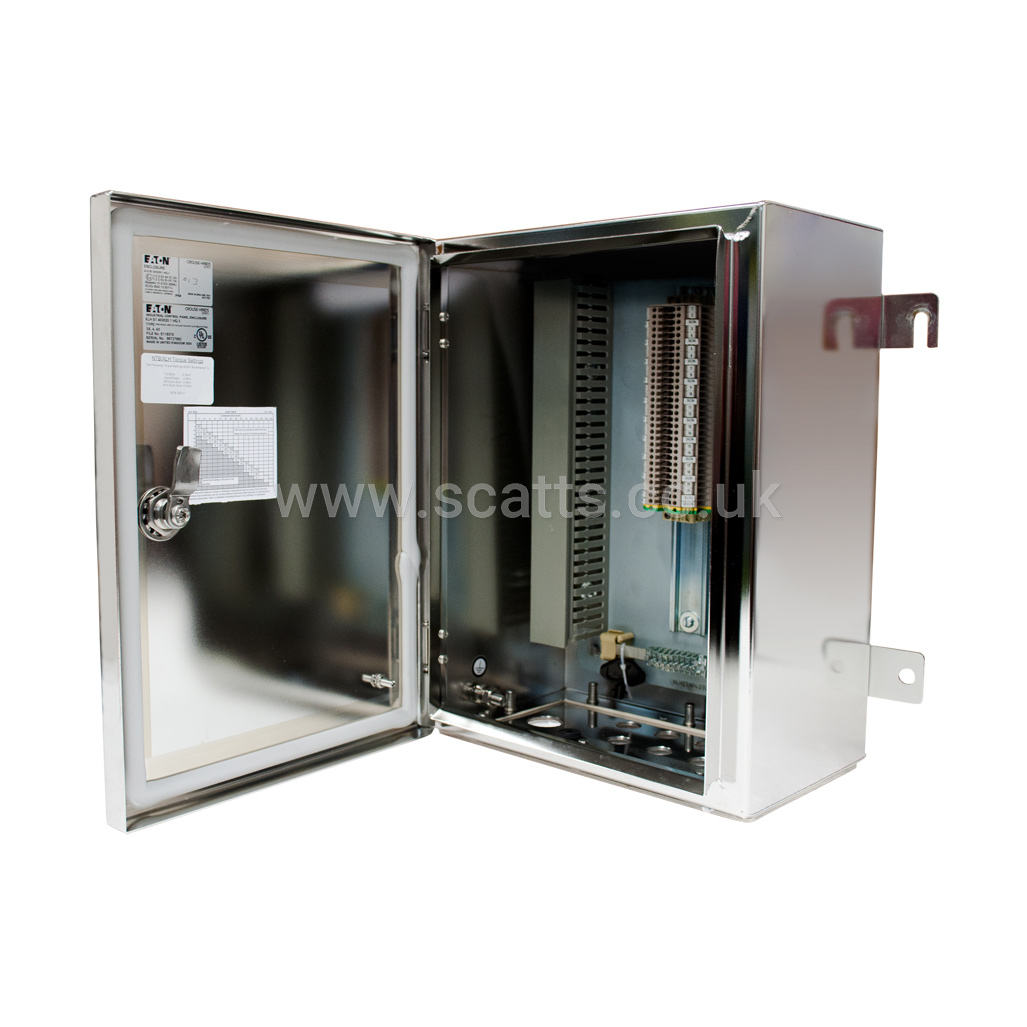

Fitted with internal mounting plate and one vertical rail with 31 x WDU 2.5 beige terminals and 1 x WPE 2.5 earth terminals, terminal marking 1 ,2 ,SCN ,3 ,4 ,SCN etc, two vertical lengths of 40 x 60mm Grey PVC trunking and one horizontal screen bar with 11 x ZB4 Clamps.
Suitable for BS5308 Part 1 and Part 2 cables, either overall screened or individual and overall screened. Bottom gland plate pre-machined with 1 x 32mm and 11 x 20mm cable entries, one off Exe M20 stopping plug fitted for a site installed breather drain plug if required (not included).
Brand |
CROUSE HINDS |
|
£843.25
per 1 (ex. VAT)£1,011.90
per 1 (inc. VAT)
ATEX /IECEx Exe certified Instrument Junction Box, Gas & Dust certified for Zones 1/2 & 21/22, 316L stainless steel enclosure with bottom gland plate.
Fitted with internal mounting plate and one vertical rail with 31 x WDU 2.5 beige terminals and 1 x WPE 2.5 earth terminals, terminal marking 1 ,2 ,SCN ,3 ,4 ,SCN etc, two vertical lengths of 40 x 60mm Grey PVC trunking and one horizontal screen bar with 11 x ZB4 Clamps.
Suitable for BS5308 Part 1 and Part 2 cables, either overall screened or individual and overall screened. Bottom gland plate pre-machined with 1 x 32mm and 11 x 20mm cable entries, one off Exe M20 stopping plug fitted for a site installed breather drain plug if required (not included).
Brand |
CROUSE HINDS |
|
