My Part Number:
Part Number: BA9034N/100/AC230V
Manufacturer Code: 0064006 / BA9034N/100 32A AC50/60HZ230V 1-15S
Multiples of: 1 | Minimum Order: 1

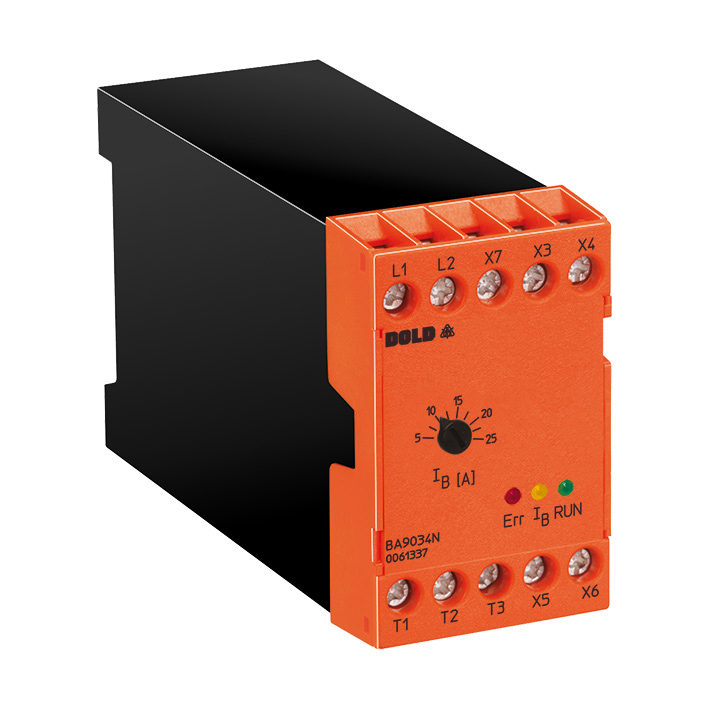

Motor brake relay - BA 9034N
The supply voltage is connected to terminals L1-L2 and the interlock contact X5-X6 closes to enable the motor contactor. A green LED indicates operation. The motor can be started with the start button. The braking DC-voltage is generated on terminals T1 and T2. The braking sequence is as follows: Pressing the stop button de-energises the motor contactor. The closing of X3-X4 (contact of the motor contactor) starts the braking. After a safety time the braking contactor closes for the adjusted braking time and the braking current flows through the motor.
Technical specifications
Width: 45 mm
Braking current adjustable up to max.: 32 A
Braking time adjustable up to max.: 31 s
Automatic standstill monitoring: Yes
Signalling output: Yes
Type: BA 9034N
Brand |
DOLD |
|
£449.41
per 1 (ex. VAT)£539.29
per 1 (inc. VAT)
