My Part Number:
Part Number: 1910-1
Multiples of: 1 | Minimum Order: 1

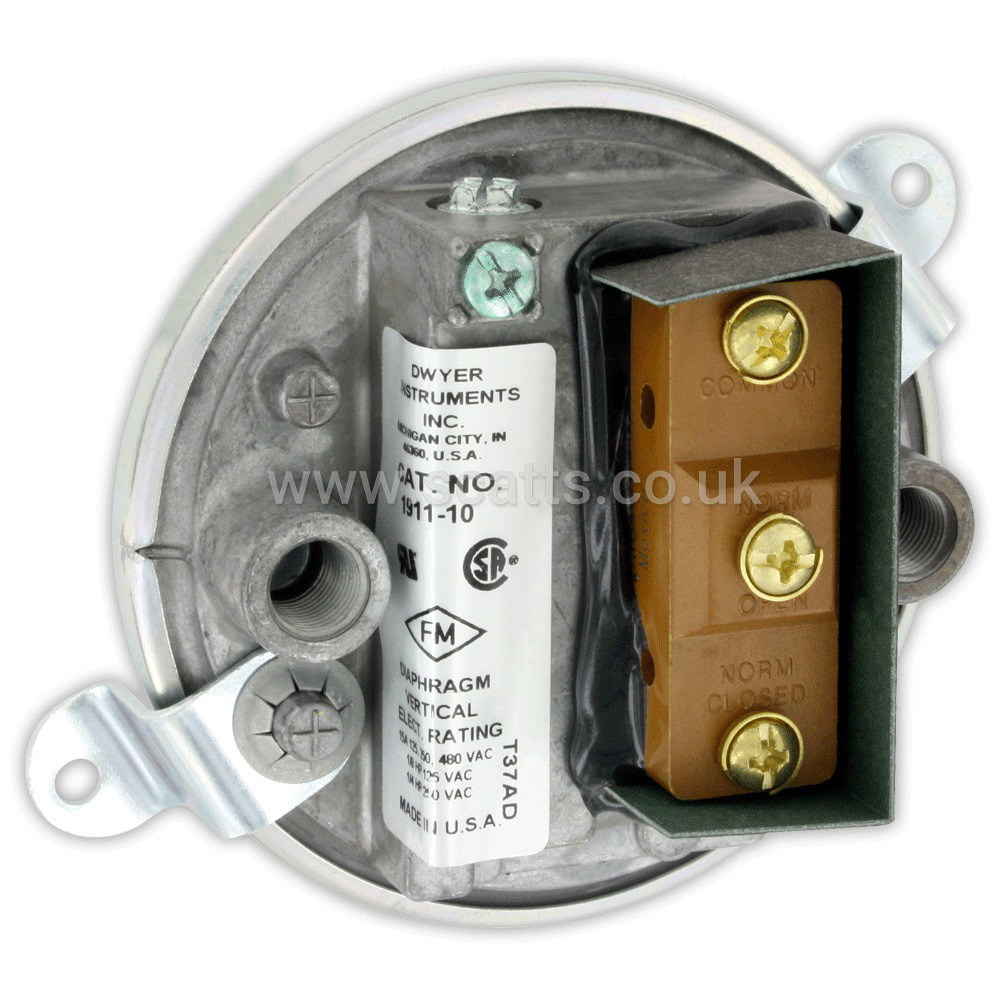

Series 1900 Compact Low Differential Pressure Switch combines advanced design and precision construction to make these switches able to perform many of the tasks of larger, costlier units. Designed for air conditioning service, they also serve many fluidics, refrigeration, oven and dryer applications.
Brand |
DWYER OMEGA |
|
Electrical Connection |
Screw terminal |
|
Depth |
60 mm |
|
Weight |
581 g |
Approvals |
FM, CE, CSA |
Acceptable Media |
Gas |
|
Measuring Principle |
Mechanical |
|
Process Connection |
⅛" NPT Female |
|
Minimum Sensing Range |
0.4 WC |
|
Maximum Sensing Range |
1.6 WC |
|
Output Signal |
1 x SPDT |
|
Maximum Pressure |
10 psi |
|
Maximum Media Temperature |
82.2 °C |
|
Diameter |
88 mm |
|
£71.03
per 1 (ex. VAT)£85.24
per 1 (inc. VAT)Series 1900 Compact Low Differential Pressure Switch combines advanced design and precision construction to make these switches able to perform many of the tasks of larger, costlier units. Designed for air conditioning service, they also serve many fluidics, refrigeration, oven and dryer applications.
