My Part Number:
Part Number: BEXCP3APB-SSLAN1A1RN
Manufacturer Code: BEXCP3A-PB-ST-NL-RD
Multiples of: 1 | Minimum Order: 1

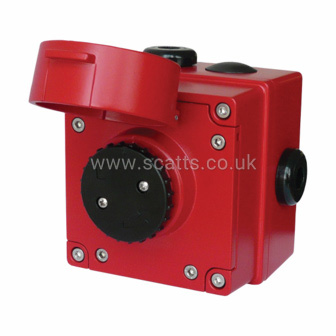

BExCP3-PB Push Button Manual Call Point
The BEx range features enclosures manufactured from corrosion proof, marine grade, copper free LM6 (A413) aluminium with a chromated and powder coat finish. Available with and without monitoring resistors all versions are certified to IECEx and ATEX standards with additional PESO, INMETRO and Ex EAC approvals. The push button mechanism is protected by a spring loaded cover therefore the switch requires a two-action activation. The BExCP3-PB is user re-settable by rotating the push button.
The BExCP3-PB push button manual call points are designed for the harshest of environments and approved for Zone 1, 2, 21 and 22 explosion proof hazardous areas for the control of fire and gas alarm systems. SIL2 compliant to IEC61508 (2010).
Brand |
E2S |
|
Height |
98 mm |
|
Width |
95 mm |
|
Depth |
101.7 mm |
|
Weight |
0.8 kg |
|
IP Rating |
IP66 |
|
Body Material |
Marine Grade Aluminium |
|
Minimum Operating Temperature |
-40 °C |
|
Maximum Operating Temperature |
70 °C |
ATEX Approval - Dust |
Ex tb IIIC T75°C Db IP66 |
|
ATEX Approval - Gas |
Ex db eb IIC T6 Gb |
|
Hazadrous Area Certification |
1, 2, 21, 22 |
|
Approvals |
ATEX, EAC, IECEx |
ATEX Certificate Number |
IECEx SIR 09.0121X, SIRA 09ATEX3286X |
|
Cable Entry Method |
Direct |
|
Control Contacts |
SPCO |
|
Control Operation |
Twist To Reset |
|
Number Of Terminals |
6 |
|
Voltage |
50 V DC, 50 V DC |
|
Voltage Rating |
230 V AC |
|
Switching Current |
1 A, 5 A |
|
Colour |
Red |
|
Cable Entries |
3 x 20 mm |
|
Maximum Conductor Size |
4 mm² |
|
£315.33
per 1 (ex. VAT)£378.40
per 1 (inc. VAT)
