My Part Number:
Part Number: 11DILE
Manufacturer Code: 010224
Multiples of: 1 | Minimum Order: 1

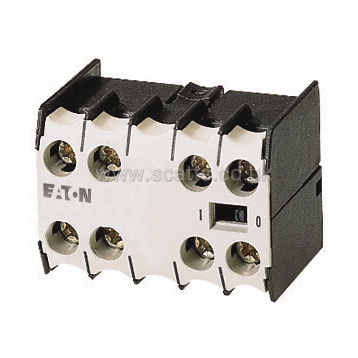

Eaton Moeller® series DILE Auxiliary contact module - 2 pole, 1 N/O, 1 NC, Front fixing, Screw terminals, DILE(E)M, DILER
Product length/depth: 36 mm
Product height: 32 mm
Product width: 45 mm
Rated operational current for specified heat dissipation (IN): 4 A
Terminal capacity (flexible with ferrule): 1 x (0.75 - 1.5) mm², 2 x (0.75 - 1.5) mm²
10.11 short-circuit rating: Is the panel builder's responsibility. The specifications for the switchgear must be observed.
Ambient operating temperature (enclosed) - MIN: 25 °C
Lamp holder: None
10.4 clearances and creepage distances: Meets the product standard's requirements.
10.12 electromagnetic compatibility: Is the panel builder's responsibility. The specifications for the switchgear must be observed.
Mounting method: Front fastening
10.2.5 lifting: Does not apply, since the entire switchgear needs to be evaluated.
Ambient operating temperature (enclosed) - MAX: 40 °C
10.2.3.1 verification of thermal stability of enclosures: Meets the product standard's requirements.
Ambient storage temperature - MIN: 40 °C
Fitted with: Switching elements according to EN 50005, Interlocked opposing contacts
10.8 connections for external conductors: Is the panel builder's responsibility.
Screw size: M3.5, Terminal screw
Protection: Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Ambient operating temperature - MAX: 50 °C
Climatic proofing: Damp heat, constant, to IEC 60068-2-78, Damp heat, cyclic, to IEC 60068-2-30
Code number: 42 in combination with DILER-31(-G), 33 in combination with DILER-22, 51E
Features: Interlocked opposing contacts within an auxiliary contact module (according to IEC 60947-5-1 Annex L)
Static heat dissipation, non-current-dependent PVS: 0 W
Rated operational current (IE) at AC-15, 500 V: 1.5 A
10.9.3 impulse withstand voltage: Is the panel builder's responsibility.
Number of poles: Two-pole
Ambient operating temperature - MIN: -25 °C
10.6 incorporation of switching devices and components: Does not apply, since the entire switchgear needs to be evaluated.
10.5 protection against electric shock: Does not apply, since the entire switchgear needs to be evaluated.
Safe isolation: 300 V AC, Between auxiliary contacts, According to EN 61140, 300 V AC, Between coil and auxiliary contacts, According to EN 61140
Mounting position: As required (except vertical with terminals A1/A2 at the bottom)
Rated operational current (IE) at AC-15, 220 V, 230 V, 240 V: 4 A
Electric connection type: Screw connection
10.13 mechanical function: The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.6 mechanical impact: Does not apply, since the entire switchgear needs to be evaluated.
10.9.4 testing of enclosures made of insulating material: Is the panel builder's responsibility.
Number of contacts (normally closed contacts): 1
10.3 degree of protection of assemblies: Does not apply, since the entire switchgear needs to be evaluated.
Heat dissipation per pole, current-dependent pvid: 0.24 W
Rated operational current (IE) at AC-15, 380 V, 400 V, 415 V: 2 A
Operating frequency: 9000 Operations/h
Switching capacity (auxiliary contacts, general use): 10 A, 600 V AC, (UL/CSA), 0.5 A, 250 V DC, (UL/CSA):
Number of switches (fault signal): 0
Equipment heat dissipation, current-dependent PVID: 0 W
Heat dissipation capacity PDISS: 0 W
Rated operational current (IE): 2.5 A at 24 V, DC L/R ≤ 15 ms (with 1 contact in series), 0.5 A at 220 V, DC L/R ≤ 15 ms (with 3 contacts in series), 2.5 A at 60 V, DC L/R ≤ 15 ms (with 2 contacts in series), 1.5 A at 110 V, DC L/R ≤ 15 ms (with 3 contacts in series)
Short-circuit protection rating without welding: 6 A gG/gL, 500 V, Max. Fuse, Contacts
Terminal capacity (solid): 2 x (0.75 - 2.5) mm², 1 x (0.75 - 2.5) mm²
10.2.3.2 verification of resistance of insulating materials to normal heat: Meets the product standard's requirements.
10.2.3.3 resist. Of insul. Mat. To abnormal heat/fire by internal elect. Effects: Meets the product standard's requirements.
Connection type: Screw connection
Lifespan, mechanical: 200,000 Operations (at 240 V, AC-15), 20,000,000 Operations (DC operated), 150,000 Operations (at 240 V, DC, L/R = 50 ms: 2 contacts in series 0.5 A), 10,000,000 Operations (AC operated)
Conventional thermal current ith of auxiliary contacts (1-pole, open): 10 A
Terminal capacity (solid/stranded AWG): Single 18 – 14, double 18 – 14
10.9.2 power-frequency electric strength: Is the panel builder's responsibility.
Control circuit reliability: < 2 λ, < 1 failure at 100,000,000 Operations (at Uₑ = 24 V DC, Umin = 17 V, Imin = 5.4 mA)
Overvoltage category: III
Degree of protection: IP20
Ambient storage temperature - MAX: 80 °C
Rated operational voltage (UE) at AC - MAX: 600 V
Pollution degree: 3
10.7 internal electrical circuits and connections: Is the panel builder's responsibility.
Rated impulse withstand voltage (UIMP): 6000 V AC
10.10 temperature rise: The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
Functions: For standard applications
Tightening torque: 1.2 Nm, Screw terminals
Screwdriver size: 2, Terminal screw, Pozidriv screwdriver, 0.8 x 5.5/1 x 6 mm, Terminal screw, Standard screwdriver
10.2.2 corrosion resistance: Meets the product standard's requirements.
10.2.4 resistance to ultra-violet (UV) radiation: Meets the product standard's requirements.
10.2.7 inscriptions: Meets the product standard's requirements.
Number of contacts (normally open contacts): 1
Short-circuit protection rating: 10 A fast, 500V, Maximum fuse, Short-circuit rating without welding, Contacts
Model: Top mounting
Number of contacts (change-over contacts): 0
Shock resistance: 8 g, N/C contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms, 10 g, N/O contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
Switching capacity (auxiliary contacts, pilot duty): P300, DC operated (UL/CSA), A600, AC operated (UL/CSA)
Rated insulation voltage (UI): 690 V
Brand |
EATON MOELLER ELECTRIC |
|
£11.88
per 1 (ex. VAT)£14.26
per 1 (inc. VAT)
