ENCLOSURE

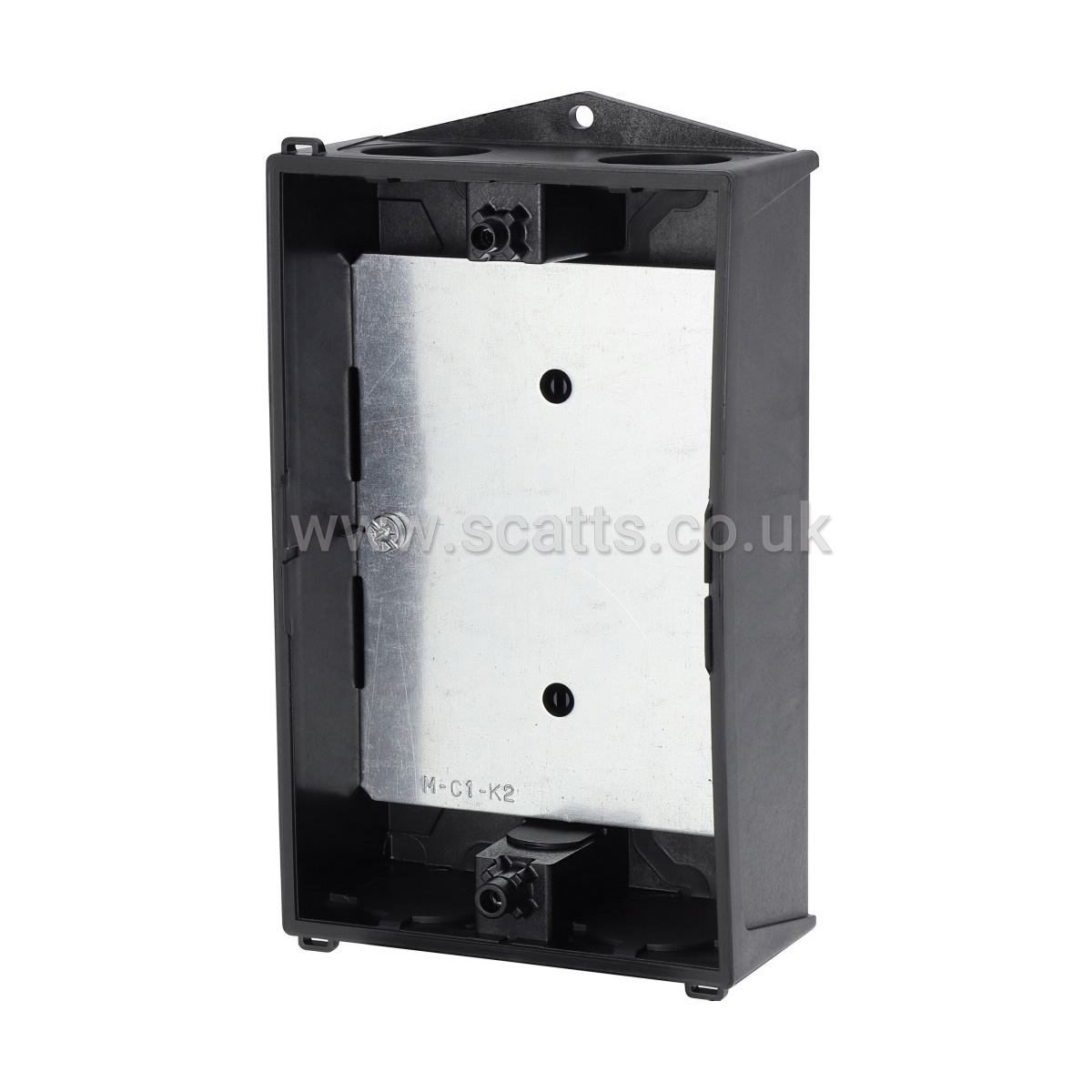

Eaton Moeller® series CI-K Insulated enclosure

PRODUCT SPECIFICATIONS

Rated Operational Current for Specified Heat Dissipation (IN): 0 A
10.11 Short-Circuit Rating: Is the panel builder's responsibility. The specifications for the switchgear must be observed.
Enclosure Colour: Light gray, Cover (RAL 7035)
Light gray, Operator (RAL 7035)
Black (RAL 9005)
Temperature Resistance: -40 - 120 °C (enclosure)
-40 - 80 °C (gasket)
10.4 Clearances and Creepage Distances: Meets the product standard's requirements.
10.12 Electromagnetic Compatibility: Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.2.5 Lifting: Not applicable.
Dielectric Strength: 30 kV/mm, according to IEC 60243-1
10.2.3.1 Verification of Thermal Stability of Enclosures: Meets the product standard's requirements.
Fitted With: Control cable entry
Mounting plate
Degree of Protection (Front Side): IP65
10.8 Connections for External Conductors: Is the panel builder's responsibility.
Environmental Resistance: Resistant against alcohol
Partly resistant to alcohol
Not resistant to benzene
Resistant against benzene
Chemical resistant (Base, Cover)
Not resistant to alkalis
Chemical resistant (Push-through membrane (CI-K1/CI-K2) and sealing material)
Resistant against mineral oil
Resistant against alkalis
Resistant against gasoline
Resistant against salt solutions
Resistant against acids (< 10%)
Partly resistant to acids (> 10%)
Partly resistant to benzene
Resistant against greases
Not resistant to Mineral oil
Partly resistant to greases
Ambient Operating Temperature – MAX: 70 °C
Track Resistance: CTI 175 (base, to IEC 60112)
CTI 175 (cover, to IEC 60112)
Climatic Proofing: Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Features: Halogen free
UV resistance beneath protective shield
Static Heat Dissipation, Non-Current-Dependent PVS: 0 W
10.9.3 Impulse Withstand Voltage: Is the panel builder's responsibility.
Knockouts: Metric cable entry knockouts at the top, bottom and back plate
Push-through cable entry diaphragm
Ambient Operating Temperature – MIN: -25 °C
10.6 Incorporation of switching Devices and Components: Does not apply, since the entire switchgear needs to be evaluated.
10.5 Protection Against Electric Shock: Does not apply, since the entire switchgear needs to be evaluated.
10.13 Mechanical Function: The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.6 Mechanical Impact: Does not apply, since the entire switchgear needs to be evaluated.
10.9.4 Testing of Enclosures Made of Insulating Material: Meets the product standard's requirements.
10.3 Degree of Protection of Assemblies: Meets the product standard's requirements.
Heat Dissipation Per Pole, Current-Dependent PVID: 0 W
Water Consumption: 0.29 % (According to DIN EN ISO 62)
Mounting Weight Capacity – MAX: .7 kg
Product Category: Empty enclosures
Small enclosures
Equipment Heat Dissipation, Current-Dependent PVID: 0 W
Heat Dissipation Capacity Pdiss: 12.5 W
Suitable for: Emergency stop
Flammability Characteristics: 960 °C/1 mm thickness (base, cover; glow wire to VDE 0471 Part 2)
650 °C/1 mm thick (push-through membrane and seal material) to VDE 0471 Part 2)
Cover Material: Glass-fiber reinforced polycarbonate
10.2.3.2 Verification of Resistance of Insulating Materials to Normal Heat: Meets the product standard's requirements.
10.2.3.3 Resist. of Insul. Mat. to Abnormal Heat/Fire by Internal Elect. Effects: Meets the product standard's requirements.
Impact Resistance: IK06 (according to EN 50102)
10.9.2 Power-Frequency Electric Strength: Is the panel builder's responsibility.
Degree of Protection: IP65
10.7 Internal Electrical Circuits and Connections: Is the panel builder's responsibility.
10.10 Temperature Rise: The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
Mounting Depth: 79 mm
Enclosure Material: Plastic
1 Ω x 10¹³ (Surface resistance to IEC 60093)
Type: Basic enclosure
10.2.2 Corrosion Resistance: Meets the product standard's requirements.
10.2.4 Resistance to Ultra-Violet (UV) Radiation: Please enquire
10.2.7 Inscriptions: Meets the product standard's requirements.
Radiated Heat Dissipation with Separate Mounting: 12.5 W (at an ambient temperature of 20 °C)
Surface Treatment: Resistant to corrosion
Model: Surface mounting
