My Part Number:
Part Number: K150/4
Manufacturer Code: 34509
Multiples of: 1 | Minimum Order: 1

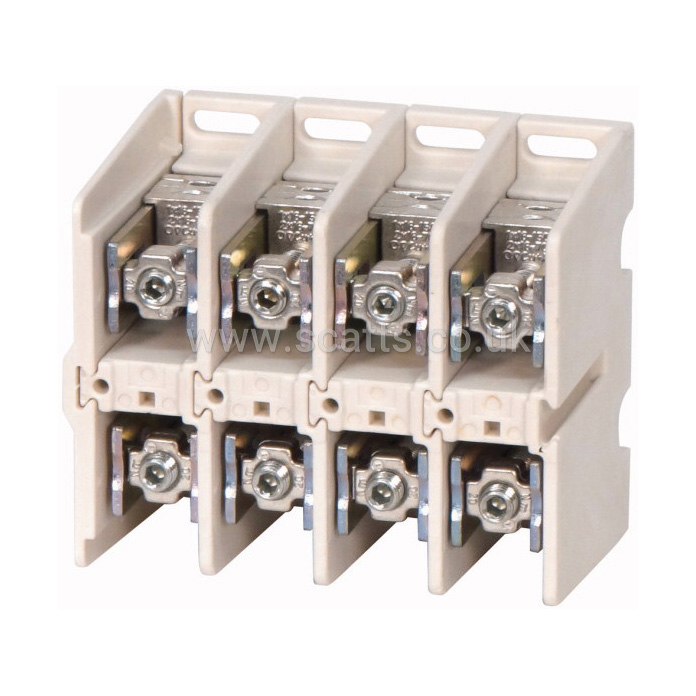

K150/4 - Connection terminal, 250A, 4p, flat/round
K connecting terminals, for AL and CU, one side round and the other side flat, rated operational current Ie=250 A, poles=4, terminal capacities: Copper round cable stranded, sectoral stranded, round cable solid, sectoral solid and aluminium round conductor solid, sectoral solid=1x35-150 mm² or 2x16-70 or aluminum sectoral solid=1x50-120 or 2x35-50. Other side: copper band 1x(4x16x0.8) to 2x(6x16x0.8) or Cu bar=18x4 mm, notes.
Brand |
EATON MOELLER ELECTRIC |
|
£331.61
per 1 (ex. VAT)£397.93
per 1 (inc. VAT)
K150/4 - Connection terminal, 250A, 4p, flat/round
K connecting terminals, for AL and CU, one side round and the other side flat, rated operational current Ie=250 A, poles=4, terminal capacities: Copper round cable stranded, sectoral stranded, round cable solid, sectoral solid and aluminium round conductor solid, sectoral solid=1x35-150 mm² or 2x16-70 or aluminum sectoral solid=1x50-120 or 2x35-50. Other side: copper band 1x(4x16x0.8) to 2x(6x16x0.8) or Cu bar=18x4 mm, notes.
Brand |
EATON MOELLER ELECTRIC |
|
