My Part Number:
Part Number: NZM1-XAD160
Manufacturer Code: 104554
Multiples of: 1 | Minimum Order: 1

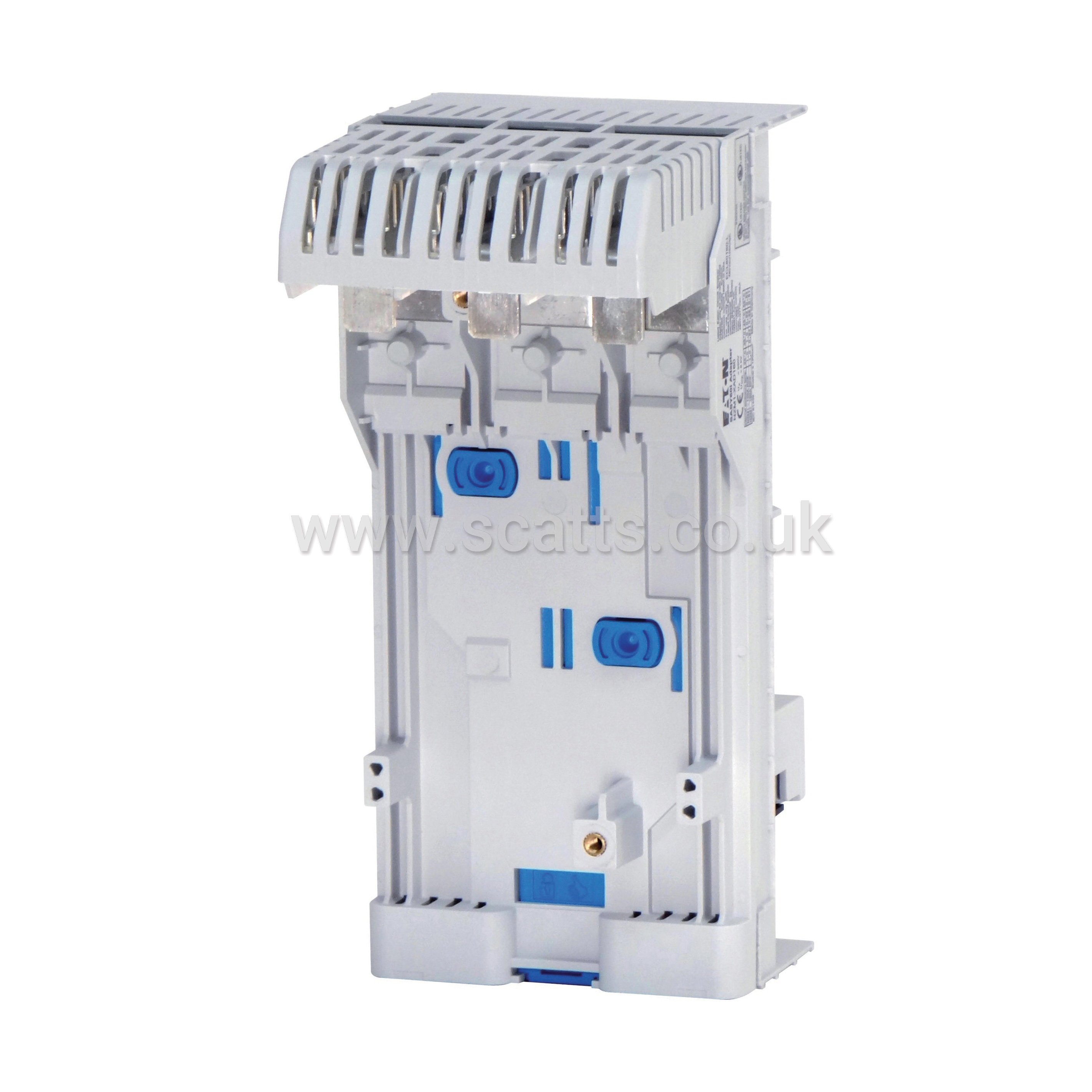

Eaton xEffect SASY 60i Enclosures Switch- & Controlgear Enclosure. Busbar adapter, 3p, for NZM1, 160A, UL508
Type: 60 mm system, Busbar adapters for NZM, Compact system
Features: Self-extinguishing acc. UL 94
Voltage Rating (UL CSA 13): Max. 600 V AC
Adapter Width: 92 mm
Busbar Adapter Width: 92 mm
Busbar Distance: 60 mm
Busbar Thickness - Max: 10 mm
Busbar Thickness - Min: 5 mm
Nominal Current: 160 A
Rail Width: 30 mm
Voltage Rating At AC: 690 V AC
Number Of Poles: Three-pole
Rated Operational Current For Specified Heat Dissipation (IN): 125 A
Electric Connection Type: Other
Equipment Heat Dissipation, Current-Dependent PVID: 11.3 W
Used With: N(S)1, PN1, NZM1, Feeder circuits, 60 mm system, Busbar adapters for NZM, Compact system
Creepage Resistance: CTI 200
Degree Of Protection: Feeder circuits
Functions: Current limiting circuit breaker, refer to approbation report, Component adapter for circuit breakers and switch-disconnector, Busbar adapters for NZM
Temperature Resistance: Up to 120 °C
Mounting Rail Armament: None
Rated Operation Current (IE): 160 A
Suitable For: Surface mounting on flat copper busbars 12 – 30 x 5 – 10, double T and triple T profile
Brand |
EATON MOELLER ELECTRIC |
|
£168.83
per 1 (ex. VAT)£202.60
per 1 (inc. VAT)
