Part Number: P3-100/I5/SVB/N
Manufacturer Code: 207379
Multiples of: 1 | Minimum Order: 1

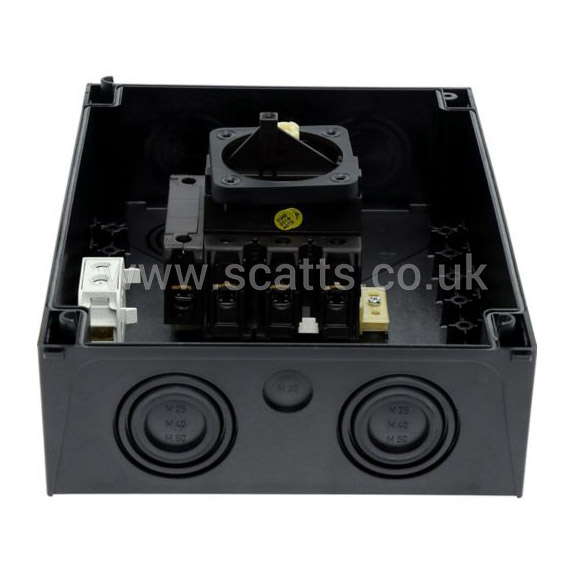

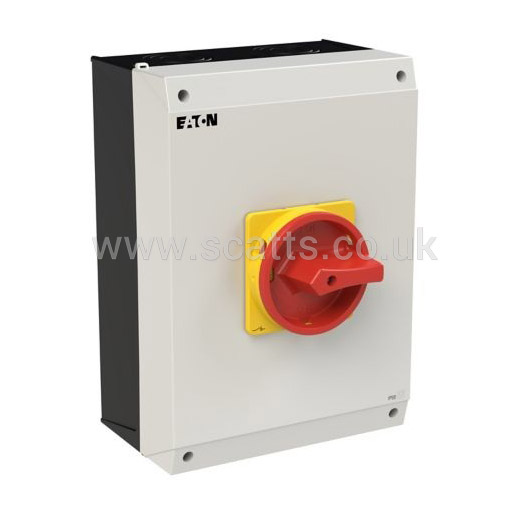

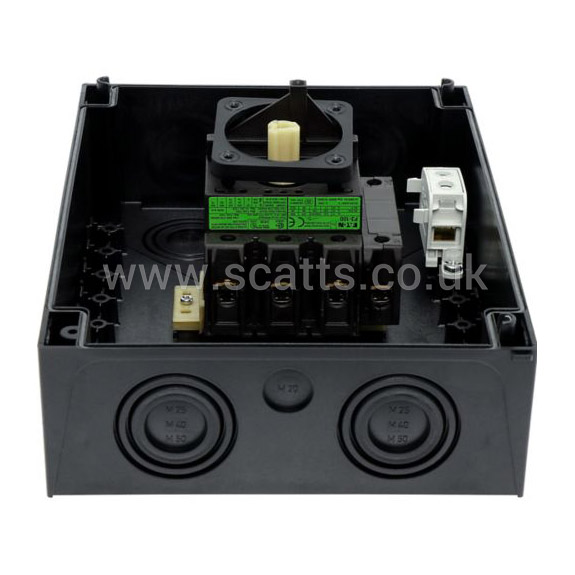

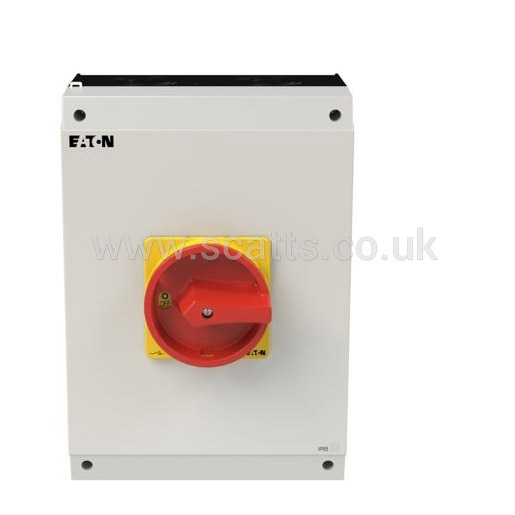

The Eaton Moeller P3-100/I5/SVB/N is a robust 100A, 3-pole + Neutral surface-mount switch-disconnector (isolator) designed for safe, heavy-duty industrial on/off isolation and emergency stop functionality. It features an IP65-rated, lockable red/yellow rotary handle, making it ideal for harsh, wash-down, or industrial machinery environments requiring high safety compliance.
Key Features & Benefits:
• High Performance: 100A rated operational current (AC-23A) with a max operating voltage of \(690V\) AC.
• Safety & Compliance: Features a red rotary handle and yellow locking ring, suitable for EMERGENCY SWITCHING OFF. It is lockable in the 0 (Off) position to prevent unauthorized operation.
• Durable Enclosure: IP65-rated surface-mount enclosure ensures complete protection against dust ingress and low-pressure water jets.
• Robust Construction: Designed for demanding industrial applications (IEC/EN 60947-3, UL, CSA) with durable screw terminals, accommodating cable sizes up to \(35\text{mm}^{2}\).
• Versatile Usage: Ideal for use as a main switch, maintenance/service switch, or safety switch.
Technical Specifications:
• Poles: 3 + Neutral (3P+N)
• Rated Uninterrupted Current (\(I_{u}\)): 100A
• Max AC-23A Power (400V): 55kW
• IP Rating: IP65
• Terminals: M5 screw terminals
Brand |
EATON MOELLER ELECTRIC |
|
£238.21
per 1 (ex. VAT)£285.85
per 1 (inc. VAT)
