My Part Number:
Part Number: P3-100/SE3/SVB
Manufacturer Code: 197370
Multiples of: 1 | Minimum Order: 1

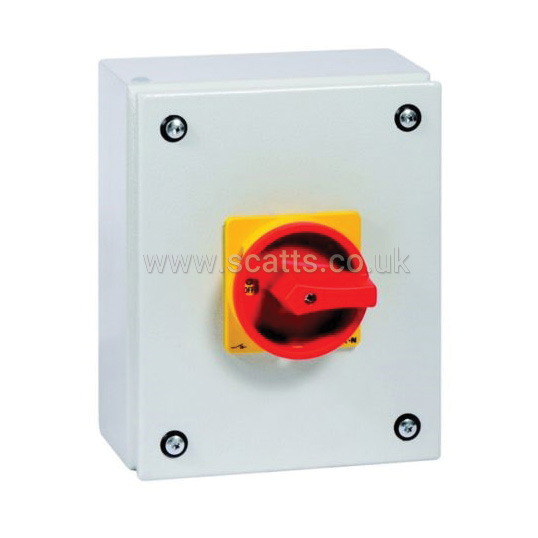

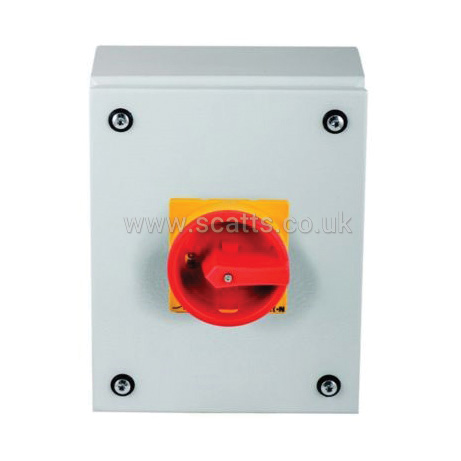

P3-100/SE3/SVB - Main switch, P3, 100 A, surface mounting, 3 pole, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position, in steel enclosure
Degree of protection: NEMA 12
Degree of protection (front side): IP65
Lifespan, mechanical: 100,000 Operations
Mounting method: Surface mounting
Mounting position: As required
Operating frequency: 1200 Operations/h
Overvoltage category: III
Pollution degree: 3
Rated impulse withstand voltage (Uimp): 6000 V AC
Safe isolation: 440 V AC, Between the contacts, According to EN 61140
Safety parameter (EN ISO 13849-1): B10d values as per EN ISO 13849-1, table C.1
Shock resistance: 15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 20 ms
Suitable for: Ground mounting
Switching angle: 90 °
Brand |
EATON MOELLER ELECTRIC |
|
£385.61
per 1 (ex. VAT)£462.73
per 1 (inc. VAT)
