My Part Number:
Part Number: EX215
Manufacturer Code: +EX215U501
Multiples of: 1 | Minimum Order: 1
EX200 SERIES, 64 BIT HMI, PANEL MOUNTED, 15.6" PCAP TOUCHSCREEN, 1920 X 1080, 2 X ETHERNET PORTS, IP66, PLASTIC BEZEL
Brand |
EXOR INTERNATIONAL |
|
Colour Depth |
16.7 million |
|
CPU |
64-bit Quad Core - 1.6 GHz |
|
Operating System |
Linux |
|
RAM |
2 GB |
|
Screen Brightness |
350 cd/m² typical |
|
Storage |
4 GB |
|
Mounting Style |
Panel Mount |
|
Application |
Indoor |
|
Screen Size |
15" (inches) |
|
Resolution |
1920 x 1080 |
|
Display Type |
Capacitive |
|
Optional Features |
CODESYS |
|
Connectivity |

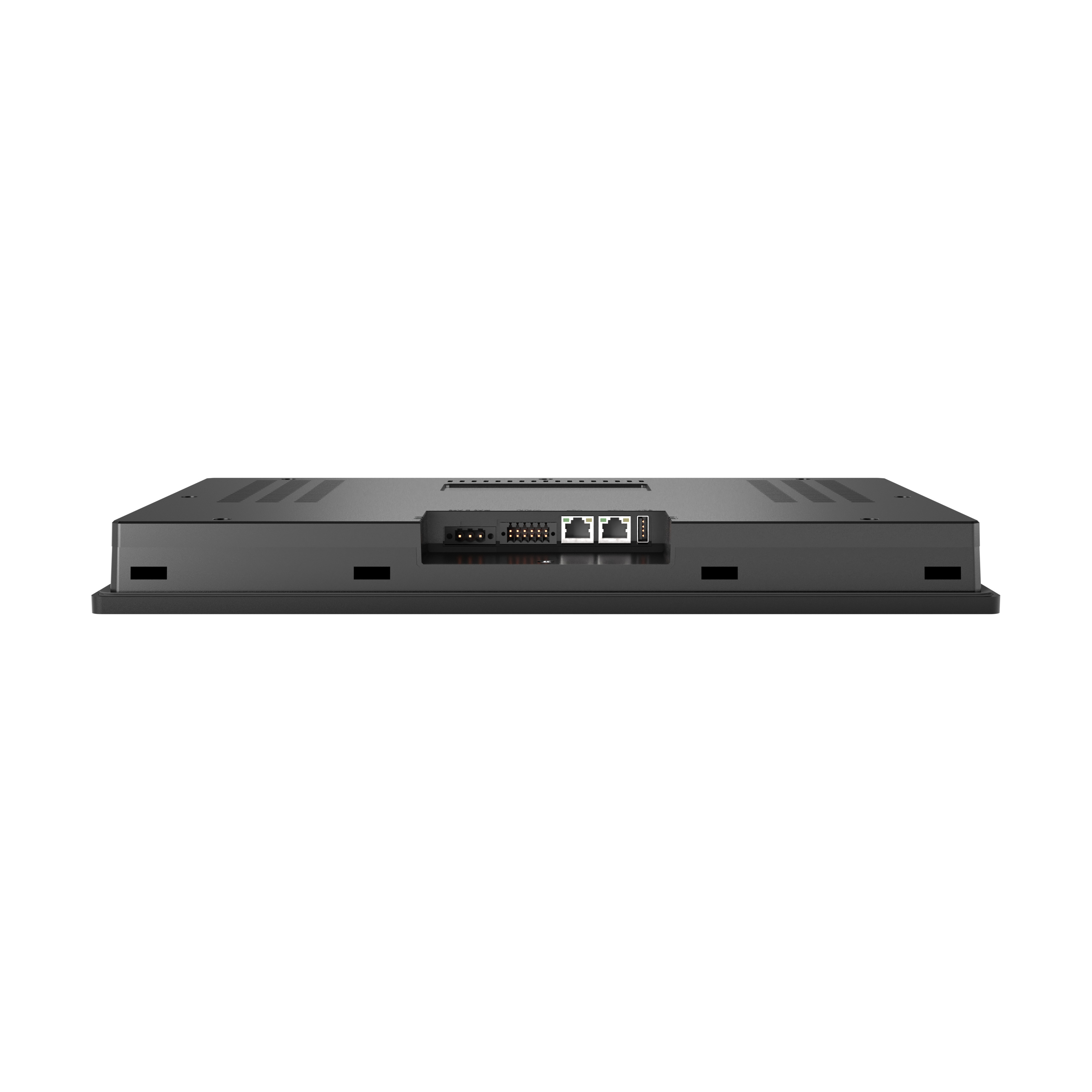

Buzzer x 1, Can Port x 1, Ethernet Port x 2, Indicator Light x 1, Serial Port x 1, USB Port x 1 |
|
Electrical Connection |
24 V DC Power Connector |
|
Height |
267 mm |
|
Width |
422 mm |
|
Depth |
35+10 mm |
|
Weight |
3.2 kg |
|
IP Rating |
IP66 |
|
Body Material |
Plastic |
|
Minimum Operating Temperature |
-20 °C |
|
Maximum Operating Temperature |
55 °C |
Approvals |
CE, UL - Canada & US, RCM |
£1,599.00
per 1 (ex. VAT)£1,918.80
per 1 (inc. VAT)EX200 SERIES, 64 BIT HMI, PANEL MOUNTED, 15.6" PCAP TOUCHSCREEN, 1920 X 1080, 2 X ETHERNET PORTS, IP66, PLASTIC BEZEL
