My Part Number:

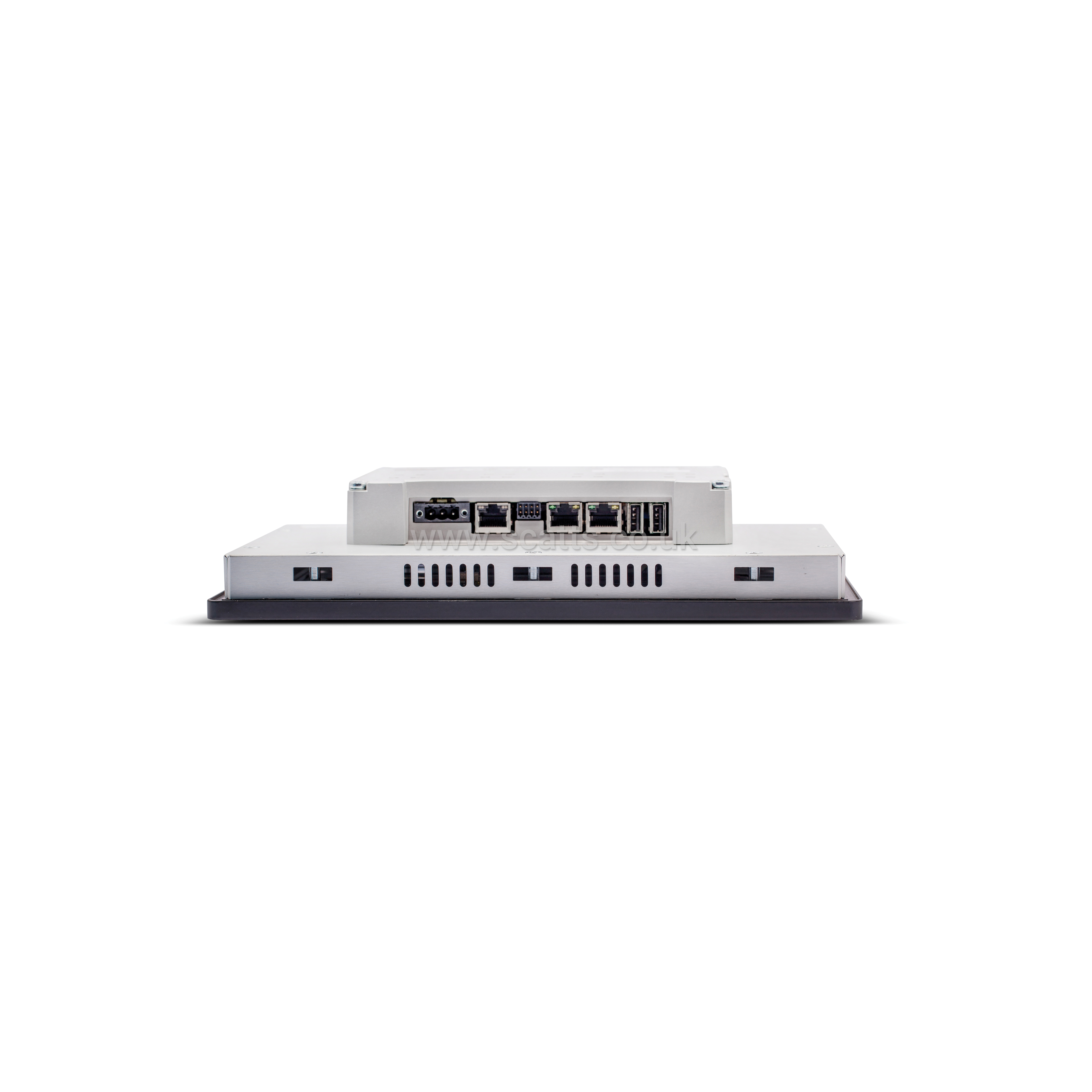

Part Number: EX710M-U5P1
Manufacturer Code: +EX710MU5P1
Multiples of: 1 | Minimum Order: 1
eX700M | Powerful Multi-purpose HMIs
The eX710M can be used as a powerful HMI, PLC or gateway, offering high performance, high-resolution multitouch PCAP glass display that is scratch, UV and chemical resistant.
A powerful 64-bit quad core CPU that ensures JMobile applications are running in their optimal environment for the highest performance.
The eX710M has many important certifications that make it possible to use it in factory and extreme working environments where rugged instruments are critical.
• 10.1” TFT Projected capacitive touchscreen. True glass design.
• Multitouch operation
• 64-bit quad core CPU
• Operating Temperature -20°C to +60°C
• System and Project Rapid Boot-Up
• CODESYS V3 with Ethernet I/O Stacks
• Resistant to Scratches, UV and Chemicals
• Network Separation possibile via Up to 3 Ethernet
• Networks with different IP addresses
• Plug in Modules for System Expansion
Brand |
EXOR INTERNATIONAL |
|
Colour Depth |
16 Million |
|
CPU |
64-bit Quad Core - 1.6 GHz |
|
Operating System |
Linux |
|
RAM |
2 GB |
|
Screen Brightness |
500 cd/m² typical |
|
Storage |
4 GB |
|
Mounting Style |
Panel Mount |
|
Application |
Indoor |
|
Screen Size |
10" (inches) |
|
Resolution |
1280 x 800 |
|
Display Type |
Capacitive |
|
Optional Features |
CODESYS |
|
Connectivity |
Ethernet Port x 3, Expansion Modules x 2, SD Card, Serial Port x 1, USB Port x 2 |
|
Electrical Connection |
24 V DC Power Connector |
|
Height |
197 mm |
|
Width |
282 mm |
|
Depth |
56+8 mm |
|
Weight |
1.8 kg |
|
IP Rating |
IP66 |
|
Body Material |
Aluminium |
|
Minimum Operating Temperature |
-20 °C |
|
Maximum Operating Temperature |
60 °C |
Hazardous Area Certification |
Zone 2, Zone 22 |
|
Approvals |
NEC, CE, IECEx, UL - Canada & US, RCM, DNV |
£1,817.75
per 1 (ex. VAT)£2,181.30
per 1 (inc. VAT)
