My Part Number:

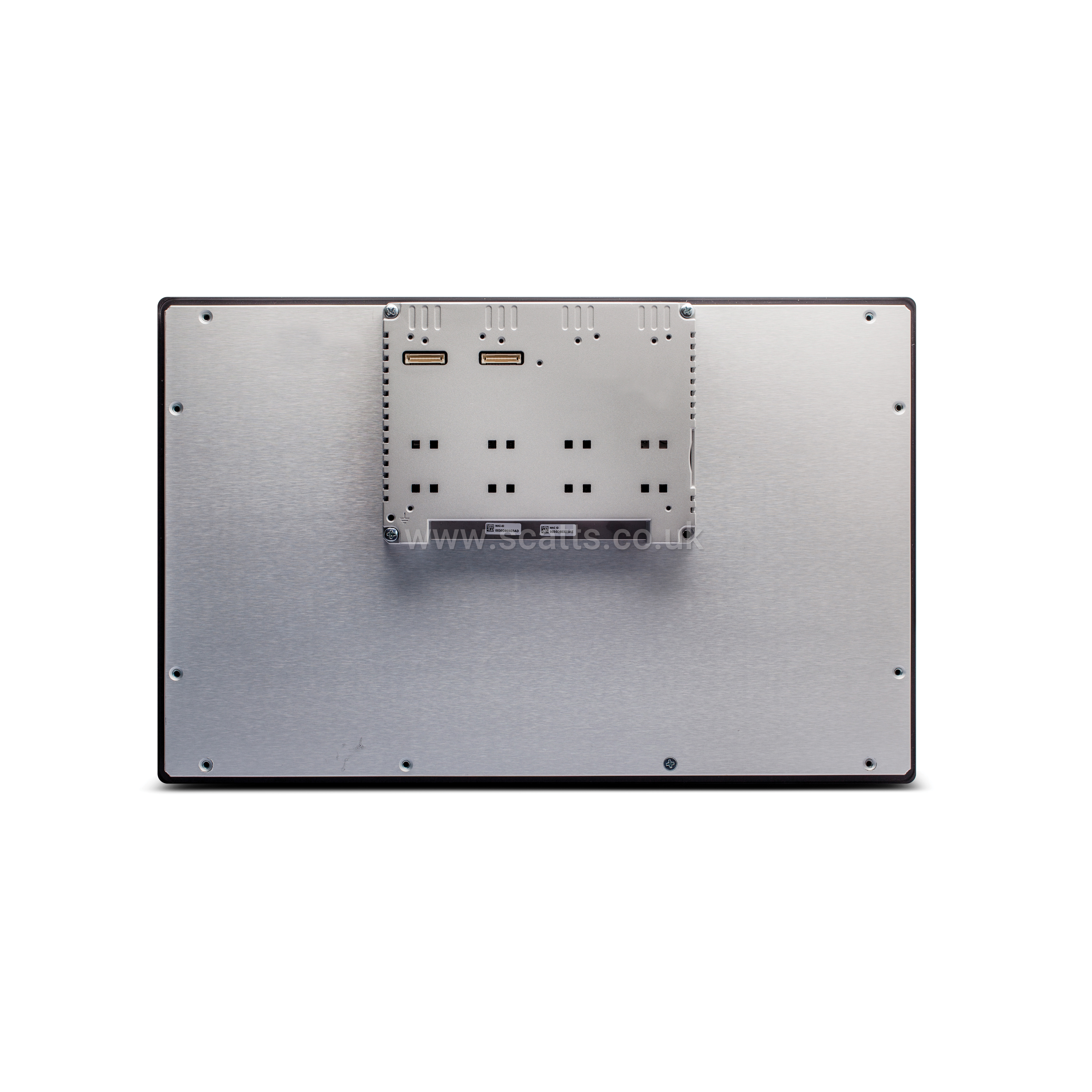

Part Number: EX715M-U5P1
Manufacturer Code: +EX715MU5P1
Superseded by: EX715MH-U5P1
Multiples of: 1 | Minimum Order: 1
eX700M | Powerful Multi-purpose HMIs
The eX715M touch screen panel is a complete solution for system integration due to its multiple functionalities; it can be used as HMI, gateway and PLC.
The basic concept of the product is to be able to allow an appropriate and easy implementation of IIoT and thus comply with the requirements of Industry 4.0.
A powerful 64-bit quad core CPU that ensures JMobile applications are running in their optimal environment for the highest performance.
• 15.6” TFT Projected capacitive touchscreen. True glass design.
• Multitouch operation
• 64-bit quad core CPU
• Operating Temperature -20°C to +60°C
• System and Project Rapid Boot-Up
• CODESYS V3 with Ethernet I/O Stacks
• Resistant to Scratches, UV and Chemicals
• Network Separation possibile via Up to 3 Ethernet
• Networks with different IP addresses
• Plug in Modules for System Expansion
Brand |
EXOR INTERNATIONAL |
|
Colour Depth |
16 Million |
|
CPU |
64-bit Quad Core - 1.6 GHz |
|
Operating System |
Linux |
|
RAM |
2 GB |
|
Screen Brightness |
400 cd/m² typical |
|
Storage |
4 GB |
|
Mounting Style |
Panel Mount |
|
Application |
Indoor |
|
Screen Size |
15" (inches) |
|
Resolution |
1366 x 768 |
|
Display Type |
Capacitive |
|
Optional Features |
CODESYS |
|
Connectivity |
Ethernet Port x 3, Expansion Modules x 2, SD Card, Serial Port x 1, USB Port x 2 |
|
Electrical Connection |
24 V DC Power Connector |
|
Height |
267 mm |
|
Width |
422 mm |
|
Depth |
56+8 mm |
|
Weight |
4.1 kg |
|
IP Rating |
IP66 |
|
Body Material |
Aluminium |
|
Minimum Operating Temperature |
-20 °C |
|
Maximum Operating Temperature |
60 °C |
Hazardous Area Certification |
Zone 2, Zone 22 |
|
Approvals |
NEC, CE, IECEx, UL - Canada & US, RCM, DNV |
£2,799.72
per 1 (ex. VAT)£3,359.66
per 1 (inc. VAT)
