My Part Number:
Part Number: EX715MG-U5PW
Manufacturer Code: +EX715MGU5PW
Multiples of: 1 | Minimum Order: 1

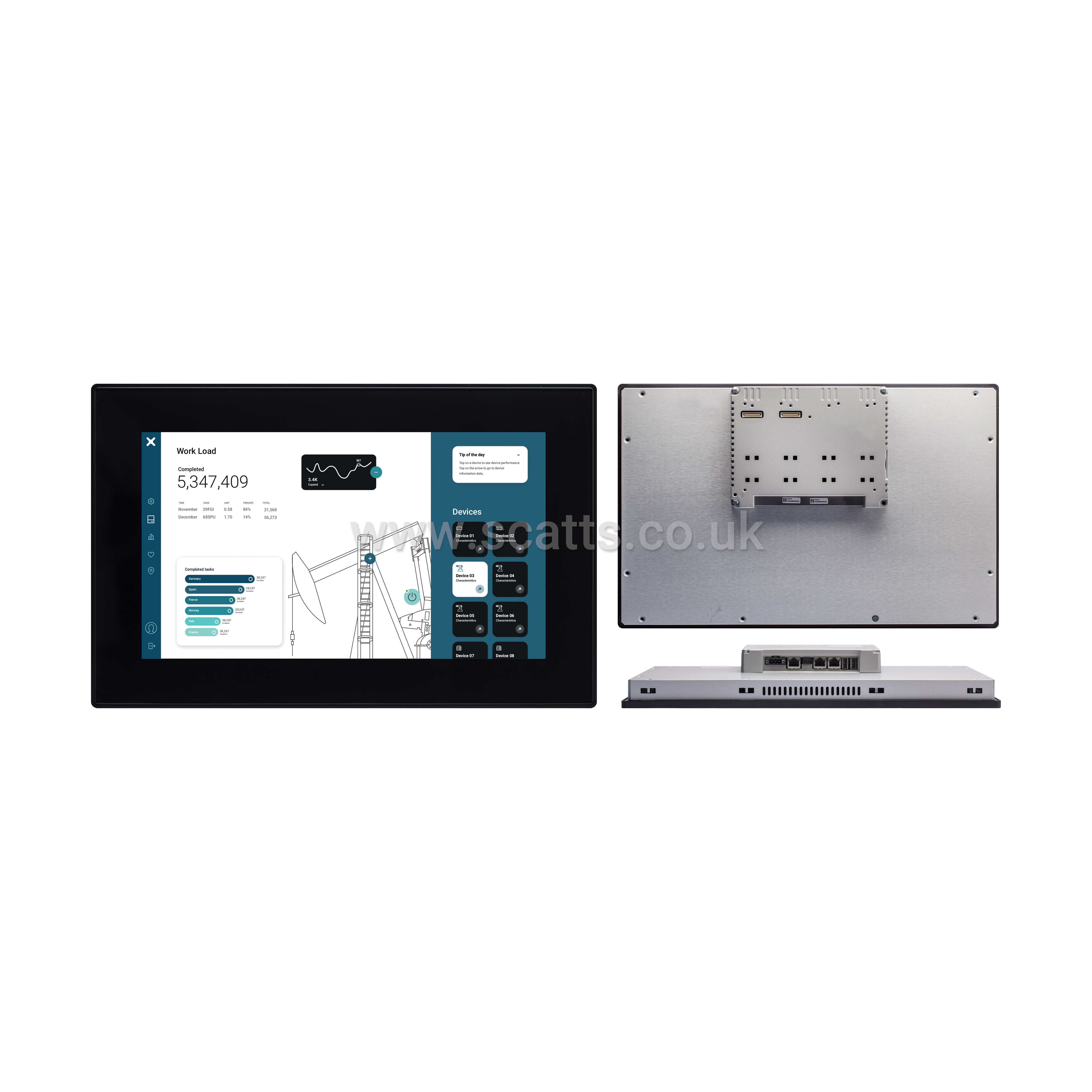

eX715MG is the ideal choice for all demanding IIoT edge applications in extreme environments such as marine and process industries where powerful and performing HTML5 web browser is needed.
The glass projected capacitive touchscreen and the brilliant 15 inch widescreen display with a resolution of 1920x1080 are bonded to guarantee the highest optical performance and resistance in such environments.
This product includes a Chromium based HTML5 browser with easy to use browser setting facilities.
Supports Corvina secure connectivity.
Key features
• Chromium based HTML5 Browser
• Easy to use browser setting application
• Readable in Full Sunlight
• Projected capacitive touchscreen with optical bonding. Multitouch operation
• 15.6 TFT color display
• Full HD resolution 1920x1080 pixel
• Operating Temperature -30°C to +70°C
• UL UL61010-1 and cULus: Class 1 Div 2 approvals
Brand |
EXOR INTERNATIONAL |
|
Colour Depth |
16 Million |
|
CPU |
64-bit Quad Core - 1.6 GHz |
|
Operating System |
Linux |
|
RAM |
2 GB |
|
Screen Brightness |
700 cd/m² typical |
|
Storage |
4 GB |
|
Mounting Style |
Panel Mount |
|
Application |
Indoor |
|
Screen Size |
15" (inches) |
|
Resolution |
1920 x 1080 |
|
Display Type |
Capacitive |
|
Optional Features |
CODESYS |
|
Connectivity |
Buzzer x 1, Ethernet Port x 3, Expansion Modules x 2, SD Card, Serial Port x 1, USB Port x 2 |
|
Electrical Connection |
24 V DC Power Connector |
|
Height |
267 mm |
|
Width |
422 mm |
|
Depth |
56+8 mm |
|
Weight |
4.1 kg |
|
IP Rating |
IP66 |
|
Body Material |
Aluminium |
|
Minimum Operating Temperature |
-30 °C |
|
Maximum Operating Temperature |
70 °C |
Approvals |
NEC, CE, IECEx, UL - Canada & US, RCM, DNV |
£2,858.90
per 1 (ex. VAT)£3,430.68
per 1 (inc. VAT)
eX715MG is the ideal choice for all demanding IIoT edge applications in extreme environments such as marine and process industries where powerful and performing HTML5 web browser is needed.
The glass projected capacitive touchscreen and the brilliant 15 inch widescreen display with a resolution of 1920x1080 are bonded to guarantee the highest optical performance and resistance in such environments.
This product includes a Chromium based HTML5 browser with easy to use browser setting facilities.
Supports Corvina secure connectivity.
Key features
• Chromium based HTML5 Browser
• Easy to use browser setting application
• Readable in Full Sunlight
• Projected capacitive touchscreen with optical bonding. Multitouch operation
• 15.6 TFT color display
• Full HD resolution 1920x1080 pixel
• Operating Temperature -30°C to +70°C
• UL UL61010-1 and cULus: Class 1 Div 2 approvals
