My Part Number:
Part Number: JSMART707M-WEB
Manufacturer Code: +JS707GB2U5PW
Multiples of: 1 | Minimum Order: 1

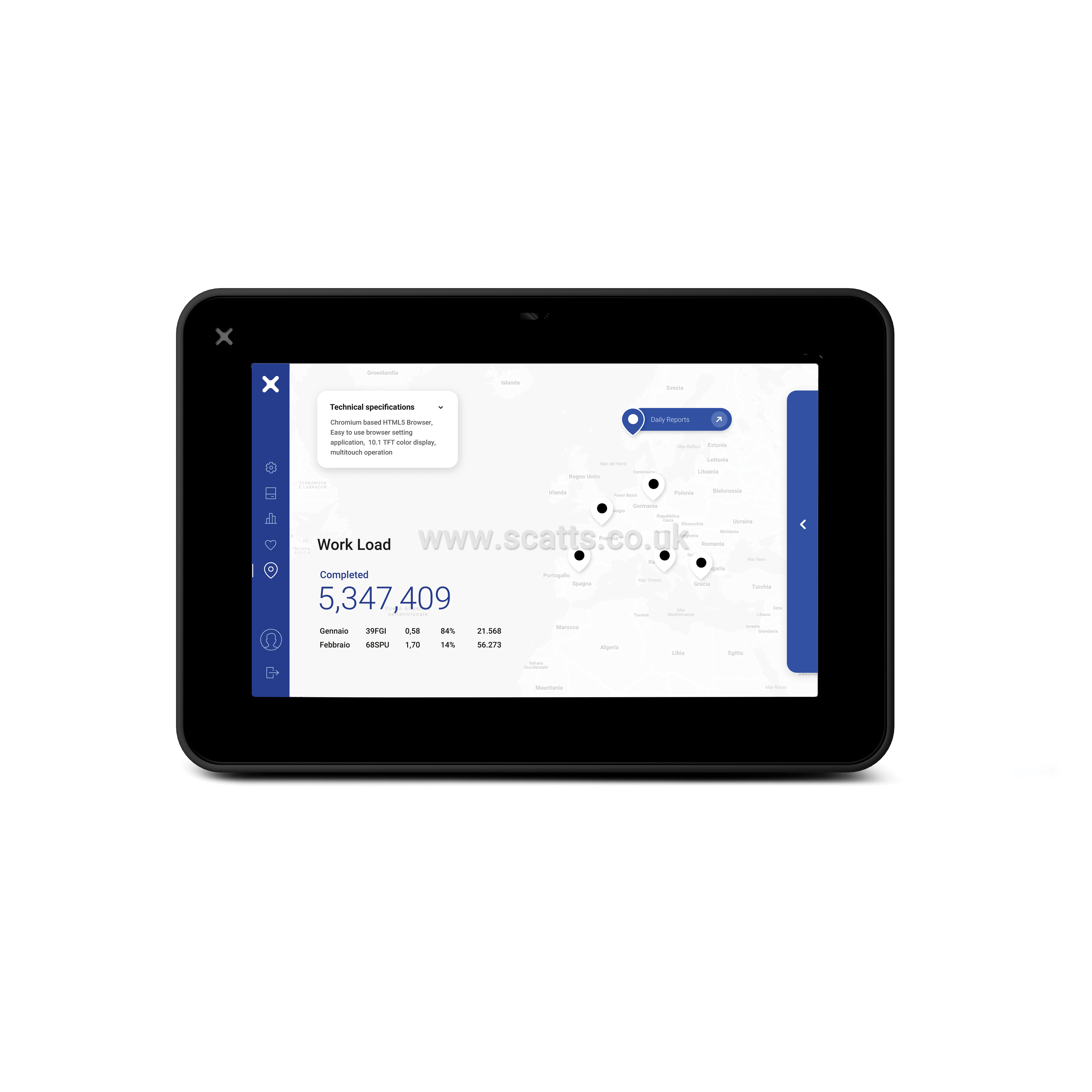

JSmart707M Web
The special features of web based HMI JSmart707M are the sleek and elegant design, the 7 inch multi-touch PCAP touchscreen display with robust glass front, and the ability to connect the device via a single Power-over-Ethernet (PoE) cable.
This technology allows maximum flexibility and efficiency in installation as well as full IP67 protection with the use of appropriate accessories and connectors.
The Wi-Fi interface improves the integration capability of the device while NFC expands the possible applications.
JSmart707M Web HMI excels in all IoT edge applications in industrial, ship and building automation where a powerful HTML5 web browser and devices that can operate in critical areas are required.
JSmart707M Web include a Chromium-based HTML5 browser that supports kiosk mode operation and support Corvina Cloud secure connectivity.
Brand |
EXOR INTERNATIONAL |
|
Colour Depth |
16 Million |
|
CPU |
64-bit Quad Core - 1.6 GHz |
|
Operating System |
Linux |
|
RAM |
2 GB |
|
Screen Brightness |
400 cd/m² typical |
|
Storage |
8 GB |
|
Mounting Style |
Field Mount |
|
Application |
Indoor |
|
Screen Size |
7" (inches) |
|
Resolution |
1024 x 600 |
|
Display Type |
Capacitive |
|
Optional Features |
CODESYS |
|
Connectivity |
Ethernet Port - 10/100 PoE, NFC, USB Port x 1, Wi-Fi |
|
Electrical Connection |
24 V DC Power Connector |
|
Height |
131.6 mm |
|
Width |
195.2 mm |
|
Depth |
16.5 mm |
|
Weight |
0.7 kg |
|
IP Rating |
IP67 |
|
Body Material |
Plastic |
|
Minimum Operating Temperature |
-20 °C |
|
Maximum Operating Temperature |
55 °C |
Approvals |
CE, UL - Canada & US, RCM |
£1,263.90
per 1 (ex. VAT)£1,516.68
per 1 (inc. VAT)
