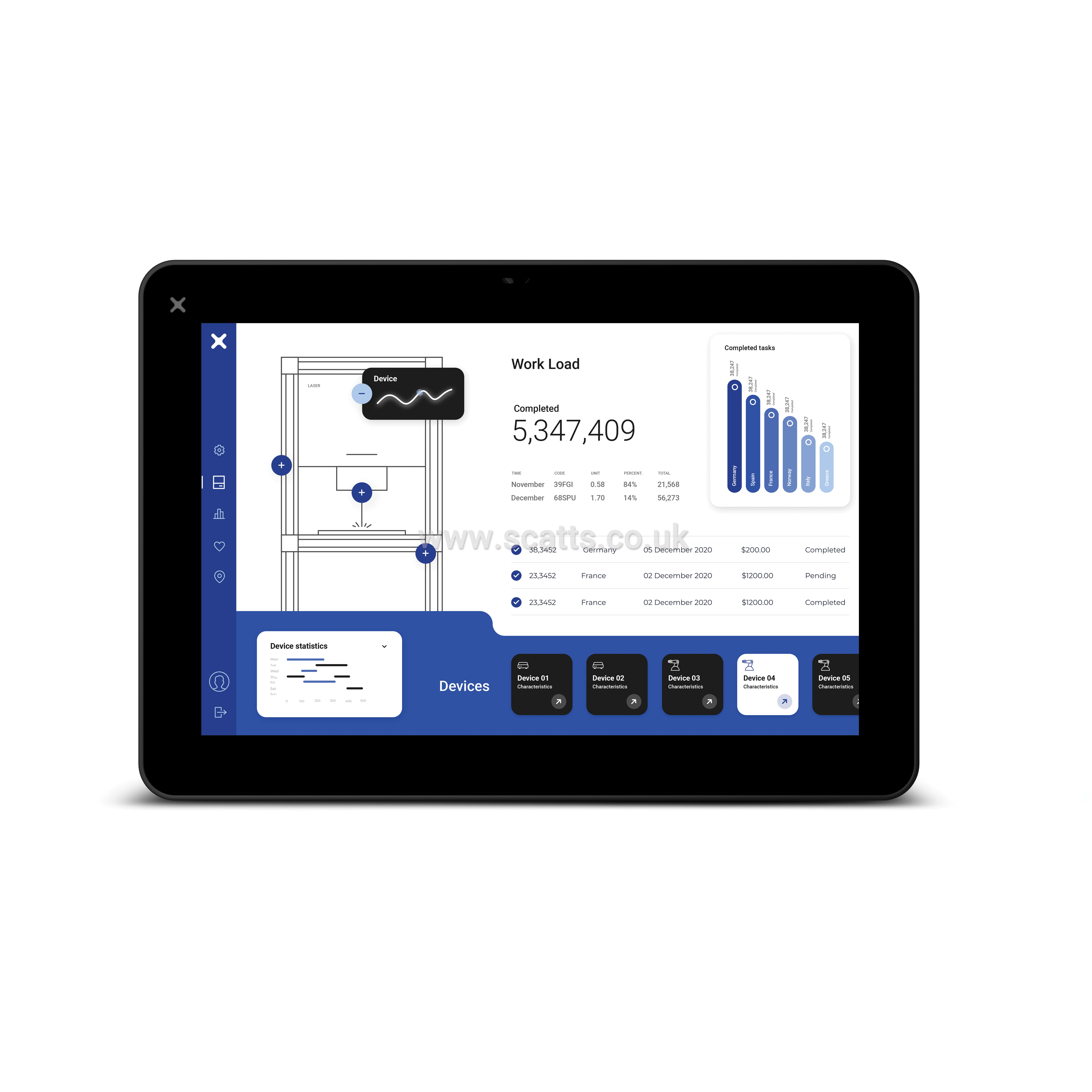

JSmart710M Web
The JSmart710M Web excels in all IoT edge applications in industrial, ship and building automation where a powerful HTML5 web browser and devices that can operate in critical areas are required.
JSmart710M Web include a Chromium-based HTML5 browser that supports kiosk mode operation and support Corvina Cloud secure connectivity.
The special features of this web based HMI are the sleek and elegant design, the 10 inch multi-touch capacitive touchscreen display with robust glass front, and the ability to connect the device via a single Power-over-Ethernet (PoE) cable.
This technology allows maximum flexibility and efficiency in installation as well as full IP67 protection with the use of appropriate accessories and connectors.
The Wi-Fi interface improves the integration capability of the device while NFC expands the possible applications.
Brand |
EXOR INTERNATIONAL |
|
Colour Depth |
16 Million |
|
CPU |
64-bit Quad Core - 1.6 GHz |
|
Operating System |
Linux |
|
RAM |
2 GB |
|
Screen Brightness |
400 cd/m² typical |
|
Storage |
8 GB |
|
Mounting Style |
Field Mount |
|
Application |
Indoor |
|
Screen Size |
10" (inches) |
|
Resolution |
1280 x 800 |
|
Display Type |
Capacitive |
|
Optional Features |
CODESYS |
|
Connectivity |
Ethernet Port - 10/100 PoE, NFC, USB Port x 1, Wi-Fi |
|
Electrical Connection |
24 V DC Power Connector |
|
Height |
183.1 mm |
|
Width |
264.5 mm |
|
Depth |
16.5 mm |
|
Weight |
1.2 kg |
|
IP Rating |
IP67 |
|
Body Material |
Plastic |
|
Minimum Operating Temperature |
-20 °C |
|
Maximum Operating Temperature |
55 °C |
Approvals |
CE, UL - Canada & US, RCM |
£1,813.90
per 1 (ex. VAT)£2,176.68
per 1 (inc. VAT)
