My Part Number:
Part Number: JSMART715M
Manufacturer Code: +JS715GD2U5P1
Multiples of: 1 | Minimum Order: 1

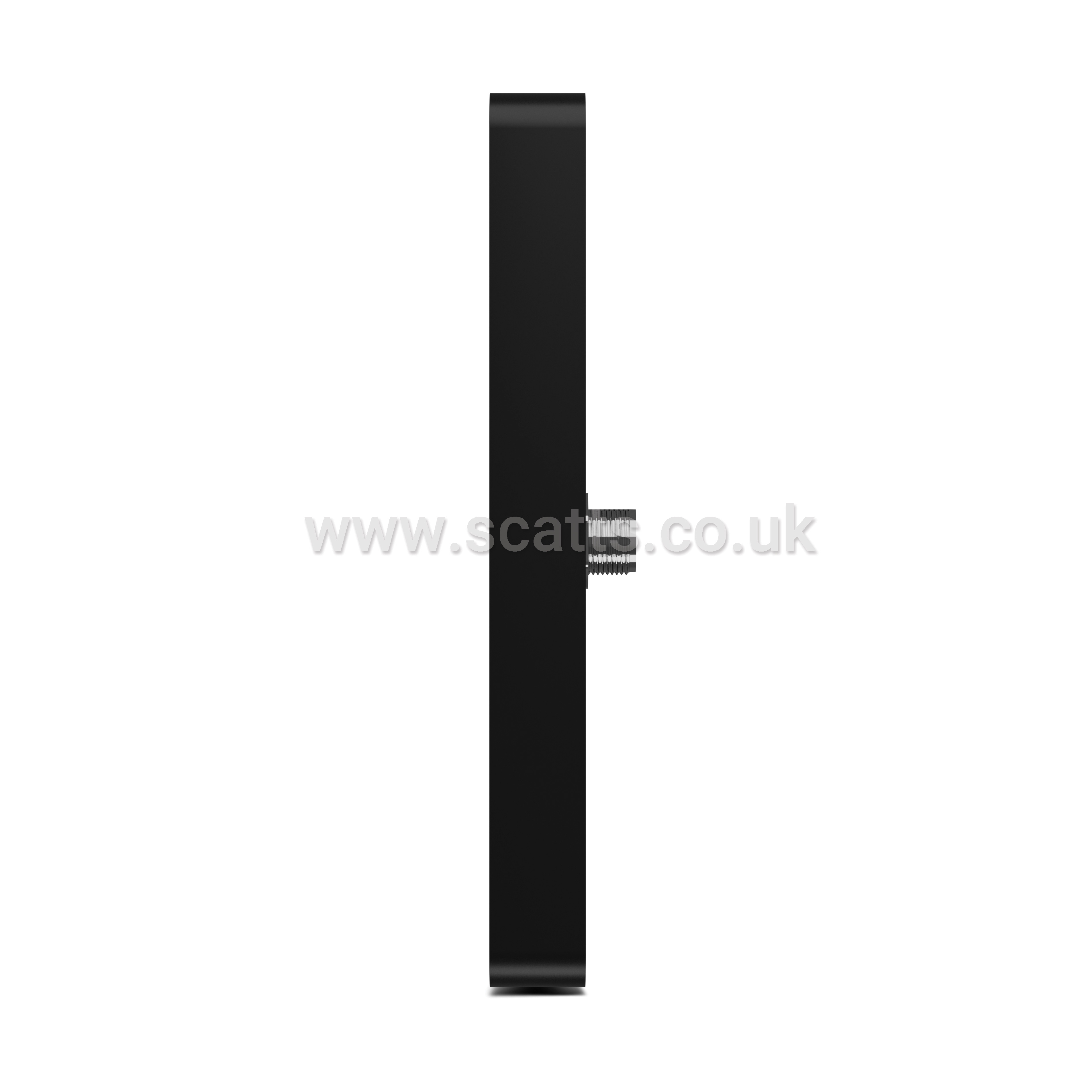

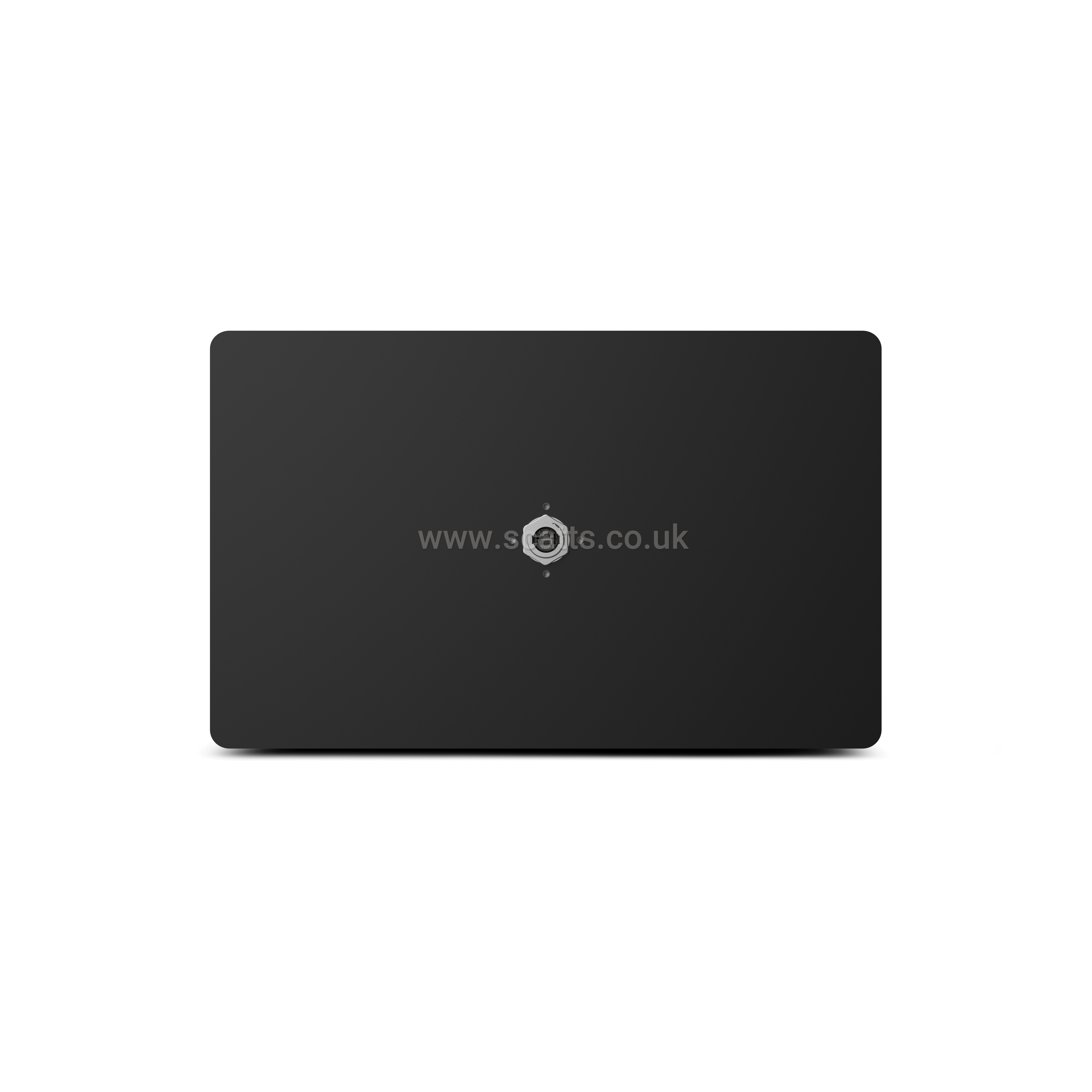

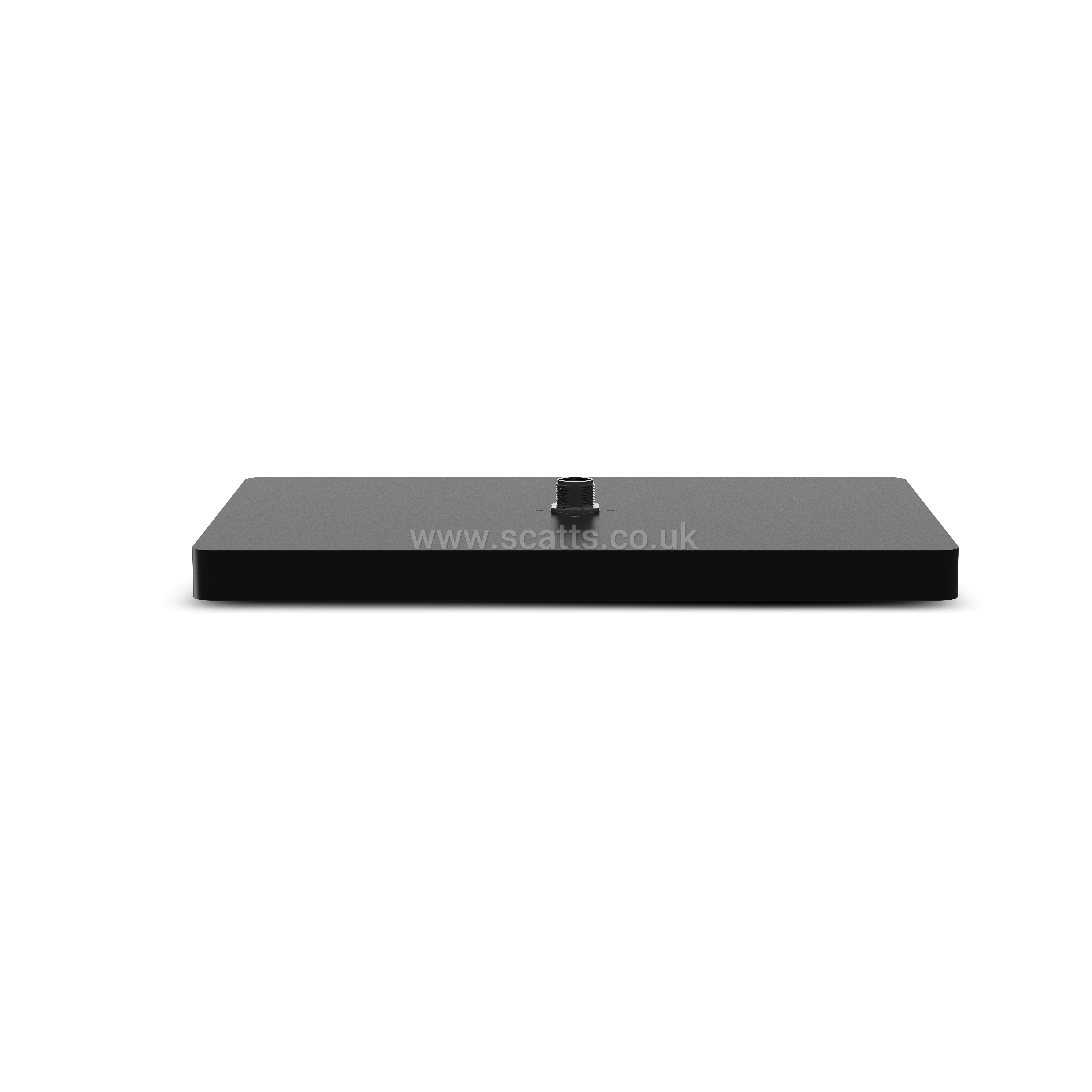

JSMART 700M SERIES, 64 BIT HMI, FIELD MOUNTED, 15.6" PCAP TOUCHSCREEN, 1366 X 768, POE PORT, IP67, METAL BEZEL
Brand |
EXOR INTERNATIONAL |
|
Colour Depth |
16 Million |
|
CPU |
64-bit Quad Core - 1.6 GHz |
|
Operating System |
Linux |
|
RAM |
2 GB |
|
Screen Brightness |
400 cd/m² typical |
|
Storage |
8 GB |
|
Mounting Style |
Field Mount |
|
Application |
Indoor |
|
Screen Size |
15" (inches) |
|
Resolution |
1366 x 768 |
|
Display Type |
Capacitive |
|
Optional Features |
CODESYS |
|
Connectivity |
Ethernet Port - 10/100 PoE, NFC, USB Port x 1, Wi-Fi |
|
Electrical Connection |
24 V DC Power Connector |
|
Height |
248 mm |
|
Width |
398.6 mm |
|
Depth |
26.5 mm |
|
Weight |
4.0 kg |
|
IP Rating |
IP67 |
|
Body Material |
Plastic |
|
Minimum Operating Temperature |
-20 °C |
|
Maximum Operating Temperature |
55 °C |
Approvals |
CE, UL - Canada & US, RCM |
£2,363.90
per 1 (ex. VAT)£2,836.68
per 1 (inc. VAT)JSMART 700M SERIES, 64 BIT HMI, FIELD MOUNTED, 15.6" PCAP TOUCHSCREEN, 1366 X 768, POE PORT, IP67, METAL BEZEL
