My Part Number:
Part Number: X5H/HELD-HMI-3M
Manufacturer Code: +X5RYEISYY1201 / 10100610YE-0000-02
Multiples of: 1 | Minimum Order: 1

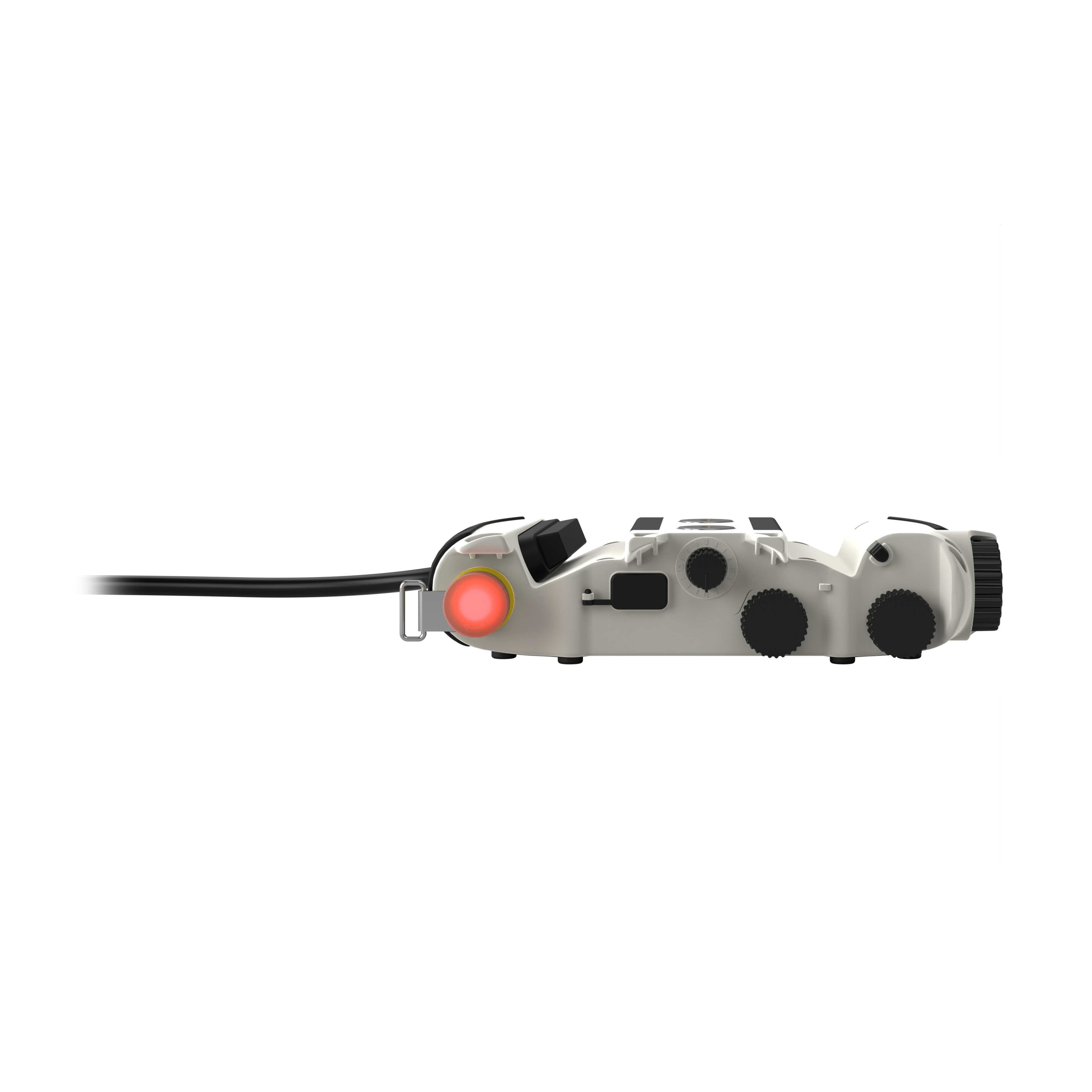

The X5 Mobile HMI is a safety-approved device with a compact and lightweight design. It is the ideal product where the fatigue of the operator is important to reduce so that human errors do not occur. The illuminated emergency stop button is a great device to guarantee safety.
Integrated devices (keyboard, potentiometers, handwheel) can be fully programmed assuring a quick use with your automation project. X5 is fully programmable with JMobile.
Equipped with a 5” display, resistive touchscreen and multitouch interface allows intuitive operability offering a great user experience.
• 5” TFT color display
• 480x272 pixel resolution, 64K colors
• Resistive touchscreen
• Emergency Stop button with illumination
• 3-Positions Enabling Switch
• 19 User-programmable Selection Keys
• 2 USB Host
• 3D Accelerometer
Brand |
EXOR INTERNATIONAL |
|
Colour Depth |
64 K |
|
CPU |
32-bit Single Core 528 MHz |
|
Operating System |
Linux |
|
RAM |
512 MB |
|
Screen Brightness |
300 cd/m² typical |
|
Storage |
4 GB |
|
Mounting Style |
Handheld |
|
Application |
Outdoor |
|
Screen Size |
5" (inches) |
|
Resolution |
480 x 272 |
|
Display Type |
Resistive |
|
Optional Features |
CODESYS, Potentiometers, Selector Switch |
|
Connectivity |
Ethernet Port x 1, USB Port x 2 |
|
Electrical Connection |
24 V DC Power Connector |
|
Height |
130 mm |
|
Width |
220 mm |
|
Depth |
50 mm |
|
Weight |
1.3 kg |
|
IP Rating |
IP64 |
|
Body Material |
Plastic |
|
Minimum Operating Temperature |
5°C |
|
Maximum Operating Temperature |
45 °C |
Approvals |
Electrical Safety, FCC, Safety Functions, CE |
£1,236.00
per 1 (ex. VAT)£1,483.20
per 1 (inc. VAT)
