My Part Number:
Part Number: XEDGES-BASIC-LIN-LT
Manufacturer Code: 102006400U-0023-01
Multiples of: 1 | Minimum Order: 1

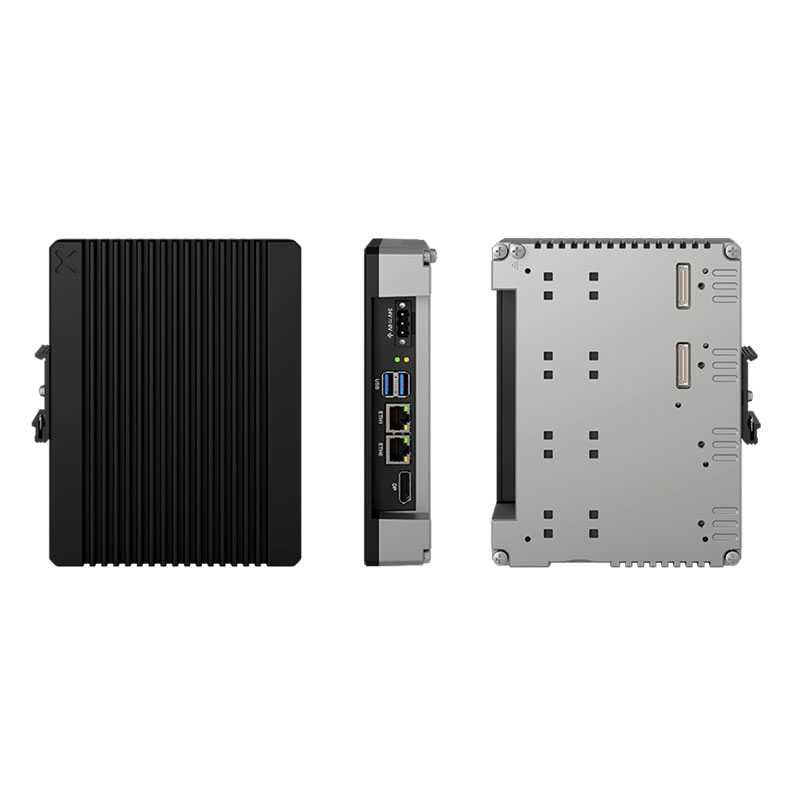

Xedge Slim
The Xedge Slim is a compact and rugged industrial PC specifically engineered for space-constrained environments. With a focus on versatility, it is ideal for edge computing applications requiring real-time performance and reliable connectivity. The device is built to operate effectively in harsh conditions, featuring a robust design that supports extended temperature ranges for continuous operation.
Key features include:
• Optimized for Compact Spaces: Designed for DIN-rail mounting, making it suitable for installations where space is limited
• Intel Atom Processors: Available with dual-core and quad-core options to match specific application needs
• Modular Architecture: Supports easy expansion with M.2 SATA SSD and Exor plug-in modules for tailored configurations
• Real-Time Capabilities: Designed to handle low-latency applications, ensuring quick responsiveness for critical tasks
Brand |
EXOR INTERNATIONAL |
|
CPU |
Intel X6214RE - 1.4 GHz |
|
RAM |
LPDDR4x up to 16 GB |
|
Storage |
EMMC 64 GB |
|
Mounting Style |
DIN Rail |
|
Optional Features |
CODESYS |
|
Connectivity |
Display I/O x 1, Ethernet Port x 2, USB Port x 2 |
|
Electrical Connection |
24 V DC Power Connector |
|
Height |
174 mm |
|
Width |
144 mm |
|
Depth |
40 mm |
|
Weight |
0.925 kg |
|
IP Rating |
IP20 |
|
Minimum Operating Temperature |
-20 °C |
|
Maximum Operating Temperature |
60 °C |
Approvals |
CE, UL - Canada & US |
£1,129.42
per 1 (ex. VAT)£1,355.30
per 1 (inc. VAT)
