My Part Number:
Part Number: AJT110
Manufacturer Code: F216780
Multiples of: 1 | Minimum Order: 1

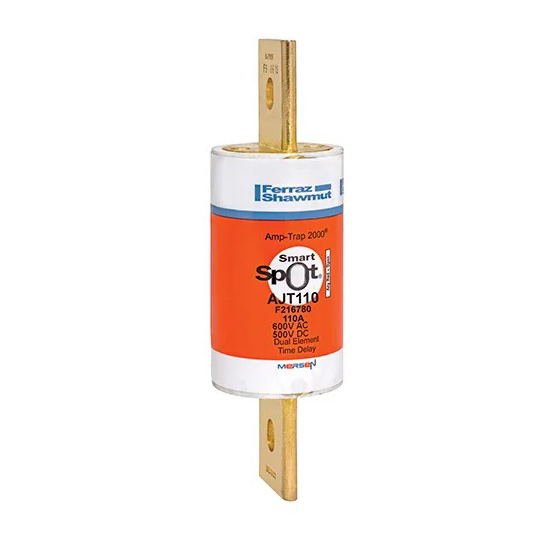

Fuse AJT - Class J - Time-delay 600VAC 500VDC 110A Blade SmartSpot® Amp-Trap 2000®
Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads — yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT’s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.
Technical Specifications
Item number: AJT110
Description: Fuse AJT - Class J - Time-delay 600VAC 500VDC 110A Blade SmartSpot® Amp-Trap 2000®
EAN/UPC Code: 782001962630
Rated voltage AC UL: 600 V
Rated voltage DC UL: 500 V
Frequency (Hz): 50/60 Hz
Ampere Rating: 110 A
ROHS Compliant: Yes
AC or DC: AC/DC
Fuse Class: Class J
Speed/Characteristic: Time Delay
Mounting: Clip or Bolted
AC Max I.R./Breaking Capacity: I1: 200 kA
Indication System: Yes
Indication System Type: SmartSpot®
Connection/Terminal Material: Brass
Connection/Terminal Type: Blade
Product Diameter: 41.3 mm
Product Length: 146 mm
Product group: Low Voltage UL/CSA Fuses
Body/Insulating Material: GMG
Product Weight: 0.3465 kg
Brand |
FERRAZ MERSEN |
|
£204.52
per 1 (ex. VAT)£245.42
per 1 (inc. VAT)
