My Part Number:
Part Number: 121/2K
Manufacturer Code: 1212M16
Multiples of: 1 | Minimum Order: 1

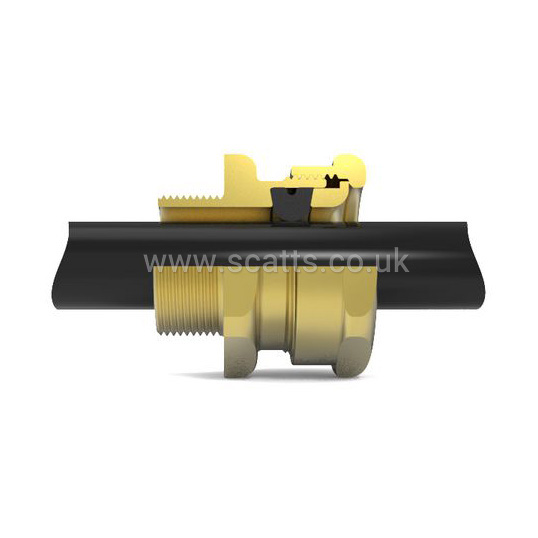

The 121 industrial cable gland is intended for use on non-armoured elastomer and plastic insulated cables in indoor and outdoor applications. This cable gland may be used with braided cables where the braid and outer sheath pass into the enclosure. The braid must then be suitably terminated inside the enclosure.See technical section for installation rules and regulations
Elastomeric Exd flameproof seal on cable inner sheath
Rounded Cable entry to prevent cable damage
Size Reference: 2K
Brand |
HAWKE |
|
Weight |
0.11 kg |
|
IP Rating |
IP66, IP67, IP68 |
|
Body Material |
Brass |
|
Minimum Operating Temperature |
-60 °C, -60 °C |
|
Maximum Operating Temperature |
100 °C |
Maximum Cable Acceptance - Outer |
8.0 mm |
|
Minimum Cable Acceptance - Outer |
3.2 mm |
|
Size Reference |
2K |
|
Thread Size |
M16 |
|
Thread Gender |
Male |
|
Thread Standard |
Metric |
|
Seal Material |
Single Seal |
|
IP68 Rating Method |
30 m for 7 days |
|
£9.86
per 1 (ex. VAT)£11.83
per 1 (inc. VAT)
