My Part Number:
Part Number: 121/B-S
Manufacturer Code: 121BM255
Multiples of: 1 | Minimum Order: 1

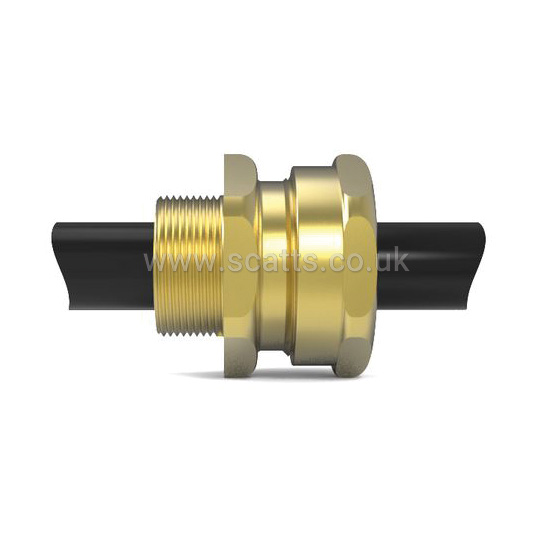

The 121 industrial cable gland is intended for use on non-armoured elastomer and plastic insulated cables in indoor and outdoor applications. This cable gland may be used with braided cables where the braid and outer sheath pass into the enclosure. The braid must then be suitably terminated inside the enclosure.
Brand |
HAWKE |
|
Weight |
0.200 kg |
|
IP Rating |
IP66, IP67, IP68 |
|
Body Material |
Brass |
|
Minimum Operating Temperature |
-60 °C, -60 °C |
|
Maximum Operating Temperature |
100 °C |
Maximum Cable Acceptance - Outer |
15.4 mm |
|
Minimum Cable Acceptance - Outer |
9.5 mm |
|
Size Reference |
B/S |
|
Thread Size |
M25 |
|
Thread Gender |
Male |
|
Thread Standard |
Metric |
|
Seal Material |
Single Seal |
|
IP68 Rating Method |
30 m for 7 days |
|
£17.55
per 1 (ex. VAT)£21.06
per 1 (inc. VAT)The 121 industrial cable gland is intended for use on non-armoured elastomer and plastic insulated cables in indoor and outdoor applications. This cable gland may be used with braided cables where the braid and outer sheath pass into the enclosure. The braid must then be suitably terminated inside the enclosure.
