My Part Number:
Part Number: 153/RAC/0-NEW
Manufacturer Code: 153OM20 / N153RXBOMB1XIAB
Multiples of: 1 | Minimum Order: 1

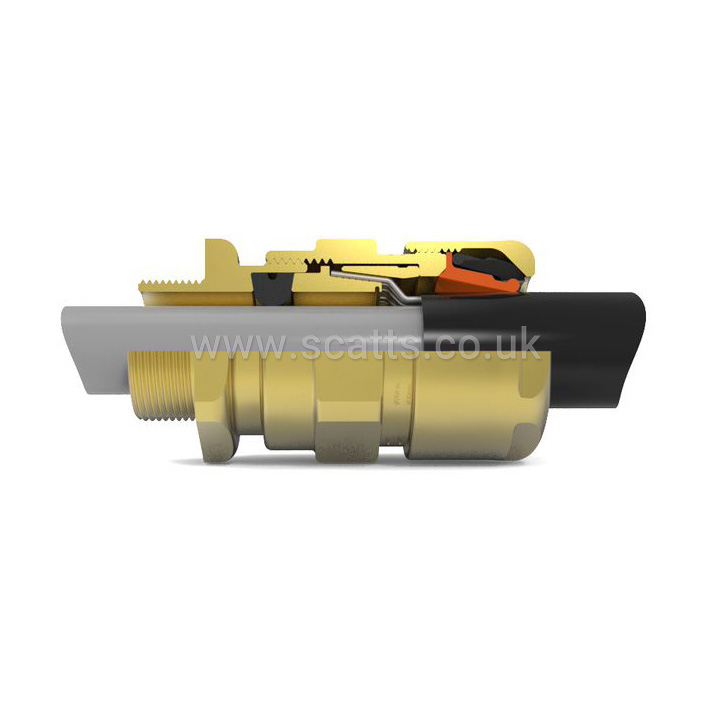

The 153/RAC Cable Gland is an industrial gland for indoor or outdoor use, robust and for use with single wire armour ‘W’, wire braid ‘X’, steel tape armour ‘Z’, elastomer and plastic insulated cables. The gland provides an elastomeric seal on the cable inner sheath, and a low smoke, zero halogen IP and retention seal onto the cable outer sheath.
Elastomeric Exd flameproof seal on cable inner sheath
Reversible Armour Clamp - For all types of armour and braid.
Patented Cable Gland Tightening Guide - Helps prevent damage caused by over tightening
Unique Rear Seal - Offering ultimate sealing over an extremely wide cable acceptance range.
Size Reference: O
Brand |
HAWKE |
|
Weight |
0.180 kg |
|
IP Rating |
IP66, IP67, IP68 |
|
Body Material |
Brass |
|
Minimum Operating Temperature |
-60 °C, -60 °C |
|
Maximum Operating Temperature |
80 °C |
Maximum Cable Acceptance - Inner |
11.9 mm |
|
Maximum Cable Acceptance - Outer |
16.0 mm |
|
Minimum Cable Acceptance - Inner |
6.5 mm |
|
Minimum Cable Acceptance - Outer |
9.5 mm |
|
Size Reference |
OS |
|
Armoured |
STA, SWA, SWB |
|
Thread Size |
M20 |
|
Thread Gender |
Male |
|
Thread Standard |
Metric |
|
IP68 Rating Method |
30 m for 7 days |
|
£18.98
per 1 (ex. VAT)£22.78
per 1 (inc. VAT)
