My Part Number:
Part Number: 153/UNIV/B-NEW
Manufacturer Code: 153UBM25
Multiples of: 1 | Minimum Order: 1

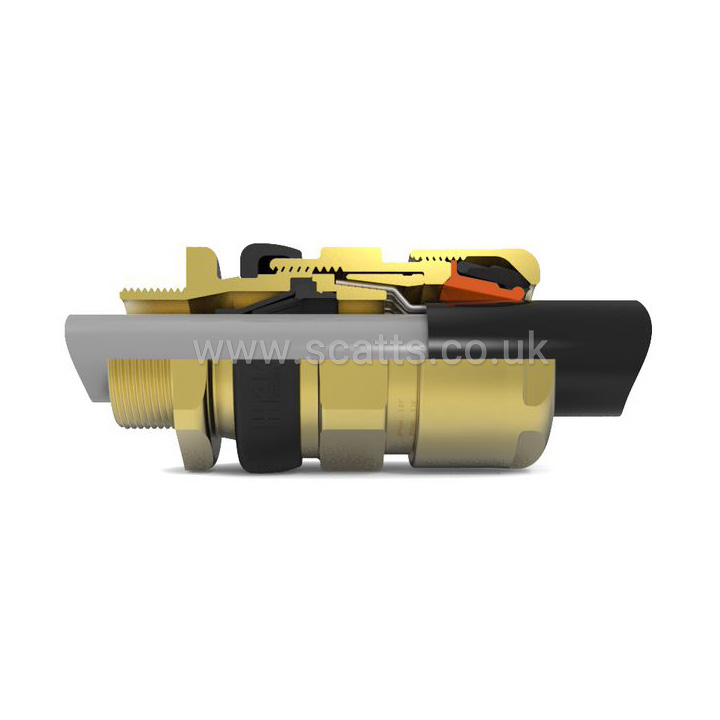

The industrial 153/Universal Cable Gland is robust and for use with single wire armour ‘W’, wire braid ‘X’, steel tape armour ‘Z’, elastomer and plastic insulated cables. For particular use with cables that exhibit 'Cold Flow' characteristics.
Inspectable Deluge Seal - Offering IP66, IP67, IP68 & IP69 Ingress Protection
Passive diaphragm seal - Suitable for cables exhibiting 'Cold Flow.' Fully inspectable
Reversible Armour Clamp - For all types of armour and braid
Patented Cable Gland Tightening Guide - Helps prevent damage caused by over tightening
Unique Rear Seal - Offering ultimate sealing over an extremely wide cable acceptance range.
Size Reference: B
Brand |
HAWKE |
|
Weight |
0.33 kg |
|
IP Rating |
IP66, IP67, IP68 |
|
Body Material |
Brass |
|
Minimum Operating Temperature |
-60 °C, -60 °C |
|
Maximum Operating Temperature |
80 °C |
Maximum Cable Acceptance - Inner |
19.7 mm |
|
Maximum Cable Acceptance - Outer |
26.0 mm |
|
Minimum Cable Acceptance - Inner |
11.1 mm |
|
Minimum Cable Acceptance - Outer |
16.9 mm |
|
Size Reference |
B |
|
Armoured |
STA, SWA, SWB |
|
Thread Size |
M25 |
|
Thread Gender |
Male |
|
Thread Standard |
Metric |
|
IP68 Rating Method |
30 m for 7 days |
|
£33.85
per 1 (ex. VAT)£40.62
per 1 (inc. VAT)
The industrial 153/Universal Cable Gland is robust and for use with single wire armour ‘W’, wire braid ‘X’, steel tape armour ‘Z’, elastomer and plastic insulated cables. For particular use with cables that exhibit 'Cold Flow' characteristics.
Inspectable Deluge Seal - Offering IP66, IP67, IP68 & IP69 Ingress Protection
Passive diaphragm seal - Suitable for cables exhibiting 'Cold Flow.' Fully inspectable
Reversible Armour Clamp - For all types of armour and braid
Patented Cable Gland Tightening Guide - Helps prevent damage caused by over tightening
Unique Rear Seal - Offering ultimate sealing over an extremely wide cable acceptance range.
Size Reference: B
Brand |
HAWKE |
|
Weight |
0.33 kg |
|
IP Rating |
IP66, IP67, IP68 |
|
Body Material |
Brass |
|
Minimum Operating Temperature |
-60 °C, -60 °C |
|
Maximum Operating Temperature |
80 °C |
Maximum Cable Acceptance - Inner |
19.7 mm |
|
Maximum Cable Acceptance - Outer |
26.0 mm |
|
Minimum Cable Acceptance - Inner |
11.1 mm |
|
Minimum Cable Acceptance - Outer |
16.9 mm |
|
Size Reference |
B |
|
Armoured |
STA, SWA, SWB |
|
Thread Size |
M25 |
|
Thread Gender |
Male |
|
Thread Standard |
Metric |
|
IP68 Rating Method |
30 m for 7 days |
|
