My Part Number:
Part Number: 501/423/0S
Manufacturer Code: 423SM20
Multiples of: 1 | Minimum Order: 1

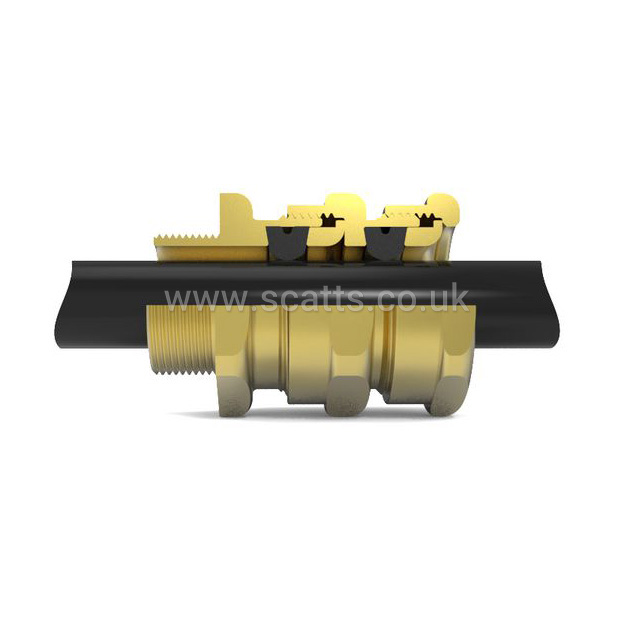

The 501/423 dual certified Exe/Exd cable gland incorporates two independent seals and is intended for use on non-armoured elastomer and plastic insulated cables. This cable gland may be used with braided cables where the braid and outer sheath pass into the enclosure. For Exd application the cable must be suitable inline with 60079-14. The braid must then be suitably terminated inside the enclosure. The two seals provide superior cable retention over standard unarmoured cable glands
Two Independent Elastomeric Exd flameproof seals on cable inner sheath – The double seals provide superior cable retention over standard unarmoured Cable Glands
Rounded Cable entry to prevent cable damage
Size Reference: OS
Brand |
HAWKE |
|
Weight |
0.11 kg |
|
IP Rating |
IP66, IP67, IP68 |
|
Body Material |
Brass |
|
Minimum Operating Temperature |
-60 °C, -60 °C |
|
Maximum Operating Temperature |
100 °C |
ATEX Approval - Dust |
Ex tb IIIC Db |
|
ATEX Approval - Gas |
Ex db IIC Gb, Ex eb IIC Gb |
|
Hazadrous Area Certification |
1, 2, 21, 22 |
|
Approvals |
ATEX, EAC, IECEx |
ATEX Certificate Number |
CML 19.0045X, CML 19ATEX1167X, CSA1015065 |
|
CableType |
Elastomer, Plastic |
|
Maximum Cable Acceptance - Outer |
8.0 mm |
|
Minimum Cable Acceptance - Outer |
3.2 mm |
|
Size Reference |
0S |
|
Thread Size |
M20 |
|
Thread Gender |
Male |
|
Thread Standard |
Metric |
|
Seal Material |
Double Seal |
|
IP68 Rating Method |
30 m for 7 days |
|
£19.31
per 1 (ex. VAT)£23.17
per 1 (inc. VAT)
