My Part Number:
Part Number: 501/453/RAC/C-NEW
Manufacturer Code: 453RCM32
Multiples of: 1 | Minimum Order: 1

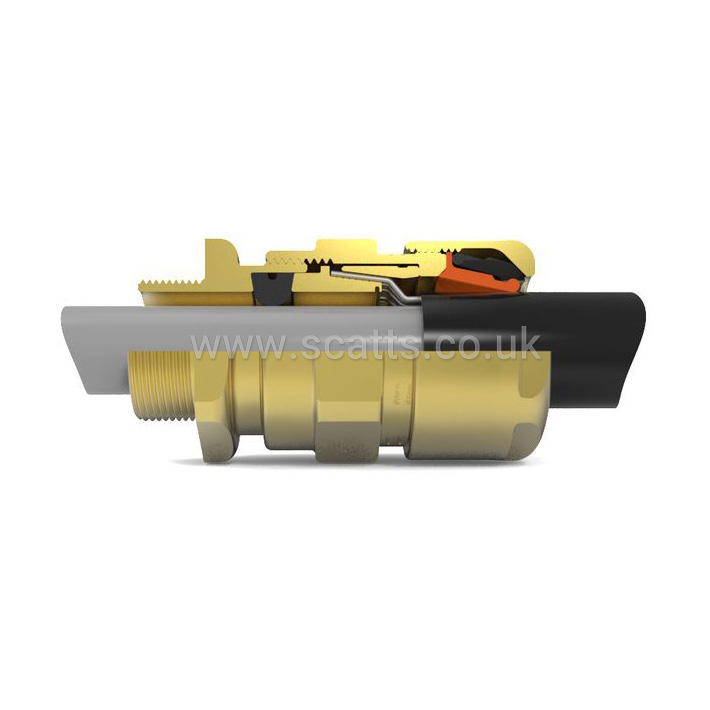

SERIES 501/453, EX CABLE GLAND - RAC, ARMOURED CABLE, BRASS, M32, SIZE C FOR ZONES 1, 2, 21 & 22
Brand |
HAWKE |
|
Weight |
0.65 kg |
|
IP Rating |
IP66, IP67, IP68 |
|
Body Material |
Brass |
|
Minimum Operating Temperature |
-60 °C, -60 °C |
|
Maximum Operating Temperature |
100 °C |
ATEX Approval - Dust |
Ex tb IIIC Db |
|
ATEX Approval - Gas |
Ex db IIC Gb, Ex eb IIC Gb |
|
Hazadrous Area Certification |
1, 2, 21, 22 |
|
Approvals |
ATEX, EAC, IECEx |
ATEX Certificate Number |
CML 18.0131X, CML 18ATEX1268X, CSA1015065 |
|
CableType |
Elastomer, Plastic |
|
Maximum Cable Acceptance - Inner |
26.5 mm |
|
Maximum Cable Acceptance - Outer |
33.0 mm |
|
Minimum Cable Acceptance - Inner |
19.5 mm |
|
Minimum Cable Acceptance - Outer |
22.0 mm |
|
Size Reference |
C |
|
Armoured |
STA, SWA, SWB |
|
Thread Size |
M32 |
|
Thread Gender |
Male |
|
Thread Standard |
Metric |
|
IP68 Rating Method |
30 m for 7 days |
|
£75.25
per 1 (ex. VAT)£90.30
per 1 (inc. VAT)SERIES 501/453, EX CABLE GLAND - RAC, ARMOURED CABLE, BRASS, M32, SIZE C FOR ZONES 1, 2, 21 & 22
