My Part Number:
Part Number: 501/453/RAC/L/B-NEW
Manufacturer Code: 453RBM25L
Multiples of: 1 | Minimum Order: 1

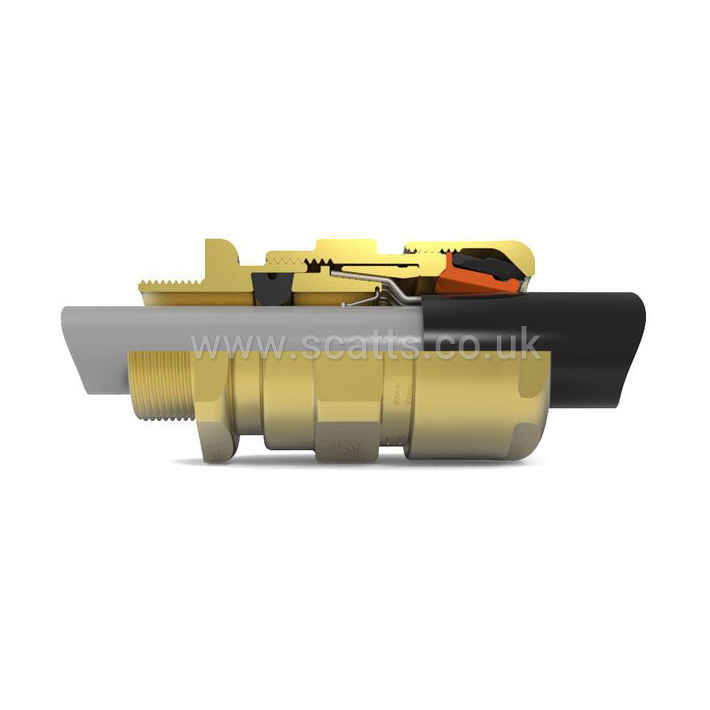

The 501/453/RAC/L Cable Gland is dual certified Exe/Exd, robust and for use with single wire armour ‘W’, wire braid ‘X’, steel tape armour ‘Z’, elastomer and plastic insulated cables with lead covered inner sheaths. The gland provides an elastomeric seal on the cable inner sheath, continuity to the lead sheath and a low smoke, zero halogen IP and retention seal onto the cable outer sheath.
Elastomeric Exd flameproof seal on cable inner sheath
Electrical Bond on the cables lead inner sheath
Provides a Reversible Armour Clamp - For all types of armour and braid. retention and low smoke and fume, zero halogen seal onto the cables outer sheath
Patented Cable Gland Tightening Guide - Helps prevent damage caused by over tightening
Unique Rear Seal - Offering ultimate sealing over an extremely wide cable acceptance range
Size Reference: B
Brand |
HAWKE |
|
Weight |
0.39 kg |
|
IP Rating |
IP66, IP67, IP68 |
|
Body Material |
Brass |
|
Minimum Operating Temperature |
-60 °C, -60 °C |
|
Maximum Operating Temperature |
100 °C |
ATEX Approval - Dust |
Ex tb IIIC Db |
|
ATEX Approval - Gas |
Ex db IIC Gb, Ex eb IIC Gb |
|
Hazadrous Area Certification |
1, 2, 21, 22 |
|
Approvals |
ATEX, EAC, IECEx |
ATEX Certificate Number |
CML 18.0131X, CML 18ATEX1268X, CSA1015065 |
|
CableType |
Elastomer, Lead Inner Sheath, Plastic |
|
Maximum Cable Acceptance - Inner |
18.0 mm |
|
Maximum Cable Acceptance - Outer |
26.0 mm |
|
Minimum Cable Acceptance - Inner |
13.0 mm |
|
Minimum Cable Acceptance - Outer |
16.9 mm |
|
Size Reference |
B |
|
Armoured |
STA, SWA, SWB |
|
Thread Size |
M25 |
|
Thread Gender |
Male |
|
Thread Standard |
Metric |
|
IP68 Rating Method |
30 m for 7 days |
|
£50.39
per 1 (ex. VAT)£60.47
per 1 (inc. VAT)
