My Part Number:
Part Number: NP501/421/0
Manufacturer Code: 421OM20NP
Multiples of: 1 | Minimum Order: 1

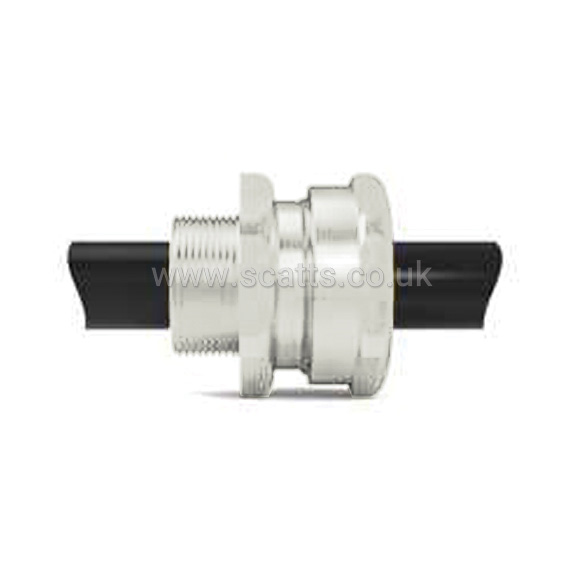

Nickel Plated Brass M20 Single Seal Gland
The 501/421 dual certified Exe/Exd cable gland is intended for use on non-armoured elastomer and plastic insulated cables. This cable gland may be used with braided cables where the braid and outer sheath pass into the enclosure. For Exd application the cable must be suitable inline with 60079-14. The braid must then be suitably terminated inside the enclosure.
Brand |
HAWKE |
|
Weight |
0.11 kg |
|
IP Rating |
IP66, IP67, IP68 |
|
Body Material |
Brass |
|
Minimum Operating Temperature |
-60 °C, -60 °C |
|
Maximum Operating Temperature |
100 °C |
ATEX Approval - Dust |
Ex tb IIIC Db |
|
ATEX Approval - Gas |
Ex db IIC Gb, Ex eb IIC Gb |
|
Hazadrous Area Certification |
1, 2, 21, 22 |
|
Approvals |
ATEX, EAC, IECEx |
ATEX Certificate Number |
CML 19.0045X, CML 19ATEX1167X, CSA1015065 |
|
CableType |
Elastomer, Plastic |
|
Maximum Cable Acceptance - Outer |
11.9 mm |
|
Minimum Cable Acceptance - Outer |
6.5 mm |
|
Size Reference |
0 |
|
Thread Size |
M20 |
|
Thread Gender |
Male |
|
Thread Standard |
Metric |
|
Seal Material |
Single Seal |
|
IP68 Rating Method |
30 m for 7 days |
|
£11.09
per 1 (ex. VAT)£13.31
per 1 (inc. VAT)
