My Part Number:
Part Number: NP501/453/UNIV/C2NEW
Manufacturer Code: 453UYM40NP
Multiples of: 1 | Minimum Order: 1

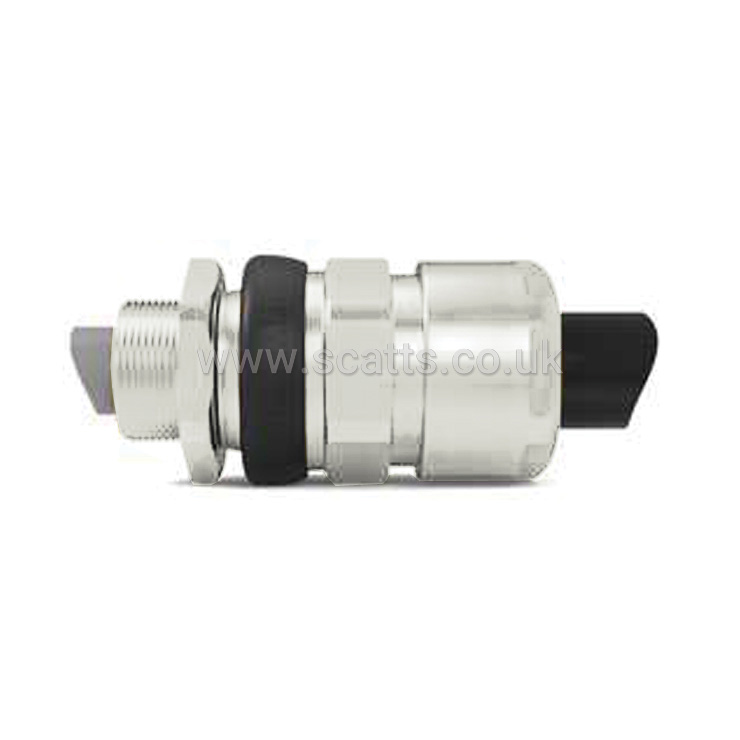

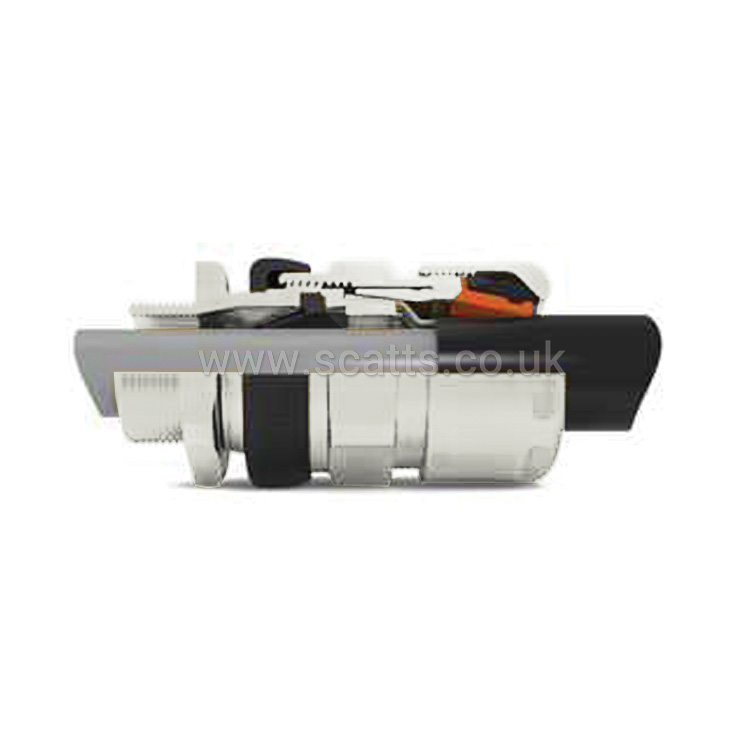

Nickel Plated Brass M40 EXD/EXE UNIV Gland
The 501/453 Universal Cable Gland is dual certified Exe/Exd, robust and for use with single wire armour ‘W’, wire braid ‘X’, steel tape armour ‘Z’, elastomer and plastic insulated cables. For particular use with cables that exhibit 'Cold Flow' characteristics.
• Inspectable Deluge Seal - Offering IP66, IP67, IP68 & IP69 Ingress Protection
• Passive diaphragm seal - Suitable for cables exhibiting 'Cold Flow.' Fully inspectable
• Reversible Armour Clamp - For all types of armour and braid
• Patented Cable Gland Tightening Guide - Helps prevent damage caused by over tightening
• Unique Rear Seal - Offering ultimate sealing over an extremely wide cable acceptance range
Brand |
HAWKE |
|
Weight |
0.8 kg |
|
IP Rating |
IP66, IP67, IP68 |
|
Body Material |
Nickel Plated Brass |
|
Minimum Operating Temperature |
-60 °C, -60 °C |
|
Maximum Operating Temperature |
80 °C |
ATEX Approval - Dust |
Ex tb IIIC Db |
|
ATEX Approval - Gas |
Ex db IIC Gb, Ex eb IIC Gb |
|
Hazadrous Area Certification |
1, 2, 21, 22 |
|
Approvals |
ATEX, EAC, IECEx |
ATEX Certificate Number |
CML 18.0131X, CML 18ATEX1268X, CSA1015065 |
|
CableType |
Cold Flow, Elastomer, Plastic |
|
Maximum Cable Acceptance - Inner |
32.5 mm |
|
Maximum Cable Acceptance - Outer |
41.0 mm |
|
Minimum Cable Acceptance - Inner |
23.1 mm |
|
Minimum Cable Acceptance - Outer |
28 mm |
|
Size Reference |
C2 |
|
Armoured |
STA, SWA, SWB |
|
Thread Size |
M40 |
|
Thread Gender |
Male |
|
Thread Standard |
Metric |
|
IP68 Rating Method |
30 m for 7 days |
|
£137.55
per 1 (ex. VAT)£165.06
per 1 (inc. VAT)
