My Part Number:
Part Number: PL612/3006/M20
Multiples of: 1 | Minimum Order: 1

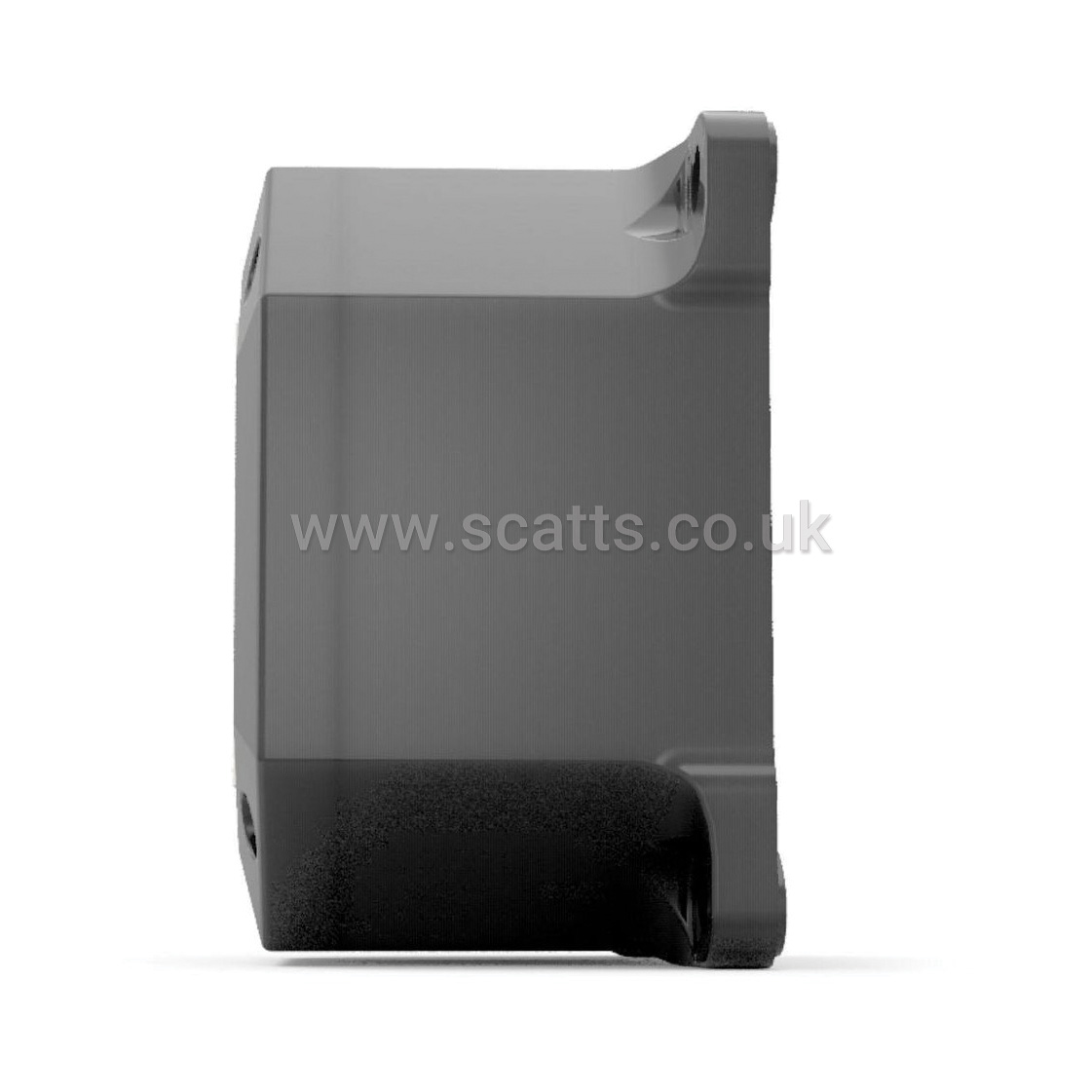

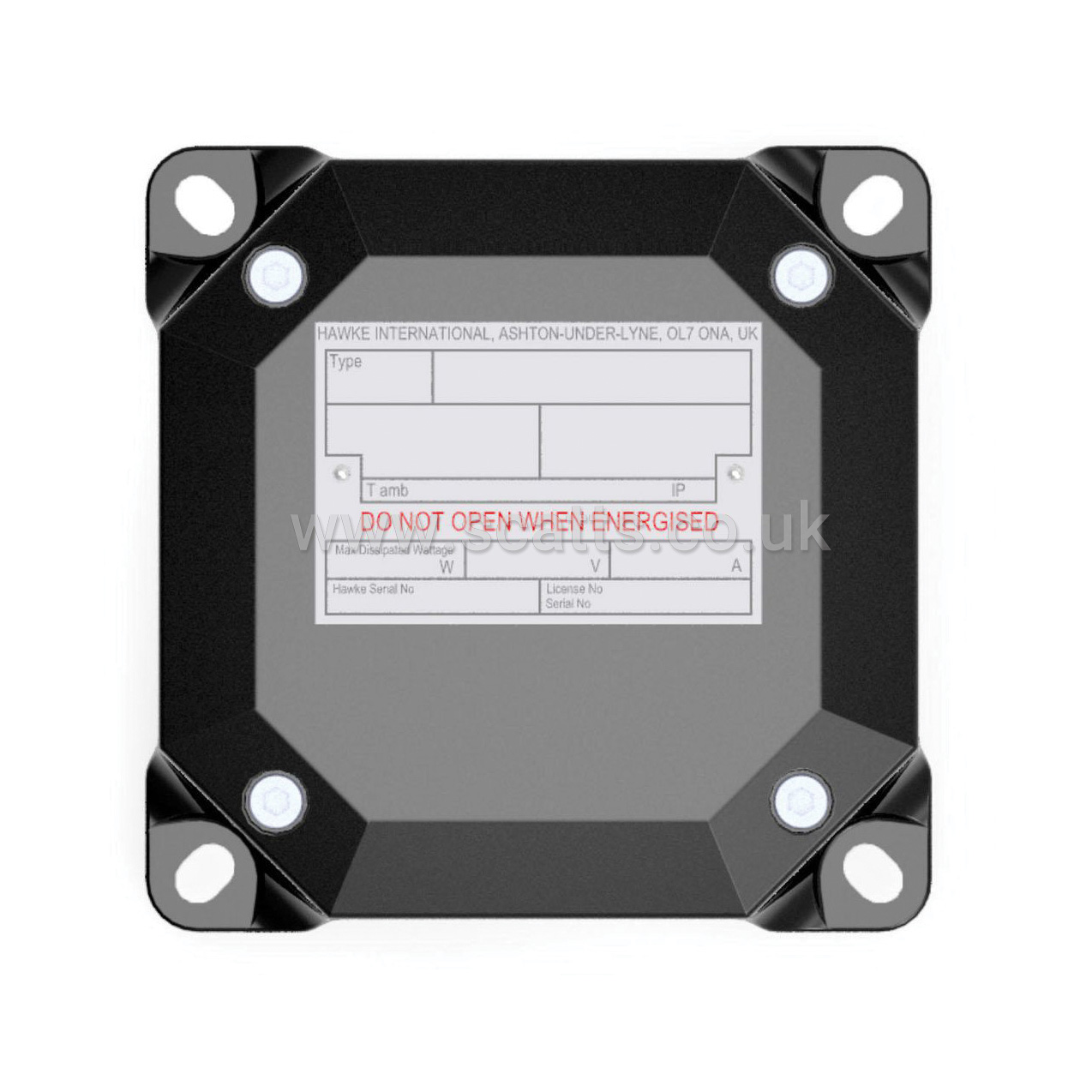

PL612 Enclosure
Offering the ultimate in robust GRP construction the, globally certified, PL612 can withstand impact resistance of up to 20Nm. Ideal for use in Zones 1 and 21, the PL612 offers easy installation, superior corrosion resistance and excellent Ingress Protection.
• The Ultimate in Robust GRP Construction designed to withstand impact resistance up to 20Nm
• GRP construction provides a high degree of resistance to corrosive atmospheres
• Anti-Static Properties Removes the risk of ignition sources through static induced sparking resistivity
• Globally Certified
• Insulation resistance less than 1GΩ
• External Mounting feet for easier installation
Brand |
HAWKE |
|
Width |
120 mm, 120 mm |
|
Depth |
74 mm |
|
IP Rating |
IP66 |
|
Body Material |
GRP |
|
Minimum Operating Temperature |
-50 °C, -50 °C |
|
Maximum Operating Temperature |
40 °C |
ATEX Approval - Dust |
Ex tb IIIC T80° Db |
|
ATEX Approval - Gas |
Ex eb IIC T6 Gb |
|
Hazadrous Area Certification |
1, 2, 21, 22 |
|
Approvals |
ATEX, IECEx |
ATEX Certificate Number |
Baseefa06ATEX0117X, IECEx BAS 06.0028X |
|
Cable Entry Method |
Internal ECP |
|
Cable Entry Positions |
1 x M20 Bottom, 1 x M20 Left, 1 x M20 Right, 1 x M20 Top |
|
Maximum Terminal Voltage |
690 V |
|
Number Of Earth Terminals |
1 |
|
Number Of Terminals |
9 |
|
Current Rating |
17 A |
|
Colour |
Black |
|
Cable Entries |
4 x M20 |
|
Maximum Conductor Size |
2.5 mm² |
|
£62.32
per 1 (ex. VAT)£74.78
per 1 (inc. VAT)
