My Part Number:
Part Number: PL712/SJ9
Multiples of: 1 | Minimum Order: 1

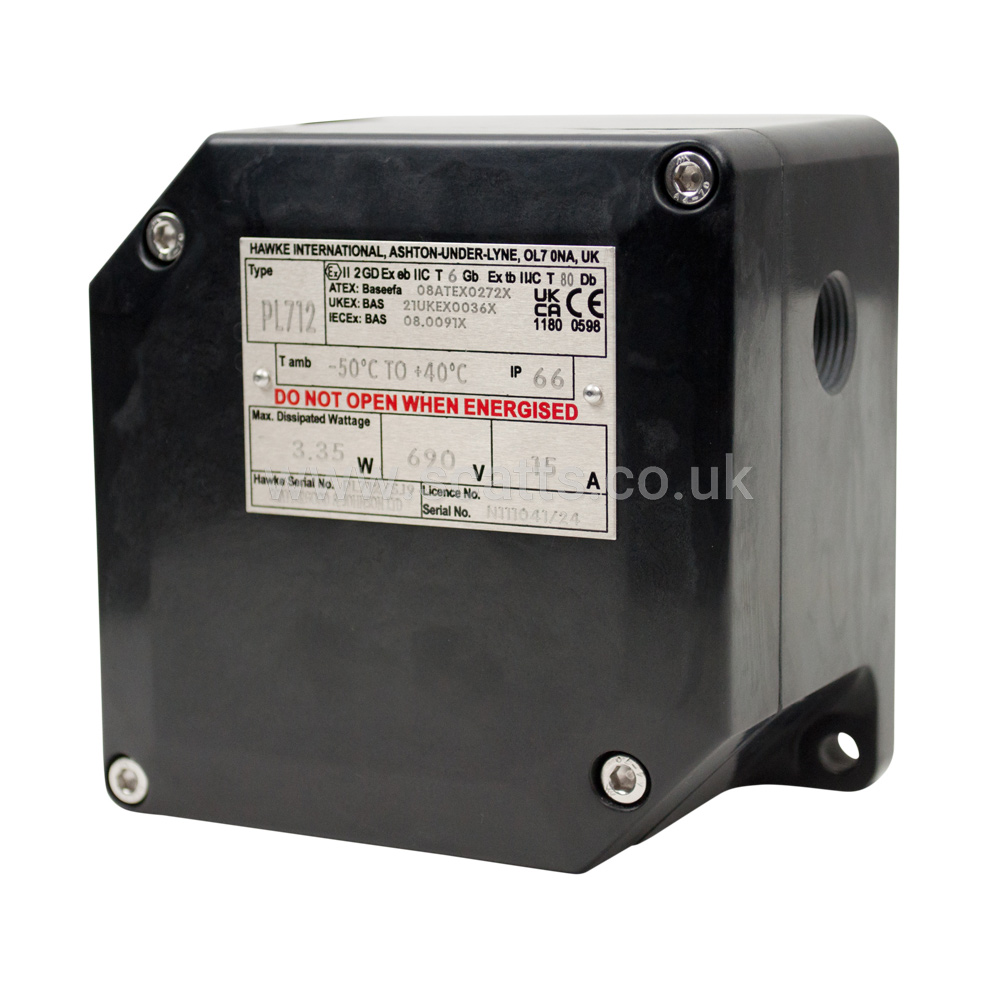

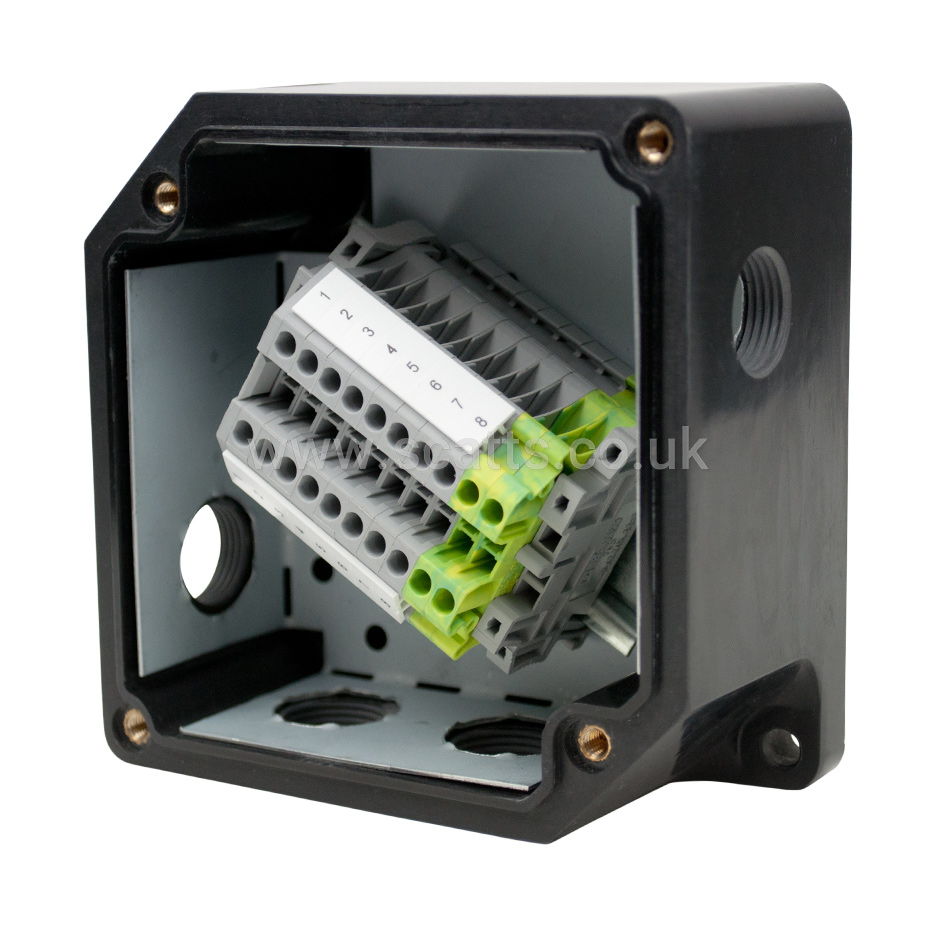

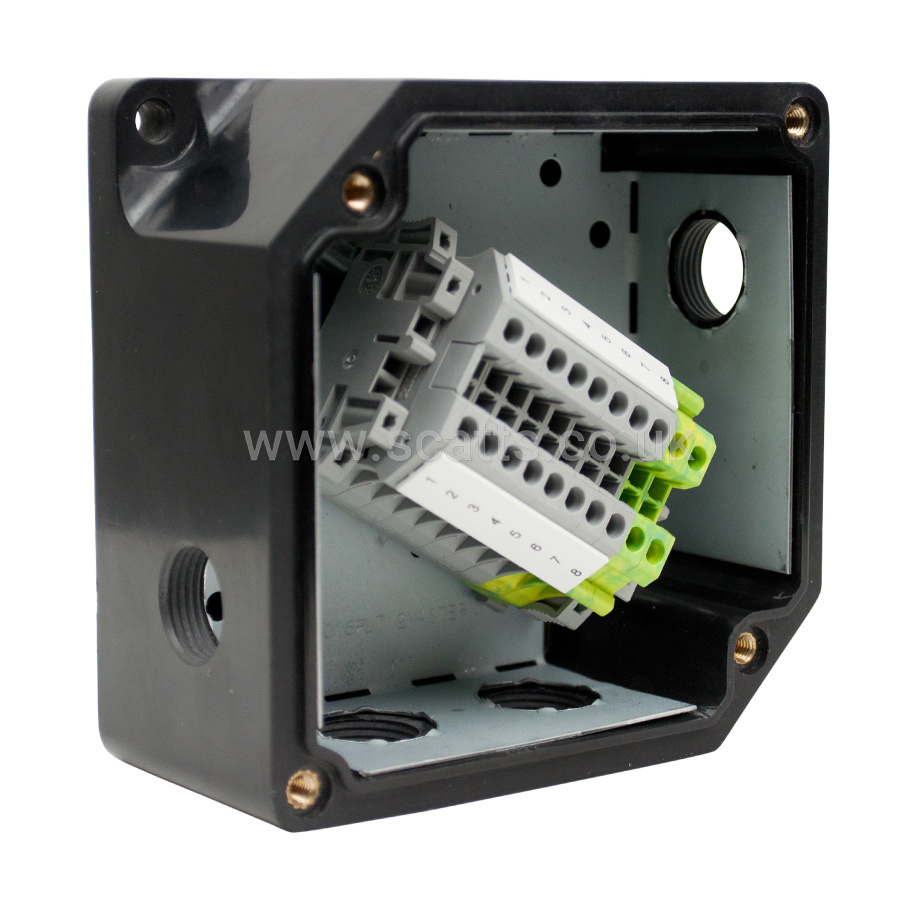

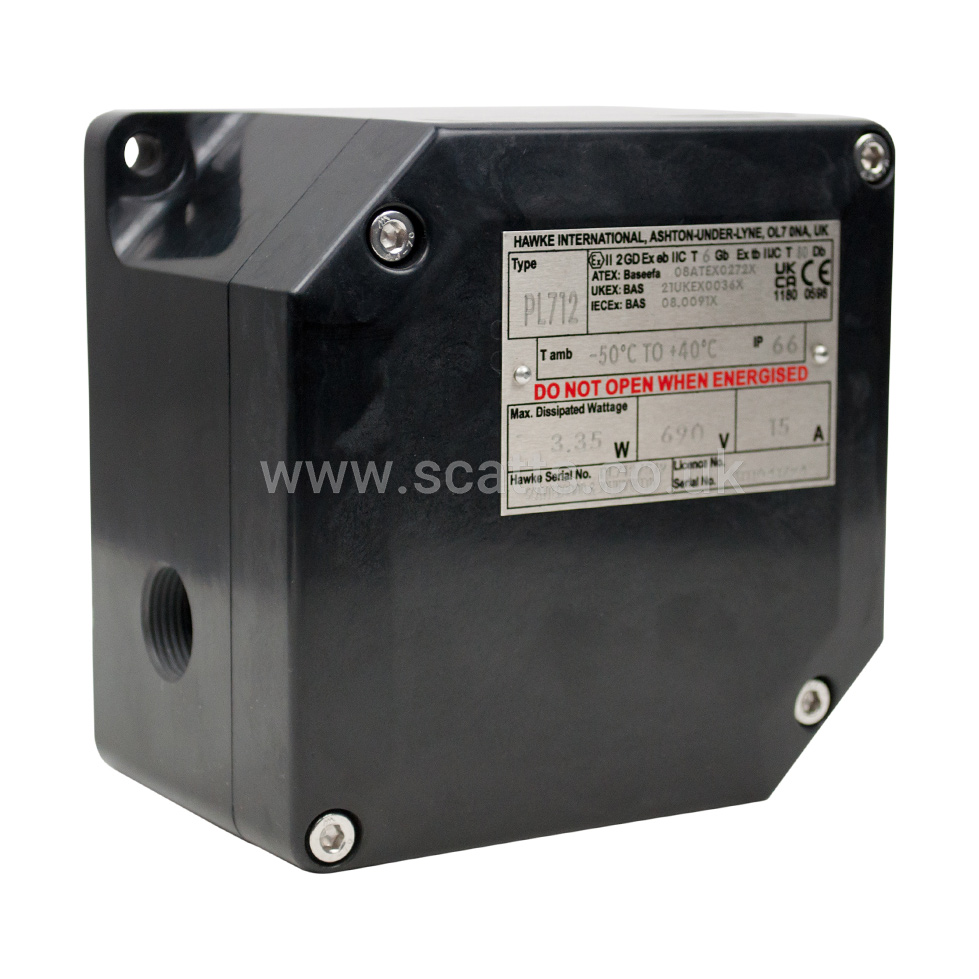

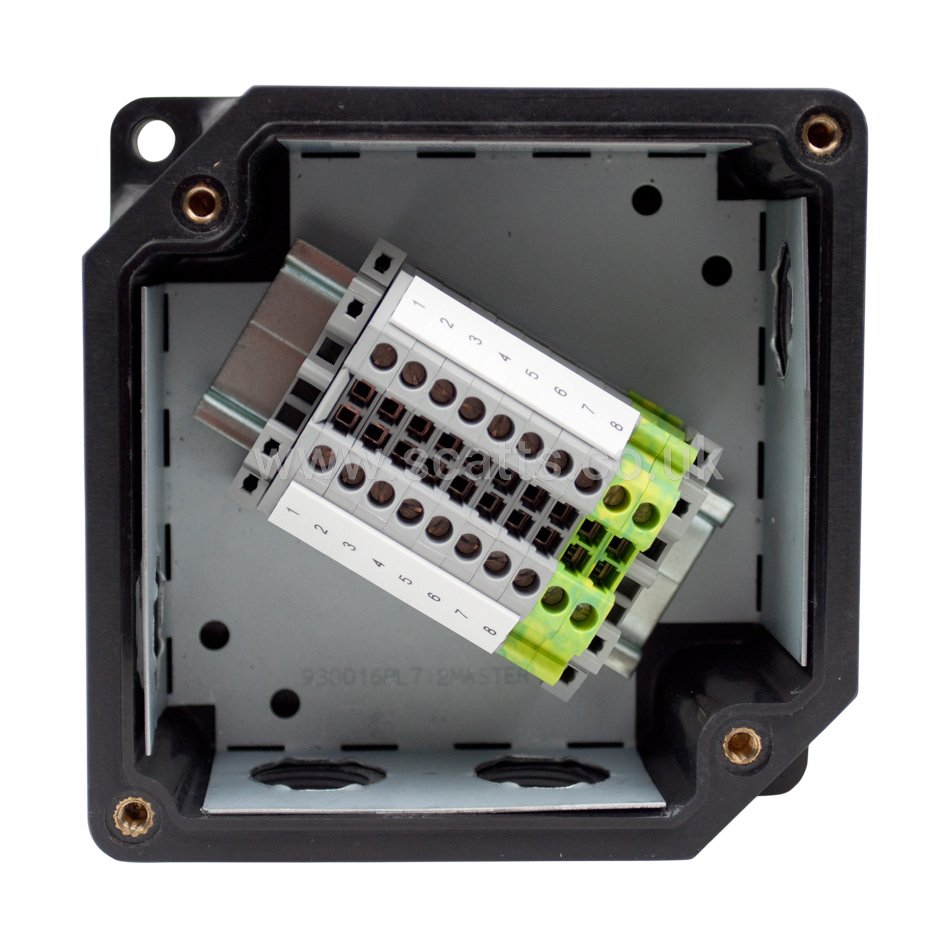

SERIES PL, PL712 EX TERMINAL BOX - 8 X UT 2.5 + 2PE, 690V, 15A FOR ZONES 1, 2, 21 & 22
Brand |
HAWKE |
|
Width |
120 mm, 120 mm |
|
Depth |
84 mm |
|
IP Rating |
IP66 |
|
Body Material |
GRP |
|
Minimum Operating Temperature |
-50 °C, -50 °C |
|
Maximum Operating Temperature |
40 °C |
ATEX Approval - Dust |
Ex tb IIIC T80° Db |
|
ATEX Approval - Gas |
Ex eb IIC T6 Gb |
|
Hazadrous Area Certification |
1, 2, 21, 22 |
|
Approvals |
ATEX, IECEx |
ATEX Certificate Number |
Baseefa08ATEX0272X, IECEx BAS 08.0091X |
|
Cable Entry Method |
Internal ECP |
|
Cable Entry Positions |
1 x M20 Left, 1 x M20 Right, 2 x M20 Bottom |
|
Maximum Terminal Voltage |
690 V |
|
Number Of Earth Terminals |
2 |
|
Number Of Terminals |
8 |
|
Current Rating |
15 A |
|
Colour |
Black |
|
Cable Entries |
4 x M20 |
|
Maximum Conductor Size |
2.5 mm² |
|
£82.79
per 1 (ex. VAT)£99.35
per 1 (inc. VAT)SERIES PL, PL712 EX TERMINAL BOX - 8 X UT 2.5 + 2PE, 690V, 15A FOR ZONES 1, 2, 21 & 22
