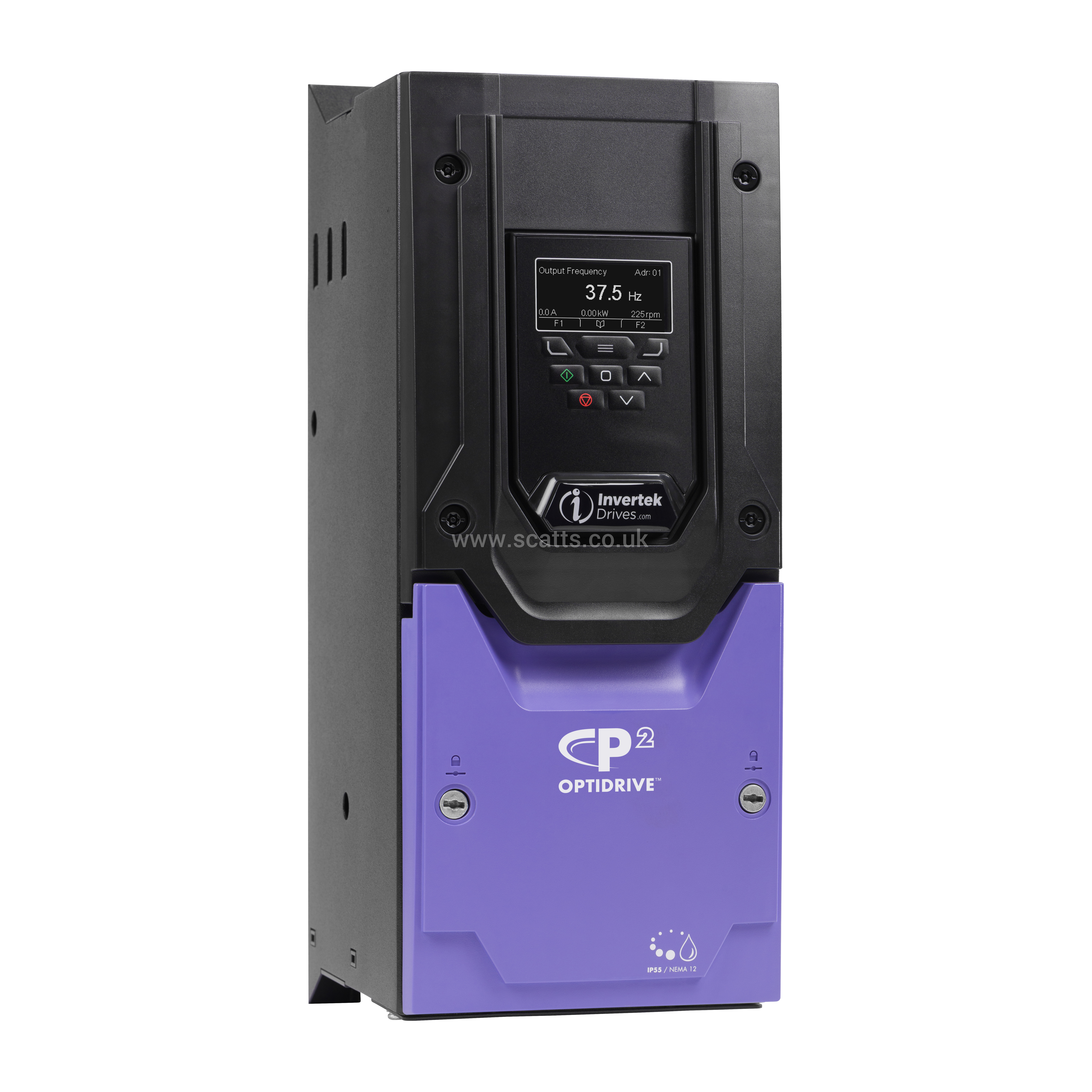

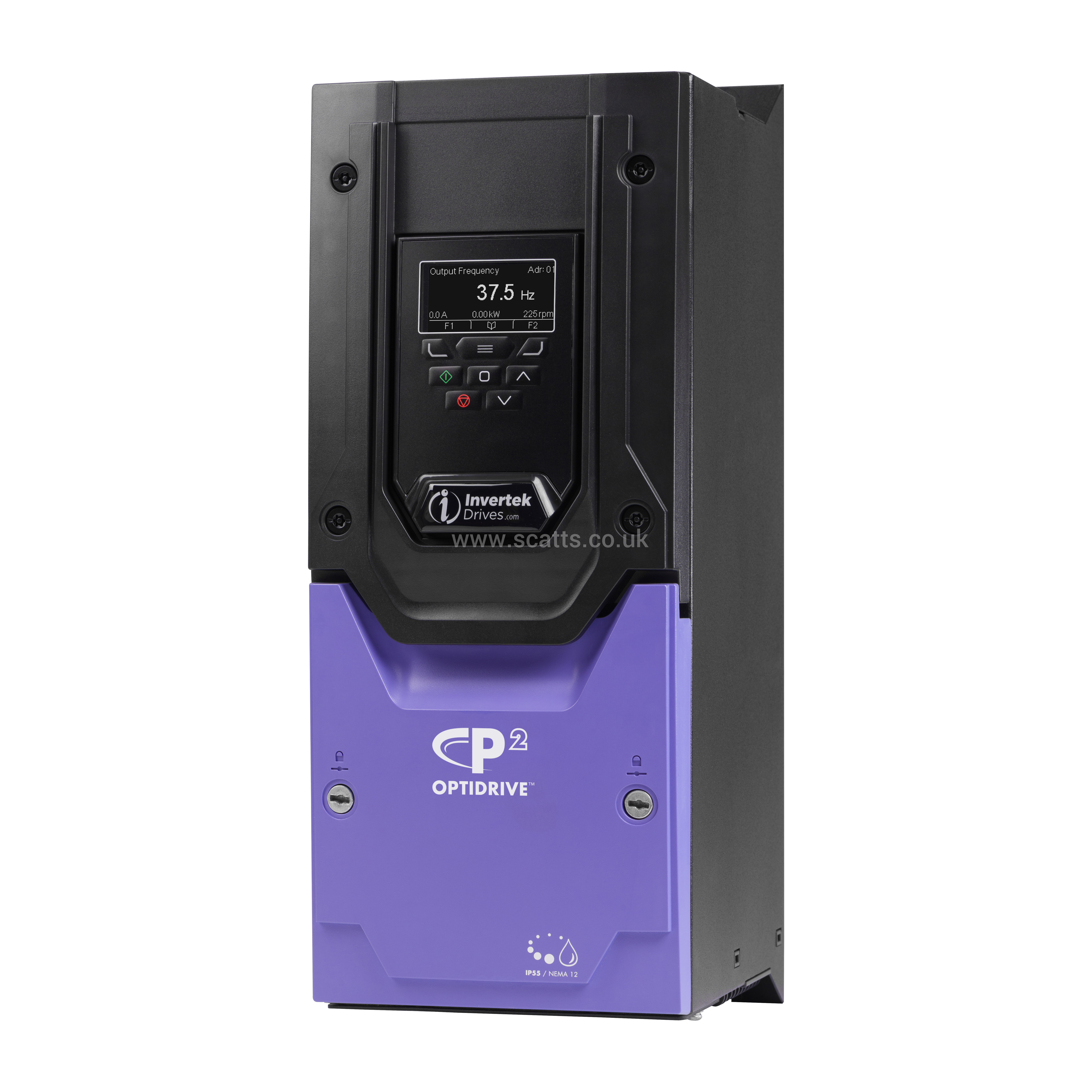

7.5KW 30A IP55 200V 3-3PH VSD

7.5 kW, 30 A, 200-240 V, 3PH
IP55 Variable Frequency Drive with EMC Filter and TFT Display


Input Ratings
Supply Voltage: 200-240 V
Input Phases: 3
Supply Current Continuous: 36.4 A
Supply Fuse or MCB (Type B): 50 A

Output Ratings
Motor Output Rating: 7.5 kW (10 HP)
Output Voltage: 0 – Supply Voltage
Output Current: 30 A

Cable Information
Max Supply Cable Size: 16 mm² (0.02 sq in)
Max Motor Cable Size: 16 mm² (0.02 sq in)
Max Motor Cable Length: 100 m (328 ft)

Factory Build Options
EMC Filter: Internal EMC
Brake Transistor: Internal
Enclosure: IP55
Display: TFT Display
PCB Coating: Standard

Drive Dimensions
Size: 4
Height: 450 mm (17.72 in)
Width: 171 mm (6.73 in)
Depth: 252 mm (9.92 in)
Weight: 11.5 kg (25.35 lbs)
Fixings: 4 x M8
