My Part Number:
Part Number: DUK-11-GBH-C3T0-0
Multiples of: 1 | Minimum Order: 1

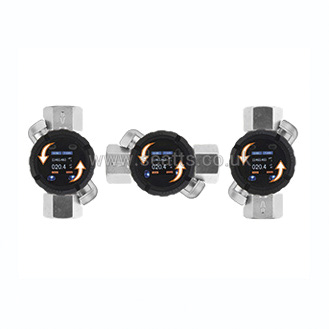

Ultrasonic Flow Meter with IO-Link - Inline - DUK
Ultrasonic flowmeter combines temperature-compensated measurement for various media with IO-Link.
A PC interface enables measurement of media-specific volume flows even at changing temperatures.
Whether in the pharmaceutical industry, water treatment or food production: If non-conductive media flow in a chemical process, ultrasonic flow meters are usually installed for monitoring. For monitoring, the measuring devices require short response times and a high degree of calibration freedom, otherwise incorrect metering or insufficient repeat accuracy will occur. The maintenance-free ultrasonic flowmeter type DUK with the newly developed C3T0 compact electronics from KOBOLD Messring GmbH provides a remedy here. Due to the extensive possibilities for on-site programming, the DUK is suitable for cross-industry use for diverse media.
Brand |
KOBOLD INSTRUMENTS |
|
Display Type |
TFT |
|
Electrical Connection |
M12 x 1 |
|
IP Rating |
IP67 |
|
Body Material |
Brass |
|
Supply Voltage |
24 V DC |
|
Communication Protocol |
IO Link |
|
Acceptable Media |
Liquid |
|
Wetted Parts |
Brass |
|
Seal Material |
NBR |
|
Measuring Principle |
Ultrasonic |
|
Process Connection |
G3" Female |
|
Minimum Sensing Range |
2.5 l/min |
|
Maximum Sensing Range |
630 l/min |
|
Output Signal |
1 x 4-20 mA/0-10 V |
|
Additional Features |
Dosing Function |
|
Maximum Ambient Temperature |
70 °C |
|
Maximum Pressure |
16 bar |
|
Maximum Media Temperature |
90 °C |
|
Alarm Outputs |
1 x NPN/PNP/Push-Pull |
|
£1,194.00
per 1 (ex. VAT)£1,432.80
per 1 (inc. VAT)
