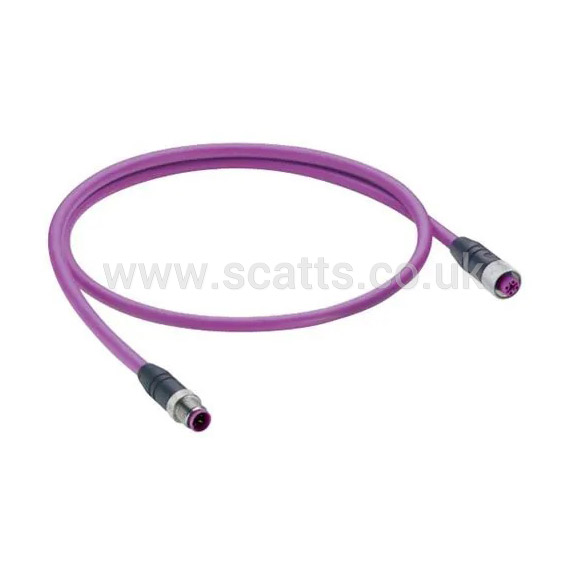

M12F-B STR. 5P PURPLE LEAD 2M

A 5-pin M12 B-coded PUR violet cordset used primarily for industrial PROFIBUS data transmission. It is built for harsh environments and reliably connects field-level sensors and network components to control cabinets.

Core Technical Specifications:
• Connector Type: M12 Standard, straight, female, 5-pole
• Coding / Standard: B-coded (designed for PROFIBUS networks)
• Cable Length: 2 meters (6.56 feet)
• Cable Material: PUR (Polyurethane) jacket, violet (RAL 4001)
• Conductors: 2-wire, shielded
• Operating Voltage: 50V AC / 60V DC
• Rated Current: 4A
• IP Rating: IP65, IP67 (dust-tight and water-resistant when mated)
• Operating Temperature: -25°C to +80°C

Key Features:
• Industrial Hardening: Designed specifically to resist oils, grease, and chemicals commonly found in automated manufacturing and food and beverage applications.
• High Shielding: Shielded design protects the integrity of data and network signals from electromagnetic (EMI) and radio frequency (RFI) interference.
• Reliability: Engineered to withstand vibration, mechanical shock, and up to 100 mating cycles.
